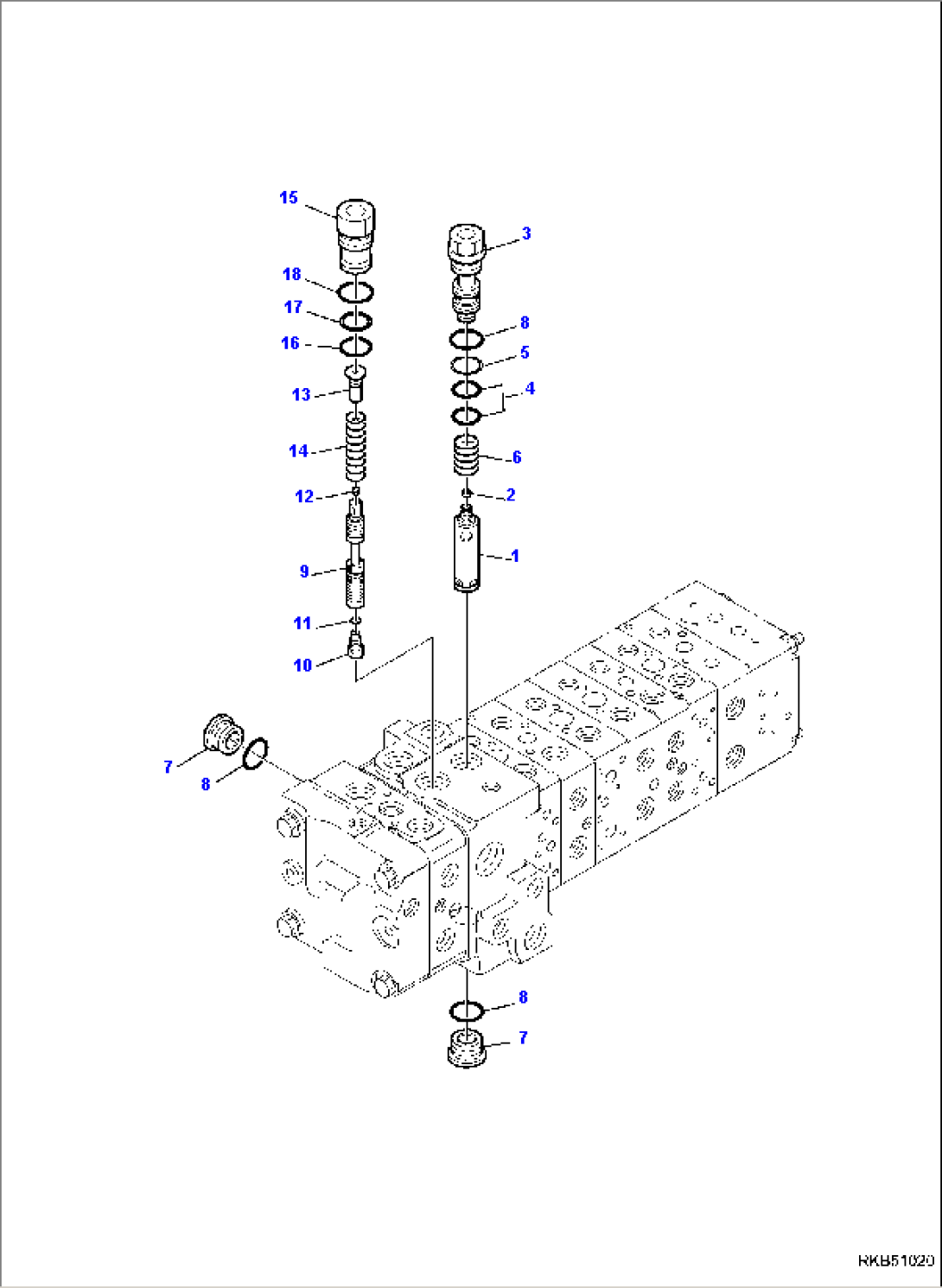

Item | Part No. | Part Name | Qty | Serial No. |
\0.96 | (723-1A-15605) | CONTROL VALVE, ASSEMBLY | F80211-F80275 | |
\0.97 | (723-1A-15606) | CONTROL VALVE, ASSEMBLY | F80276-F80506 | |
\0.98 | (723-1A-15607) | CONTROL VALVE, ASSEMBLY | F80507-F80516 | |
\0.99 | (723-1B-11200) | CONTROL VALVE, ASSEMBLY | F80517- | |
1 | \6\ | SPOOL | F80211- | |
2 | \6\ | GASKET | F80211- | |
3 | 723-11-25331 | SLEEVE | F80211- | |
4 | 723-11-18150 | O-RING | F80211- | |
5 | 723-11-18160 | RING | F80211- | |
6 | 723-11-28862 | SPRING | F80211- | |
7 | 723-11-15230 | PLUG | F80211- | |
8 | 07002-12434 | O-RING | F80211- | |
9 | \6\ | SPOOL | F80211- | |
10 | \6\ | PLUG | F80211- | |
11 | \6\ | O-RING | F80211- | |
12 | \6\ | PLUG | F80211- | |
13 | 723-11-28880 | RETAINER | F80211- | |
14 | 723-11-28890 | SPRING | F80211- | |
15 | 723-11-25340 | SLEEVE | F80211- | |
16 | 07000-12020 | O-RING | F80211- | |
17 | 07001-02020 | RING | F80211- | |
18 | 07000-13024 | O-RING | F80211- |
