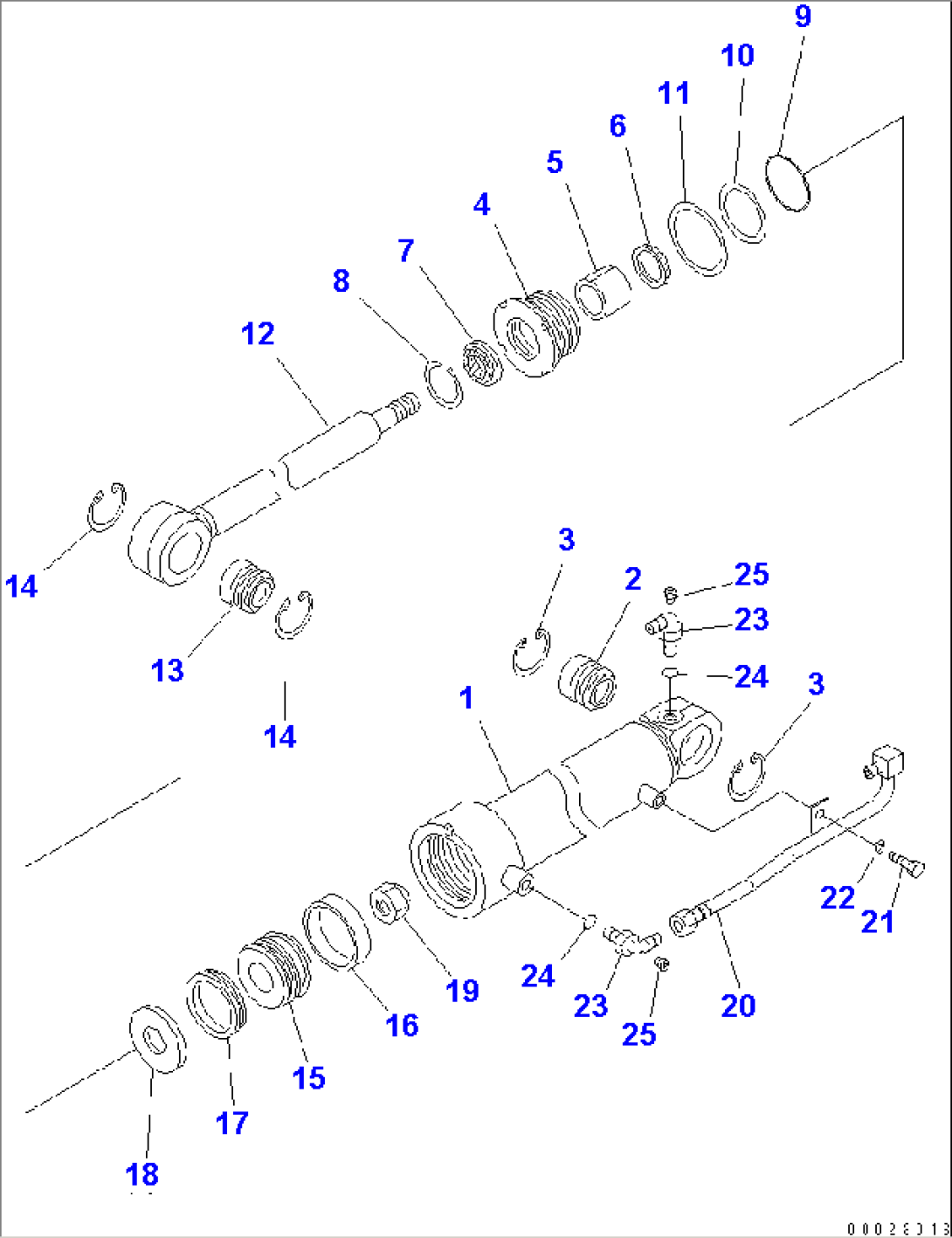

| Item | Part No. | Part Name | Qty | Serial No. |
| 707-00-X7F10 | CYLINDER ASS'Y,TILT¤ L.H. | .- | ||
| 234-63-18701 | CYLINDER ASS'Y,TILT¤ L.H. | 12001- | ||
| 707-00-X7F20 | CYLINDER ASS'Y,TILT¤ R.H. | .- | ||
| 234-63-18801 | CYLINDER ASS'Y,TILT¤ R.H. | 12001- | ||
| 1 | 234-63-18741 | CYLINDER,L.H. | 12001- | |
| 234-63-18841 | CYLINDER,R.H. | 12001- | ||
| 2 | 114-63-55170 | BUSHING | 12001- | |
| 3 | 04065-06220 | RING,SNAP | 12001- | |
| 4 | 707-29-80190 | HEAD,CYLINDER | 12001- | |
| 5 | 07177-04025 | BUSHING | 12001- | |
| 6 | 707-51-40210 | PACKING,ROD | 12001- | |
| 7 | 198-63-75190 | SEAL,DUST | 12001- | |
| 8 | 07179-00059 | RING,SNAP | 12001- | |
| 9 | 07000-12085 | O-RING | 12001- | |
| 10 | 07001-02085 | RING,BACK-UP | 12001- | |
| 11 | 707-45-80011 | WASHER,LOCK | 12001- | |
| 12 | 234-63-18720 | ROD | 12001- | |
| 13 | 114-63-55170 | BUSHING | 12001- | |
| 14 | 04065-06220 | RING,SNAP | 12001- | |
| 15 | 707-36-80181 | PISTON | 12001- | |
| 16 | 07155-00820 | RING,WEAR | 12001- | |
| 17 | 707-44-80180 | RING,PISTON | 12001- | |
| 18 | 707-40-80180 | RETAINER | 12001- | |
| 19 | 07165-13033 | NUT | 12001- | |
| 20 | 234-60-54160 | TUBE,L.H. | .- | |
| 234-60-54150 | TUBE,R.H. | .- | ||
| 21 | 01010-51020 | BOLT | .- | |
| 22 | 01643-31032 | WASHER | .- | |
| 23 | 07235-50422 | ELBOW | .- | |
| 24 | 07002-12034 | O-RING | .- | |
| 25 | 07043-70108 | PLUG | .- |
