| Item | Part No. | Part Name | Qty | Serial No. |
| (144-15-00300) | TRANSMISSION ASS'Y | 46890- | ||

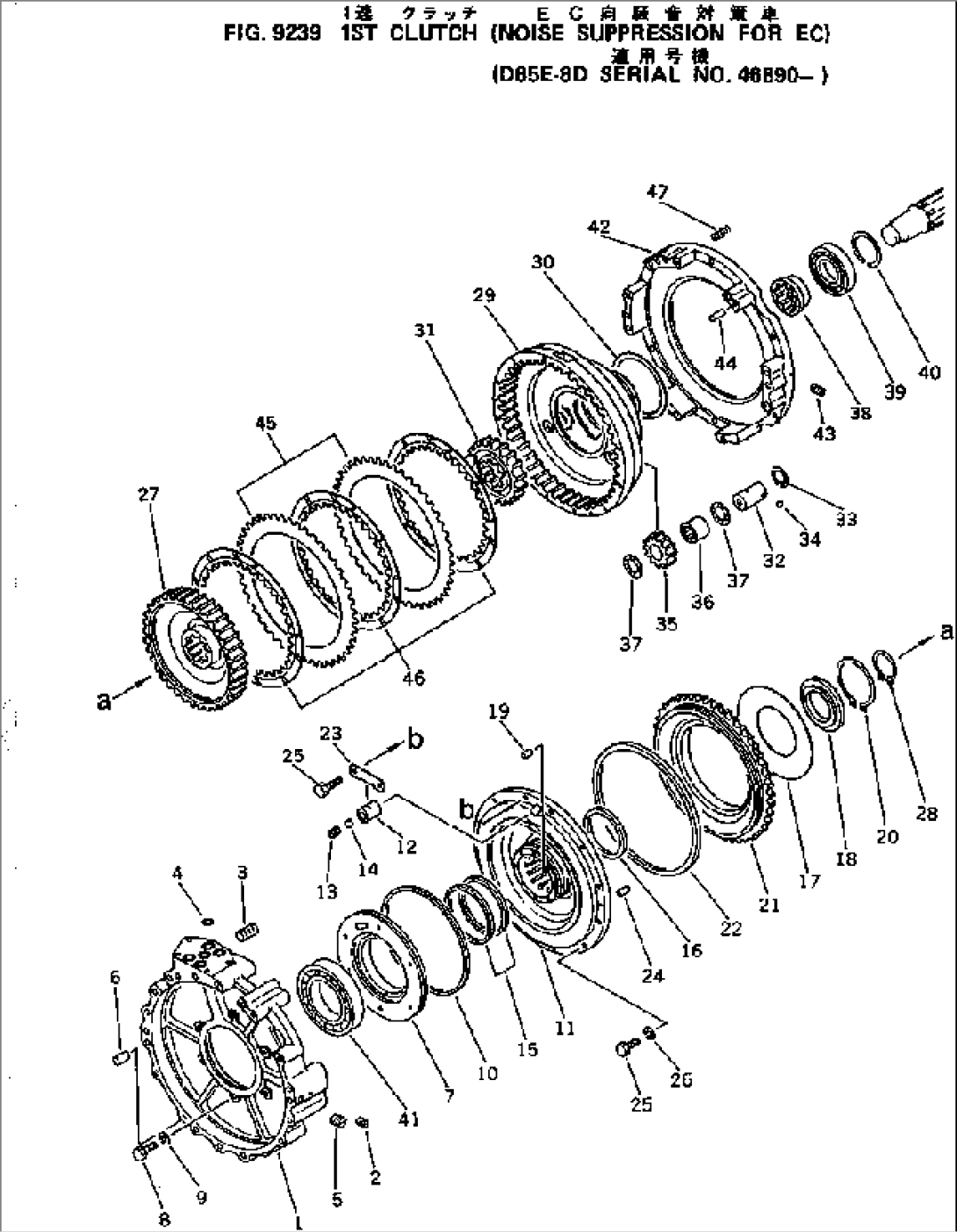

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.9235 TO 9245. | ||||
| 15B-15-00210 | HOUSING ASS'Y | 46890- | ||
| 1 | \6\ | HOUSING | 46890- | |
| 2 | 144-15-21320 | PLUG | 46890- | |
| 3 | 569-15-41310 | SLEEVE | 46890- | |
| 4 | 07000-73022 | O-RING (K2) | 46890- | |
| 5 | 234-15-12790 | SCREW | 46890- | |
| 6 | 04020-01228 | PIN | 46890- | |
| 7 | 15B-15-11260 | CAGE | 46890- | |
| 8 | 01010-51030 | BOLT | 46890- | |
| 9 | 01602-21030 | WASHER | 46890- | |
| 10 | 07018-12605 | RING,SEAL | 46890- | |
| 15B-15-00220 | CYLINDER ASS'Y | 46890- | ||
| 11 | 15B-15-12261 | CYLINDER | 46890- | |
| 12 | 145-15-42930 | CARTRIDGE | 46890- | |
| 13 | 568-15-11380 | PLUG | 46890- | |
| 14 | 04260-00952 | BALL | 46890- | |
| 15 | 07018-21606 | RING | 46890- | |
| 16 | 145-15-42820 | RING,SEAL (K2) | 46890- | |
| 17 | 234-15-12270 | SPRING | 46890- | |
| 18 | 15B-15-12160 | SPACER | 46890- | |
| 19 | 234-15-12810 | PIN | 46890- | |
| 20 | 04070-00105 | RING,SNAP | 46890- | |
| 21 | 15B-15-12730 | PISTON | 46890- | |
| 22 | 145-15-42810 | RING,SEAL (K2) | 46890- | |
| 23 | 145-15-42910 | PLATE,LOCK | 46890- | |
| 24 | 04020-01024 | PIN | 46890- | |
| 25 | 01010-A1035 | BOLT | 47282- | |
| 25 | 01010-51035 | BOLT | 46890-47281 | |
| 26 | 01643-51032 | WASHER | 46890- | |
| 27 | 144-15-22421 | GEAR | 46890- | |
| 28 | 04064-06525 | RING | 46890- | |
| 29 | 15B-15-12351 | CARRIER | 46890- | |
| 30 | 144-15-11290 | RING,SEAL | 46890- | |
| 31 | 145-15-42150 | GEAR | 46890- | |
| 32 | 145-15-42550 | SHAFT | 46890- | |
| 33 | 04065-03212 | RING,SNAP | 46890- | |
| 34 | 04260-00635 | BALL | 46890- | |
| 35 | 145-15-42440 | GEAR | 46890- | |
| 36 | 09232-03225 | BEARING | 46890- | |
| 37 | 09233-13220 | WASHER,THRUST | 47144- | |
| 37 | \0\144-15-22571 | WASHER,THRUST | 46890-47143 | |
| 38 | 145-15-42180 | SPACER | 46890- | |
| 39 | 06042-01015 | BEARING | 46890- | |
| 40 | 144-15-22860 | RING,SNAP | 46890- | |
| 41 | 06040-06024 | BEARING | 46890- | |
| 145-15-00120 | HOUSING ASS'Y | 46890- | ||
| 42 | \6\ | HOUSING | 46890- | |
| 43 | 145-14-11320 | PLUG | 46890- | |
| 44 | 04020-01228 | PIN | 46890- | |
| 45 | 287-15-12990 | PLATE | 46890- | |
| 46 | 424-15-12710 | DISC | 46890- | |
| 47 | 170-14-22330 | SPRING | 46890- |
