| Item | Part No. | Part Name | Qty | Serial No. |
| 8261-75-1101 | CONVEYOR ASS'Y | 1001- | ||

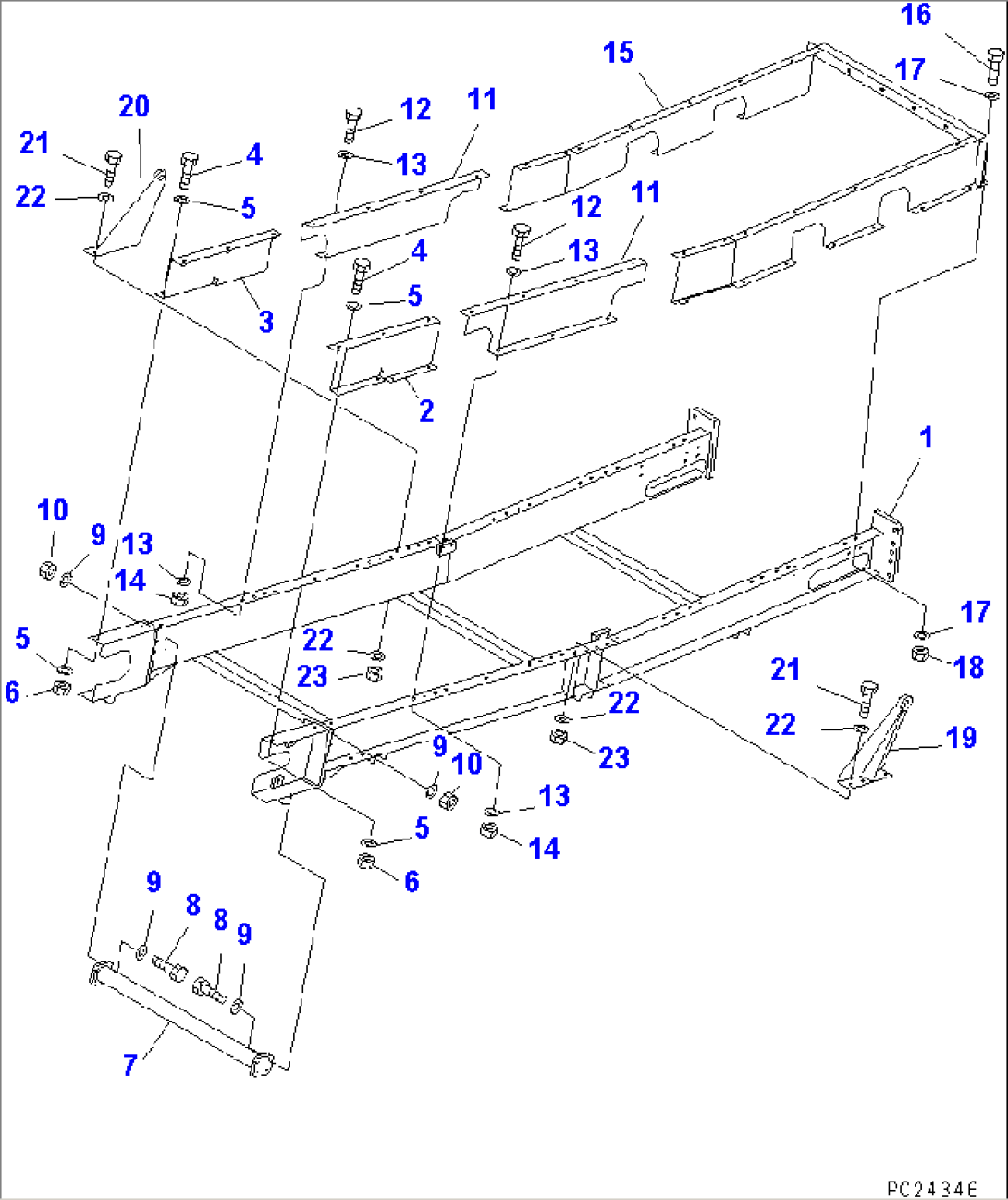

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.7511 TO 7517. | ||||
| 1 | 8261-75-1111 | FRAME | 1001- | |
| 2 | 8261-75-1250 | BRACKET,L.H. | 1001- | |
| 3 | 8261-75-1260 | BRACKET,R.H. | 1001- | |
| 4 | 01010-81230 | BOLT | 1001- | |
| 5 | 01643-31232 | WASHER | 1001- | |
| 6 | 01580-11210 | NUT | 1001- | |
| 7 | 8233-75-3610 | BRACKET | 1001- | |
| 8 | 01010-81235 | BOLT | 1001- | |
| 9 | 01643-31232 | WASHER | 1001- | |
| 10 | 01580-11210 | NUT | 1001- | |
| 11 | 8261-75-1210 | BRACKET | 1001- | |
| 12 | 01010-81230 | BOLT | 1001- | |
| 13 | 01643-31232 | WASHER | 1001- | |
| 14 | 01580-11210 | NUT | 1001- | |
| 15 | 8261-75-1120 | HOPPER | 1001- | |
| 16 | 01010-81230 | BOLT | 1001- | |
| 17 | 01643-31232 | WASHER | 1001- | |
| 18 | 01580-11210 | NUT | 1001- | |
| 19 | 8261-75-1371 | BRACKET,L.H. | 1001- | |
| 20 | 8261-75-1381 | BRACKET,R.H. | 1001- | |
| 21 | 01010-81245 | BOLT | 1001- | |
| 22 | 01643-31232 | WASHER | 1001- | |
| 23 | 01580-11210 | NUT | 1001- |
