| Item | Part No. | Part Name | Qty | Serial No. |
| 8248-75-2000 | CONVEYOR ASS'Y | 1002-1100 | ||

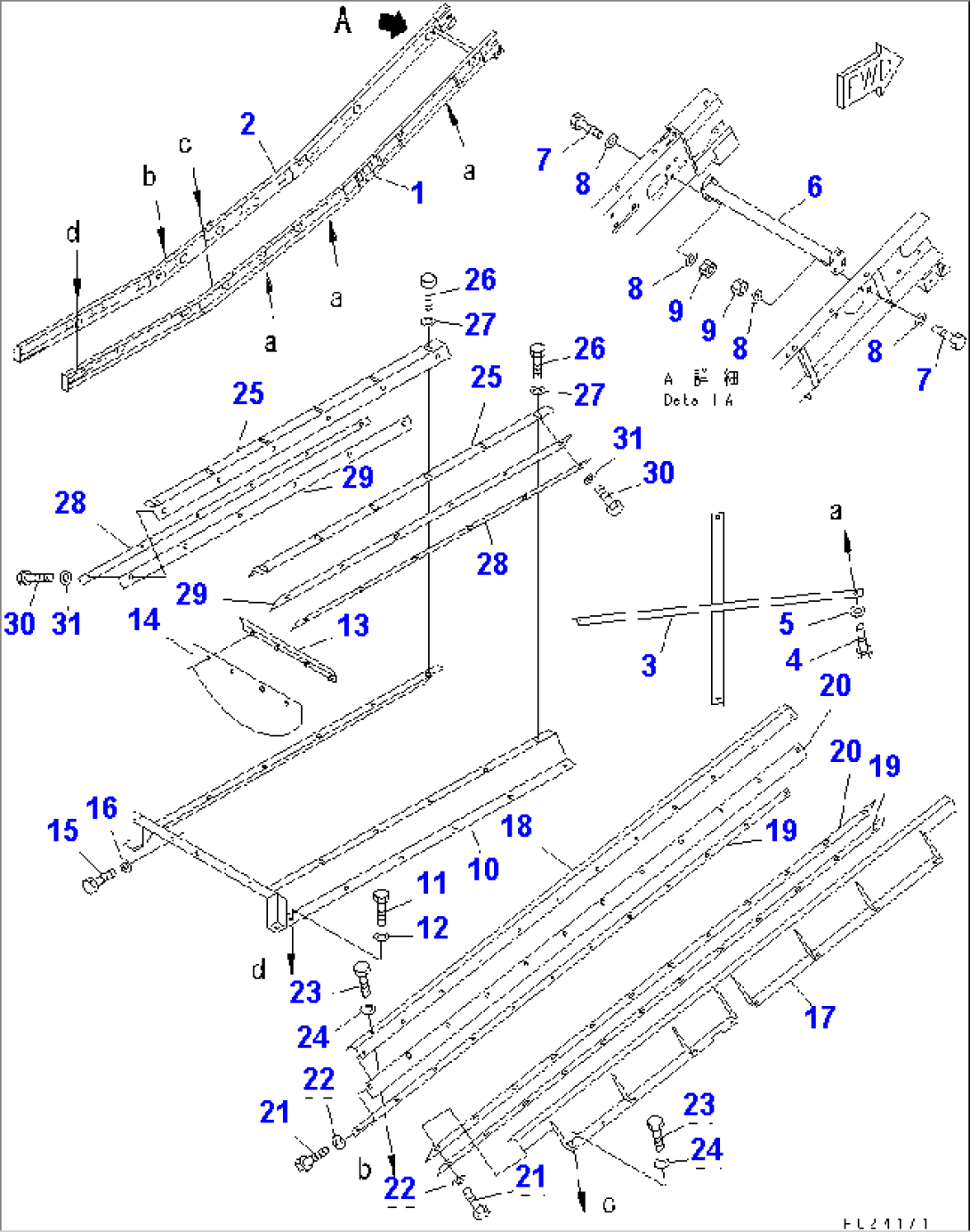

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.7511 TO 7517. | ||||
| 1 | 8248-75-3110 | FRAME,L.H. | 1002-1100 | |
| 2 | 8248-75-3120 | FRAME,R.H. | 1002-1100 | |
| 3 | 8248-75-2270 | BRACKET | 1002-1100 | |
| 4 | 01010-51230 | BOLT | 1002-1100 | |
| 5 | 01643-31032 | WASHER | 1002-1100 | |
| 6 | 8248-75-2260 | BRACKET | 1002-@ | |
| 7 | 01010-51235 | BOLT | 1002-1100 | |
| 8 | 01643-31232 | WASHER | 1002-@ | |
| 9 | 01580-11210 | NUT | 1002-@ | |
| 10 | 8248-75-2410 | HOPPER | 1002-1100 | |
| 11 | 01010-51225 | BOLT | 1002-1100 | |
| 12 | 01643-31232 | WASHER | 1002-1100 | |
| 13 | 8248-75-2950 | BRACKET | 1002-@ | |
| 14 | 8248-75-2450 | RUBBER | 1002-@ | |
| 15 | 01010-51020 | BOLT | 1002-@ | |
| 16 | 01643-31032 | WASHER | 1002-@ | |
| 17 | 8248-75-3240 | STAY,L.H. | 1002-1100 | |
| 18 | 8248-75-3410 | STAY,R.H. | 1002-1100 | |
| 19 | 8248-75-3330 | PLATE | 1002-@ | |
| 20 | 8248-75-3340 | RUBBER | 1002-@ | |
| 21 | 01010-51014 | BOLT | 1002-@ | |
| 22 | 01643-31032 | WASHER | 1002-@ | |
| 23 | 01010-51225 | BOLT | 1002-@ | |
| 24 | 01643-31232 | WASHER | 1002-@ | |
| 25 | 8248-75-2930 | BRACKET | 1002-1100 | |
| 26 | 01010-51230 | BOLT | 1002-1100 | |
| 27 | 01643-31232 | WASHER | 1002-1100 | |
| 28 | 8248-75-2940 | PLATE | 1002-1100 | |
| 29 | 8248-75-2440 | RUBBER | 1002-1100 | |
| 30 | 01010-51014 | BOLT | 1002-1100 | |
| 31 | 01643-31032 | WASHER | 1002-1100 |
