| Item | Part No. | Part Name | Qty | Serial No. |
| (8233-75-3101) | CONVEYOR ASS'Y | 1101- | ||

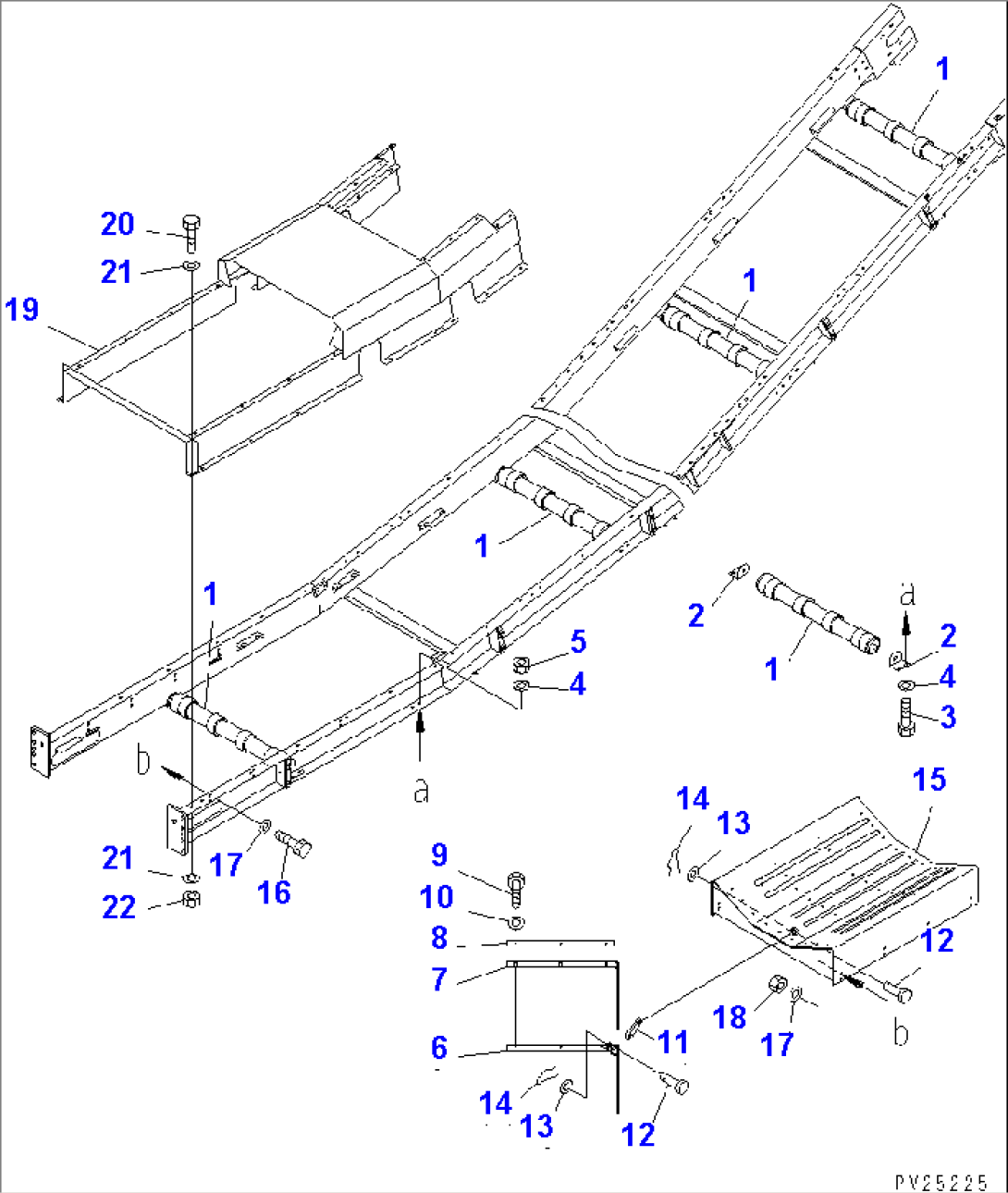

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.7511 TO 7517. | ||||
| 1 | 8248-75-2980 | ROLLER,RETURN | 1101- | |
| 2 | 8233-75-3270 | BRACKET | 1101- | |
| 3 | 01010-81230 | BOLT | 1101- | |
| 4 | 01643-31232 | WASHER | 1101- | |
| 5 | 01580-11210 | NUT | 1101- | |
| 6 | 8233-75-3370 | SCRAPER | 1101- | |
| 7 | 8248-75-2810 | RUBBER | 1101- | |
| 8 | 8248-75-2820 | PLATE | 1101- | |
| 9 | 01010-81025 | BOLT | 1101- | |
| 10 | 01643-31032 | WASHER | 1101- | |
| 11 | 8221-75-2570 | LINK | 1101- | |
| 12 | 04205-31655 | PIN | 1101- | |
| 13 | 01641-21626 | WASHER | 1101- | |
| 14 | 04052-11664 | PIN | 1101- | |
| 15 | 8233-75-3281 | PLATE | 1101- | |
| 16 | 01010-81230 | BOLT | 1101- | |
| 17 | 01643-31232 | WASHER | 1101- | |
| 18 | 01580-11210 | NUT | 1101- | |
| 19 | 8233-75-3320 | HOPPER | 1101- | |
| 20 | 01010-81230 | BOLT | 1101- | |
| 21 | 01643-31232 | WASHER | 1101- | |
| 22 | 01580-11210 | NUT | 1101- |
