| Item | Part No. | Part Name | Qty | Serial No. |
| (8206-75-6102) | CONVEYOR ASS'Y | 1201- | ||

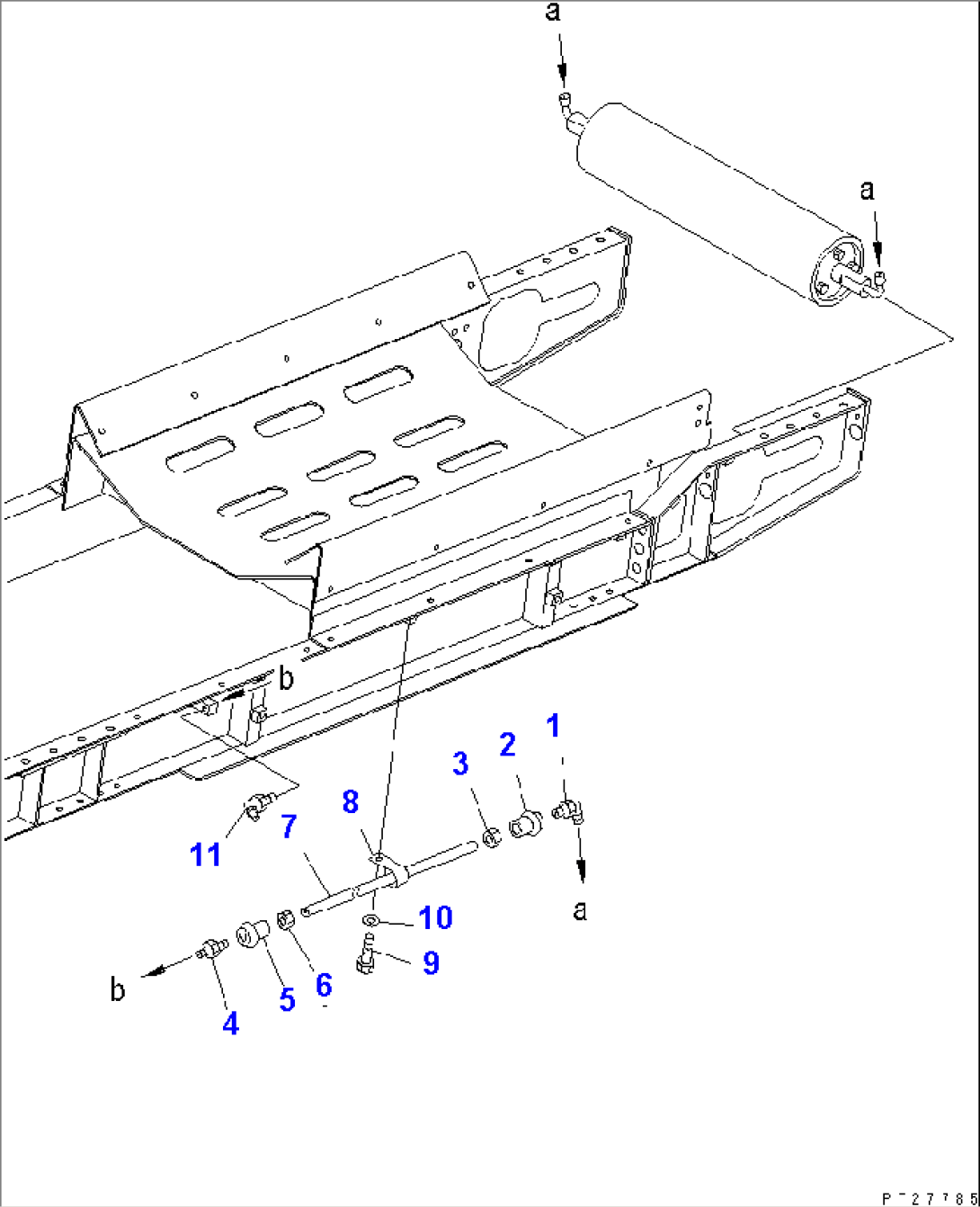

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.7611ATO 7620A. | ||||
| 1 | 20R-46-11150 | ELBOW | 1101- | |
| 2 | 07831-00411 | SLEEVE | 1101- | |
| 3 | 07832-00410 | NUT | 1101- | |
| 4 | 20R-46-11160 | CONNECTOR | 1101- | |
| 5 | 07831-00411 | SLEEVE | 1101- | |
| 6 | 07832-00410 | NUT | 1101- | |
| 7 | 8206-75-3B10 | TUBE | 1101- | |
| 8 | 04434-50610 | CLIP | 1101- | |
| 9 | 01010-81016 | BOLT | 1101- | |
| 10 | 01643-31032 | WASHER | 1101- | |
| 11 | 07020-00675 | FITTING,GREASE | 1101- |
