| Item | Part No. | Part Name | Qty | Serial No. |
| (8261-75-1101) | CONVEYOR ASS'Y | 1001- | ||

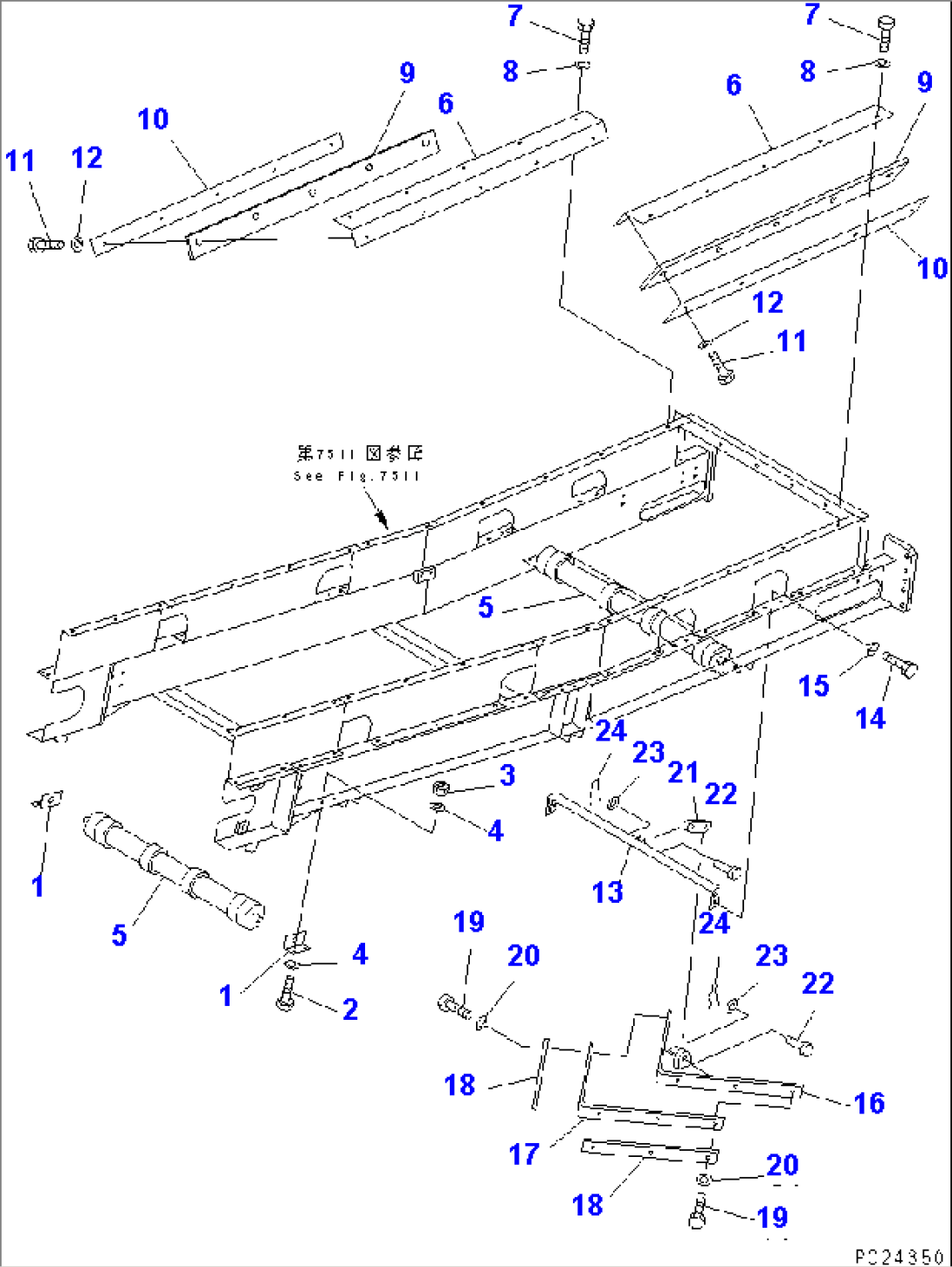

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.7511 TO 7517. | ||||
| 1 | 8233-75-3270 | BRACKET | 1001- | |
| 2 | 01010-81230 | BOLT | 1001- | |
| 3 | 01580-11210 | NUT | 1001- | |
| 4 | 01643-31232 | WASHER | 1001- | |
| 5 | 8248-75-2980 | ROLLER | 1001- | |
| 6 | 8261-75-1130 | COVER | 1001- | |
| 7 | 01010-81225 | BOLT | 1001- | |
| 8 | 01643-31232 | WASHER | 1001- | |
| 9 | 8261-75-1160 | COVER | 1001- | |
| 10 | 8261-75-1150 | COVER | 1001- | |
| 11 | 01010-81014 | BOLT | 1001- | |
| 12 | 01643-31032 | WASHER | 1001- | |
| 13 | 8261-75-1350 | COVER | 1001- | |
| 14 | 01010-81230 | BOLT | 1001- | |
| 15 | 01643-31232 | WASHER | 1001- | |
| 16 | 8248-75-3370 | BRACKET | 1001- | |
| 17 | 8248-75-2810 | RUBBER | 1001- | |
| 18 | 8248-75-2820 | PLATE | 1001- | |
| 19 | 01010-81025 | BOLT | 1001- | |
| 20 | 01643-31032 | WASHER | 1001- | |
| 21 | 8221-75-2570 | LINK | 1001- | |
| 22 | 04205-31650 | PIN | 1001- | |
| 23 | 01641-21626 | WASHER | 1001- | |
| 24 | 04052-11664 | PIN,COTTER | 1001- |
