| Item | Part No. | Part Name | Qty | Serial No. |
| (8248-75-2003) | CONVEYOR ASS'Y | 1101- | ||

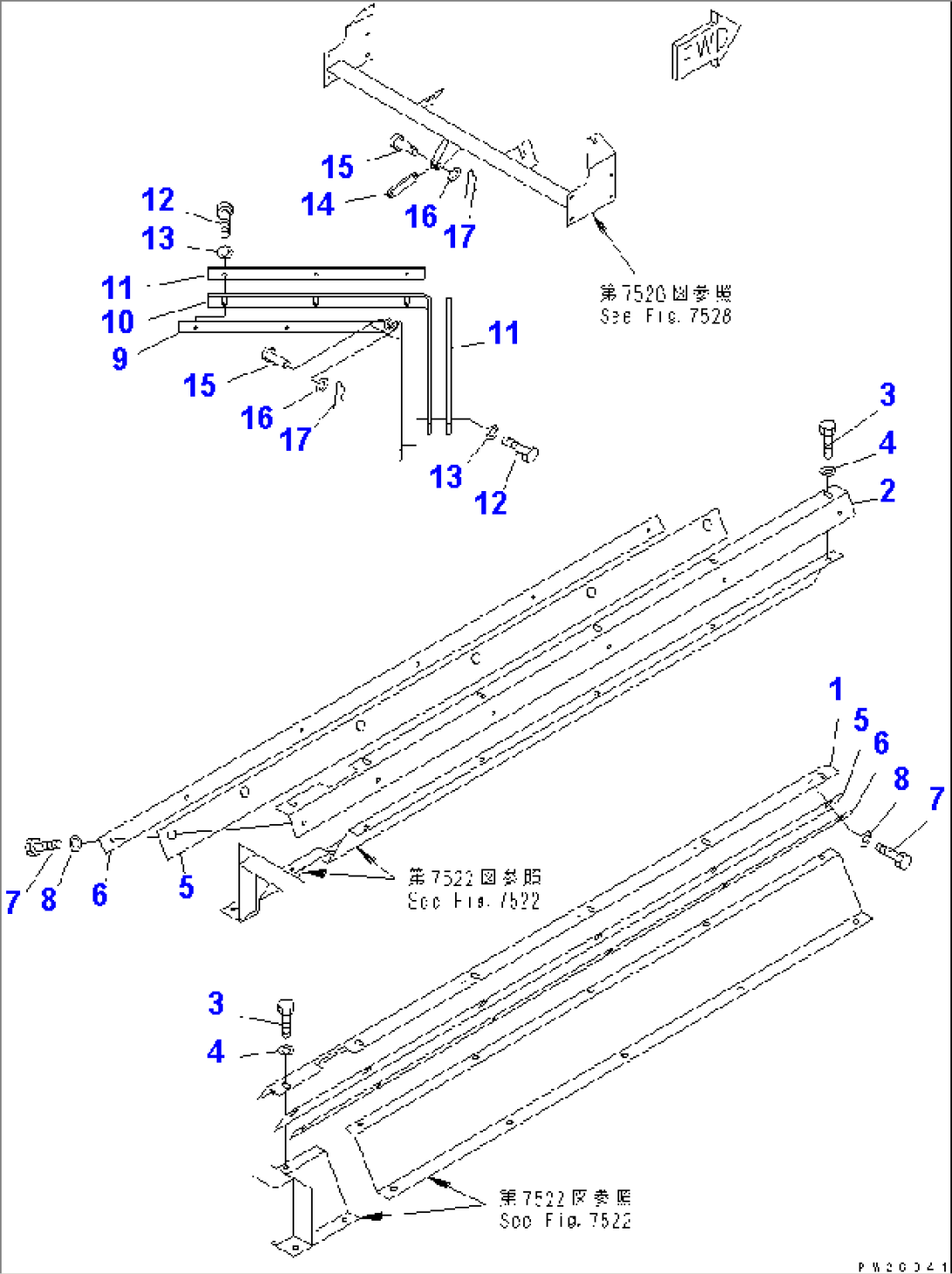

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.7521 TO 7530. | ||||
| 1 | 8248-75-1540 | BRACKET,L.H. | 1101- | |
| 2 | 8248-75-1550 | BRACKET,R.H. | 1101- | |
| 3 | 01010-81230 | BOLT | 1101- | |
| 4 | 01643-31232 | WASHER | 1101- | |
| 5 | 8248-75-2441 | RUBBER | 1101- | |
| 6 | 8248-75-2941 | PLATE | 1101- | |
| 7 | 01010-81014 | BOLT | 1101- | |
| 8 | 01643-31032 | WASHER | 1101- | |
| 9 | 8248-75-2790 | SCRAPER | 1002- | |
| 10 | 8248-75-2810 | RUBBER | 1002- | |
| 11 | 8248-75-2820 | PLATE | 1002- | |
| 12 | 01010-81025 | BOLT | 1002- | |
| 13 | 01643-31032 | WASHER | 1002- | |
| 14 | 8248-75-2920 | LINK | 1002- | |
| 15 | 04205-31235 | PIN | 1002- | |
| 16 | 01641-21223 | WASHER | 1002- | |
| 17 | 04052-11253 | PIN | 1002- |
