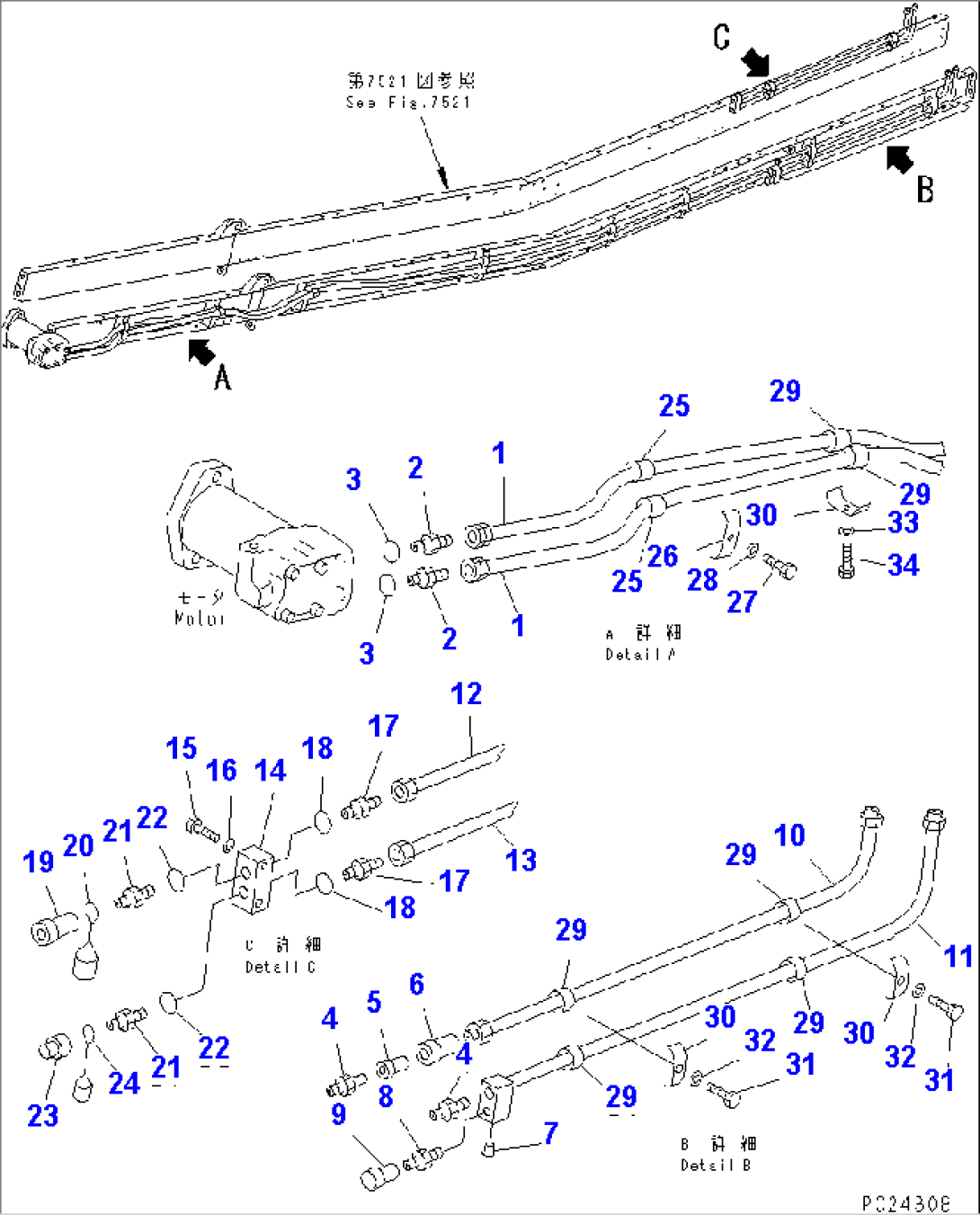

| Item | Part No. | Part Name | Qty | Serial No. |
| (8206-75-4700) | CONVEYOR ASS'Y | 1024-1100 | ||
| (8206-75-4500) | CONVEYOR ASS'Y | 1002-1023 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.7521 TO 7526. | ||||
| 1 | 07113-00450 | HOSE | 1002-1100 | |
| 2 | 101-965-5120 | NIPPLE | 1002-1100 | |
| 3 | 07000-12018 | O-RING | 1002-1100 | |
| 4 | 10E-60-16360 | NIPPLE | 1002-1100 | |
| 5 | 8221-75-2610 | COUPLER | 1002-1100 | |
| 6 | 8221-75-2590 | COUPLER | 1002-1100 | |
| 7 | 07043-70211 | PLUG | 1002-1100 | |
| 8 | 8221-75-2630 | NIPPLE | 1002-1100 | |
| 9 | 8221-75-2620 | COUPLER | 1002-1100 | |
| 10 | 8206-75-3970 | TUBE | 1002-1100 | |
| 11 | 8206-75-3980 | TUBE | 1002-1100 | |
| 12 | 8206-75-3A80 | TUBE | 1002-1100 | |
| 13 | 8206-75-3A90 | TUBE | 1002-1100 | |
| 14 | 8248-62-1170 | BLOCK | 1002-1100 | |
| 15 | 01010-81270 | BOLT | 1002-1100 | |
| 16 | 01643-31232 | WASHER | 1002-1100 | |
| 17 | 07230-20422 | UNION | 1002-1100 | |
| 18 | 07002-12034 | O-RING | 1002-1100 | |
| 19 | 8221-75-2590 | COUPLER | 1002-1100 | |
| 20 | 8248-62-1180 | CAP | 1002-1100 | |
| 21 | 417-891-1160 | UNION | 1002-1100 | |
| 22 | 07002-12034 | O-RING | 1002-1100 | |
| 23 | 8221-75-2610 | COUPLER | 1002-1100 | |
| 24 | 8248-62-1190 | CAP | 1002-1100 | |
| 25 | 07095-00421 | CUSHION | 1002-1100 | |
| 26 | 07094-30417 | CLAMP | 1002-1100 | |
| 27 | 01010-81240 | BOLT | 1002-1100 | |
| 28 | 01643-31232 | WASHER | 1002-1100 | |
| 29 | 07095-00526 | CUSHION | 1002-1100 | |
| 30 | 07094-30518 | CLAMP | 1002-1100 | |
| 31 | 01010-81240 | BOLT | 1002-1100 | |
| 32 | 01643-31232 | WASHER | 1002-1100 | |
| 33 | 01011-81205 | BOLT | 1002-1100 | |
| 34 | 01643-31232 | WASHER | 1002-1100 |
