| Item | Part No. | Part Name | Qty | Serial No. |
| (8233-75-3101) | CONVEYOR ASS'Y | 1101- | ||

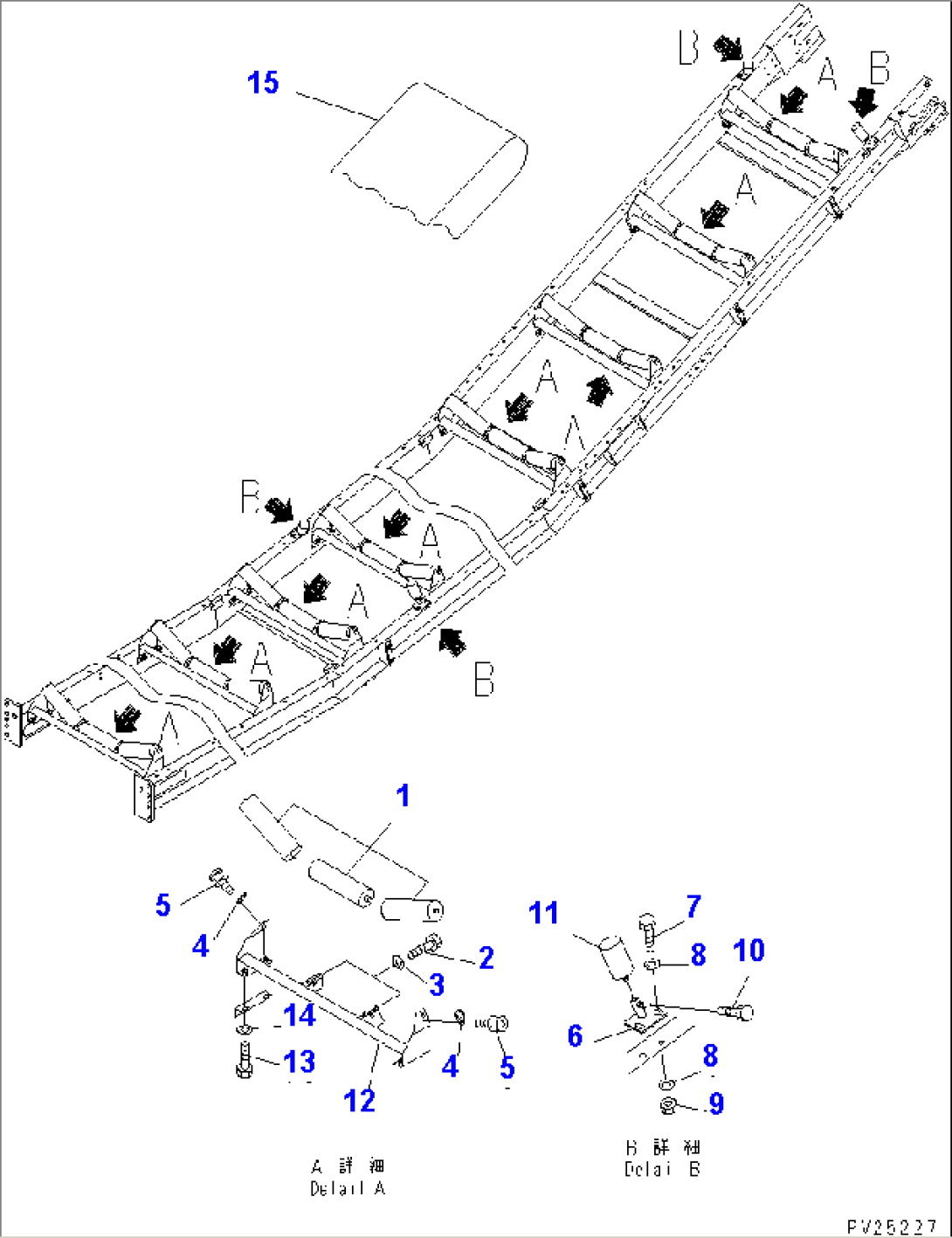

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.7511 TO 7517. | ||||
| 1 | 8248-75-2960 | ROLLER,CARRIER | 1101- | |
| 2 | 01010-80880 | BOLT | 1101- | |
| 3 | 01643-30823 | WASHER | 1101- | |
| 4 | 8253-75-2190 | PLATE | 1101- | |
| 5 | 01023-10612 | SCREW | 1101- | |
| 6 | 8242-75-2420 | BRACKET | 1101- | |
| 7 | 01010-81230 | BOLT | 1101- | |
| 8 | 01643-31232 | WASHER | 1101- | |
| 9 | 01580-11210 | NUT | 1101- | |
| 10 | 01010-80820 | BOLT | 1101- | |
| 11 | 8248-75-3180 | ROLLER,GUIDE | 1101- | |
| 12 | 8233-75-3262 | BRACKET | 1101- | |
| 13 | 01010-81230 | BOLT | 1101- | |
| 14 | 01643-31232 | WASHER | 1101- | |
| 15 | \6\ | BELT | 1101- |
