| Item | Part No. | Part Name | Qty | Serial No. |

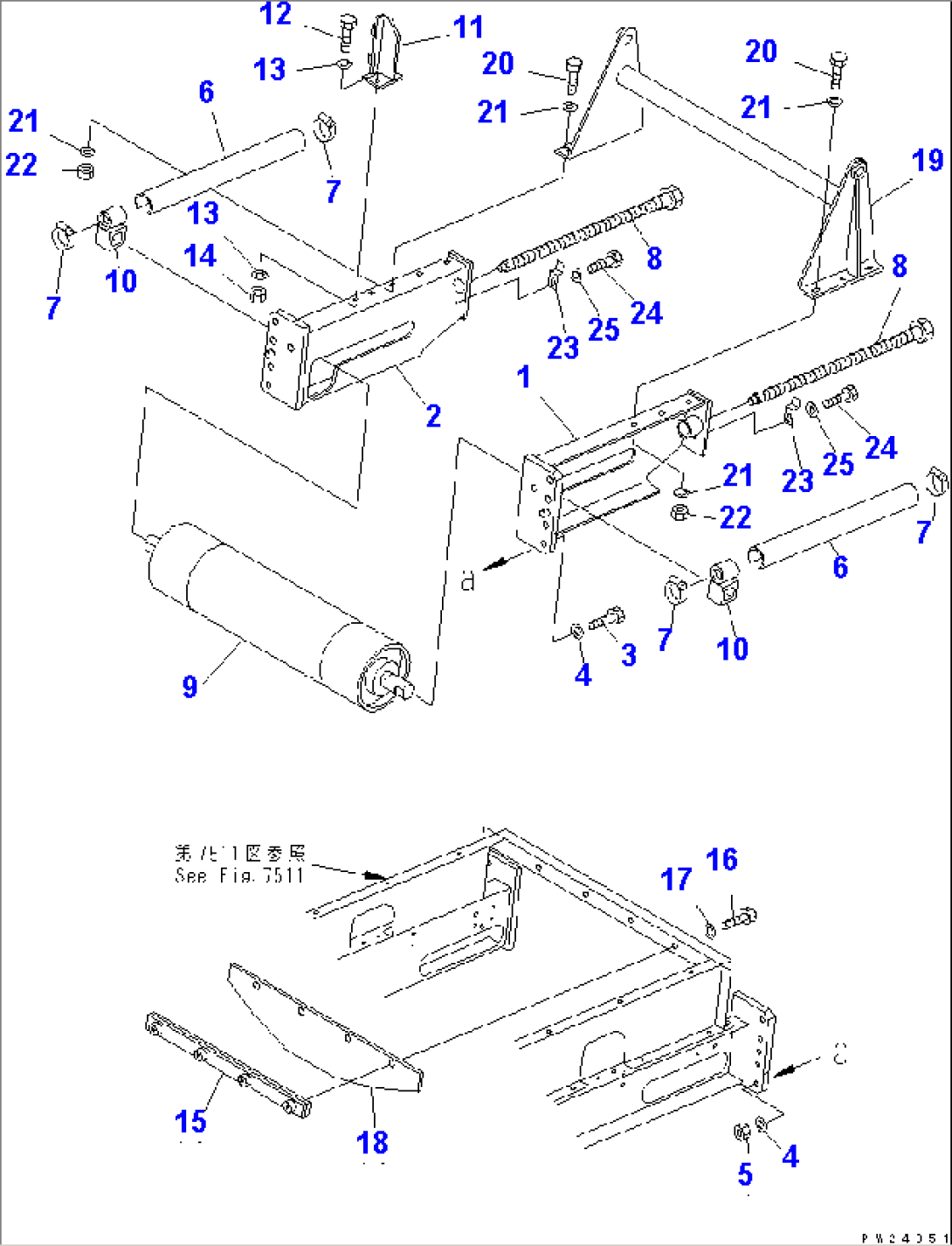

| (8261-75-1101) | CONVEYOR ASS'Y | 1001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.7511 TO 7517. | ||||
| 1 | 8261-75-1441 | FRAME,L.H. | 1001- | |
| 2 | 8261-75-1451 | FRAME,R.H. | 1001- | |
| 3 | 01010-82060 | BOLT | 1001- | |
| 4 | 01643-32060 | WASHER | 1001- | |
| 5 | 01580-12016 | NUT | 1001- | |
| 6 | 8233-75-3390 | HOSE | 1001- | |
| 7 | 07281-00809 | CLAMP | 1001- | |
| 8 | 8233-75-3380 | BOLT | 1001- | |
| 9 | 8242-75-2500 | PULLEY ASS'Y | 1001- | |
| 10 | 8248-75-2910 | GUIDE | 1001- | |
| 11 | 8233-75-3710 | BRACKET | 1001- | |
| 12 | 01010-81235 | BOLT | 1001- | |
| 13 | 01643-31232 | WASHER | 1001- | |
| 14 | 01580-11210 | NUT | 1001- | |
| 15 | 8233-75-3780 | BRACKET | 1001- | |
| 16 | 01010-81025 | BOLT | 1001- | |
| 17 | 01643-31032 | WASHER | 1001- | |
| 18 | 8233-75-3770 | RUBBER | 1001- | |
| 19 | 8261-75-1360 | BRACKET | 1001- | |
| 20 | 01010-81645 | BOLT | 1001- | |
| 21 | 01643-31645 | WASHER | 1001- | |
| 22 | 01580-11613 | NUT | 1001- | |
| 23 | 8242-75-2960 | PLATE | 1001- | |
| 24 | 01010-81230 | BOLT | 1001- | |
| 25 | 01643-31232 | WASHER | 1001- |
