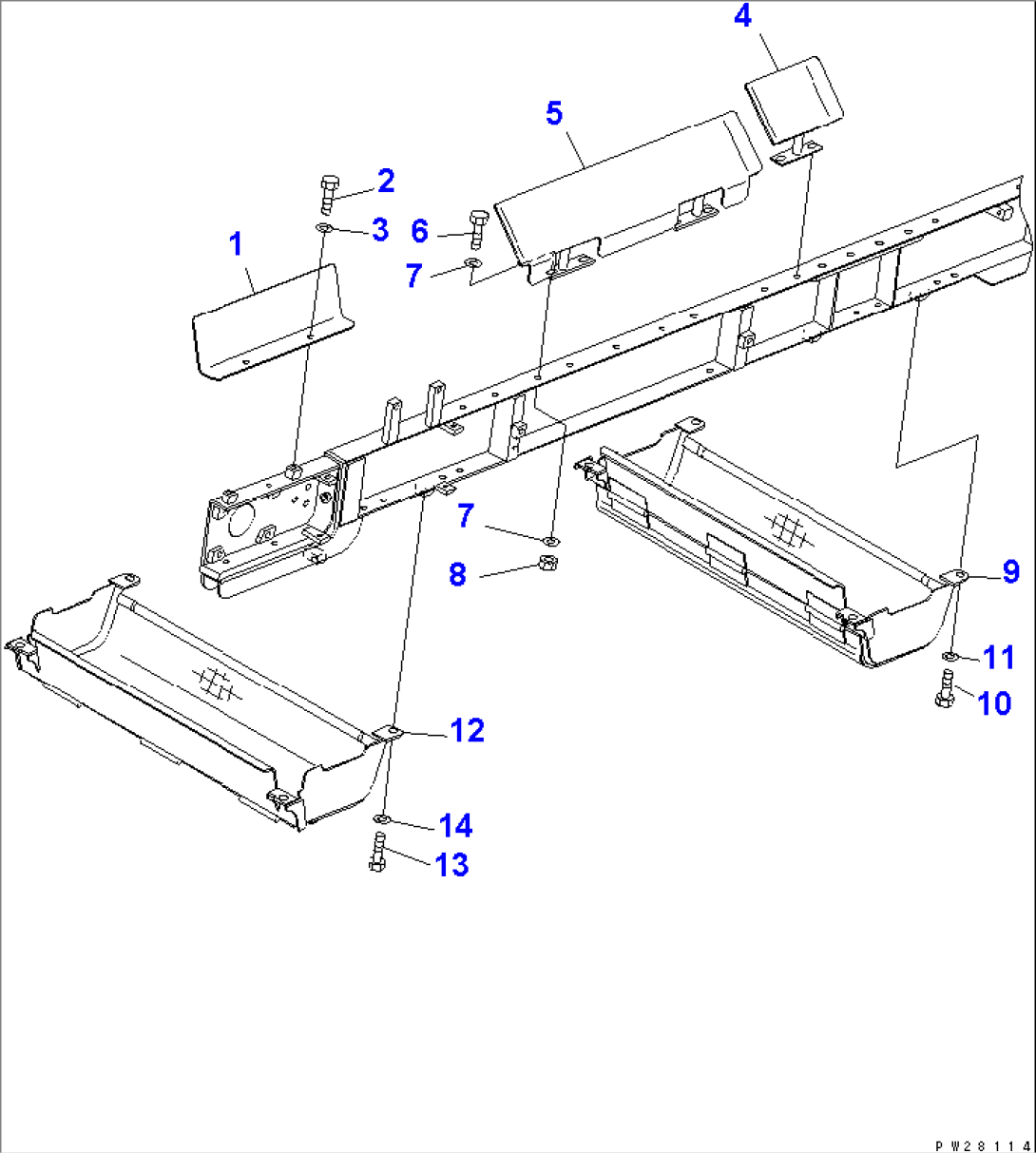

| Item | Part No. | Part Name | Qty | Serial No. |
| (8206-75-6202) | CONVEYOR ASS'Y | 1201- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.7611ATO 7620A. | ||||
| 1 | 8206-75-6350 | GUARD | 1201- | |
| 2 | 01010-81020 | BOLT | 1201- | |
| 3 | 01643-31032 | WASHER | 1201- | |
| 4 | 8206-75-6340 | GUARD | 1201- | |
| 5 | 8206-75-6310 | GUARD | 1201- | |
| 6 | 01010-81030 | BOLT | 1201- | |
| 7 | 01643-31032 | WASHER | 1201- | |
| 8 | 01580-11008 | NUT | 1201- | |
| 9 | 8221-75-3111 | GUARD | 1201- | |
| 10 | 01010-81225 | BOLT | 1201- | |
| 11 | 01643-31232 | WASHER | 1201- | |
| 12 | 8221-75-3121 | GUARD | 1201- | |
| 13 | 01010-81225 | BOLT | 1201- | |
| 14 | 01643-31232 | WASHER | 1201- |
