| Item | Part No. | Part Name | Qty | Serial No. |
| (KWKKS-75-71001) | CONVEYOR ASS'Y | 1002-1012 | ||

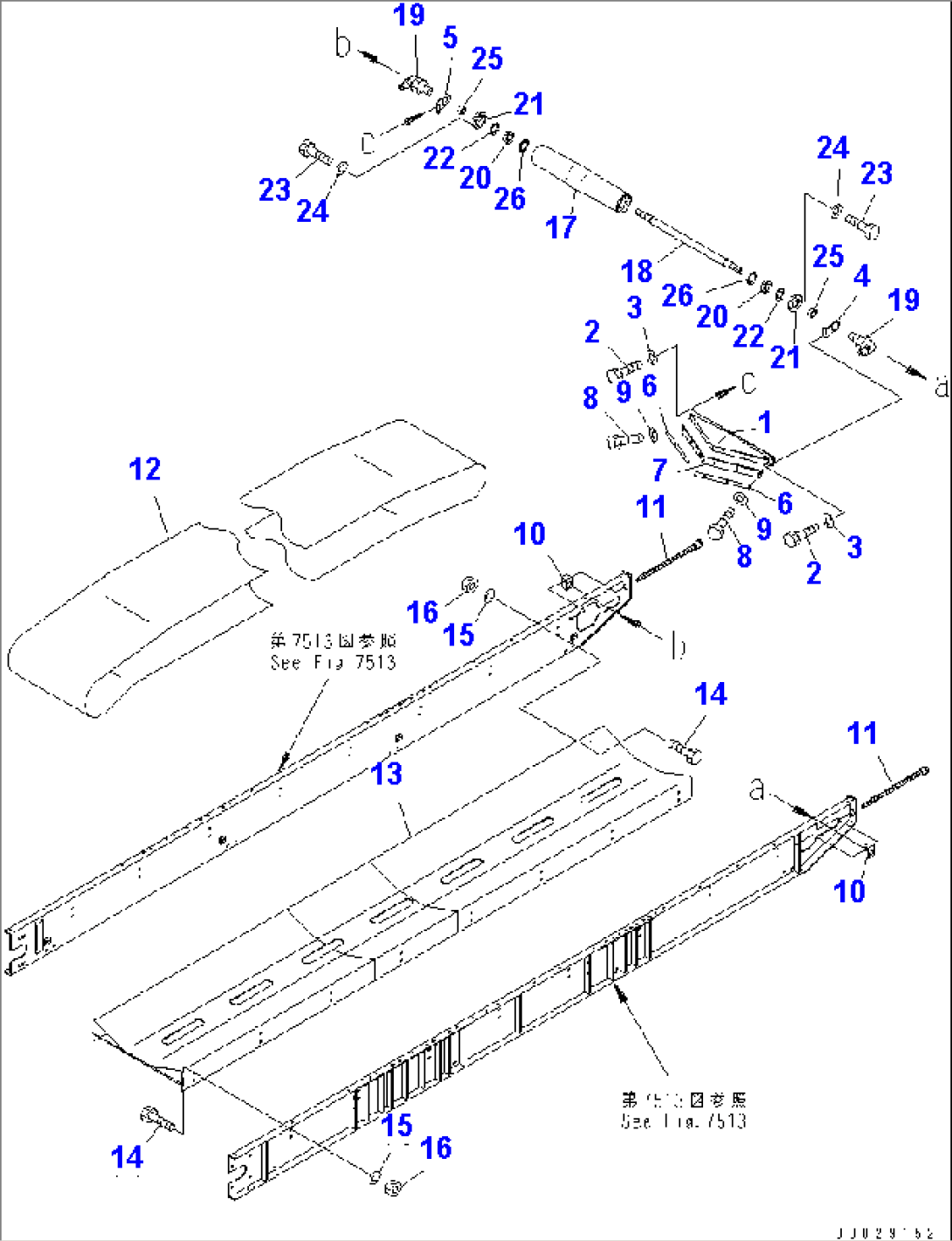

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.7511 TO 7517. | ||||
| 1 | KWKKS-75-11441 | SCRAPER | 1002-1012 | |
| 2 | 01010-80812 | BOLT | 1002-@ | |
| 3 | 01643-30823 | WASHER | 1002-@ | |
| 4 | KWKKS-75-11472 | BRACKET | 1002-1012 | |
| 5 | KWKKS-75-12120 | BRACKET | 1002-1012 | |
| 6 | KWKKS-75-11460 | PLATE | 1002-@ | |
| 7 | KWKKS-75-11450 | RUBBER | 1002-@ | |
| 8 | 01010-80816 | BOLT | 1002-@ | |
| 9 | 01643-30823 | WASHER | 1002-@ | |
| 10 | KWKKS-75-11910 | GUIDE | 1002-@ | |
| 11 | KWKKS-75-11331 | BOLT | 1002-@ | |
| 12 | KWKKS-75-71250 | BELT | 1002-1012 | |
| 13 | KWKKS-75-71480 | PLATE | 1002-1012 | |
| 14 | 01010-81025 | BOLT | 1002-1012 | |
| 15 | 01643-31032 | WASHER | 1002-1012 | |
| 16 | 01580-11008 | NUT | 1002-1012 | |
| KWKKS-75-11100 | PULLEY ASS'Y | 1002-1012 | ||
| 17 | KWKKS-75-11292 | PULLEY | 1002-1012 | |
| 18 | KWKKS-75-11941 | SHAFT | 1002-1012 | |
| 19 | 07020-00900 | FITTING | 1002-@ | |
| 20 | 06300-06207 | BEARING | 1002-@ | |
| 21 | KWKKS-75-11931 | CAP | 1002-@ | |
| 22 | KWKKS-75-12110 | SEAL | 1002-@ | |
| 23 | 01010-80625 | BOLT | 1002-@ | |
| 24 | 01643-30623 | WASHER | 1002-@ | |
| 25 | KWKKS-75-11921 | COLLAR | 1002-1012 | |
| 26 | KWKKS-75-12330 | RING | 1002-@ |
