| Item | Part No. | Part Name | Qty | Serial No. |
| (KWKKS-75-71002) | CONVEYOR ASS'Y | 1013-1039 | ||

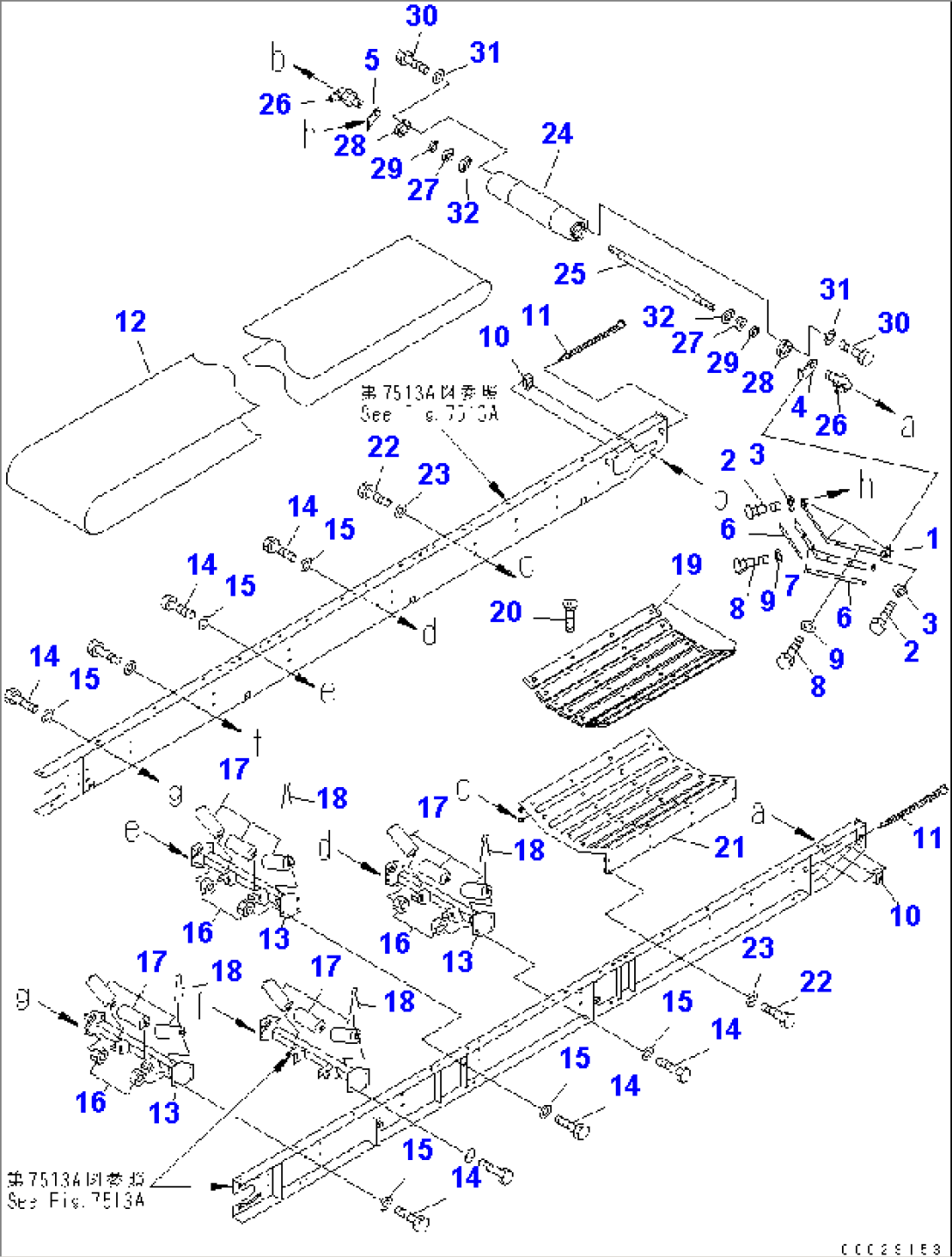

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.7511 TO 7517. | ||||
| 1 | KWKKS-75-71620 | SCRAPER | 1013-1039 | |
| 2 | 01010-80812 | BOLT | 1002-1039 | |
| 3 | 01643-30823 | WASHER | 1002-1039 | |
| 4 | KWKKS-75-71660 | BRACKET | 1013-1039 | |
| 5 | KWKKS-75-71670 | BRACKET | 1013-1039 | |
| 6 | KWKKS-75-11460 | PLATE | 1002-1039 | |
| 7 | KWKKS-75-11450 | RUBBER | 1002-1039 | |
| 8 | 01010-80816 | BOLT | 1002-1039 | |
| 9 | 01643-30823 | WASHER | 1002-1039 | |
| 10 | KWKKS-75-11910 | GUIDE | 1002-@ | |
| 11 | KWKKS-75-11331 | BOLT | 1002-@ | |
| 12 | KWKKS-75-71750 | BELT | 1002-@ | |
| 13 | KWKKS-75-71560 | BRACKET | 1013-1039 | |
| 14 | 01010-81025 | BOLT | 1013-@ | |
| 15 | 01643-31032 | WASHER | 1013-@ | |
| 16 | 01580-11008 | NUT | 1013-@ | |
| 17 | KWKKS-75-71690 | ROLLER,CARRIER | 1013-@ | |
| 18 | 04050-15030 | PIN | 1013-1039 | |
| 19 | KWKKS-75-71720 | PLATE | 1013-@ | |
| 20 | 01236-40820 | SCREW | 1013-@ | |
| 21 | KWKKS-75-71550 | PLATE | 1013-1039 | |
| 22 | 01010-81025 | BOLT | 1013-@ | |
| 23 | 01643-31032 | WASHER | 1013-@ | |
| KWKKS-75-71500 | PULLEY ASS'Y | 1013-1039 | ||
| 24 | KWKKS-75-71580 | PULLEY | 1013-1039 | |
| 25 | KWKKS-75-71590 | SHAFT | 1013-@ | |
| 26 | 07020-00900 | FITTING | 1002-1039 | |
| 27 | 06300-06207 | BEARING | 1002-@ | |
| 28 | KWKKS-75-11931 | CAP | 1002-@ | |
| 29 | KWKKS-75-12110 | SEAL | 1002-@ | |
| 30 | 01010-80625 | BOLT | 1002-@ | |
| 31 | 01643-30623 | WASHER | 1002-@ | |
| 32 | KWKKS-75-12330 | RING | 1002-@ |
