| Item | Part No. | Part Name | Qty | Serial No. |
| (KWKKS-75-71001) | CONVEYOR ASS'Y | 1002-1012 | ||

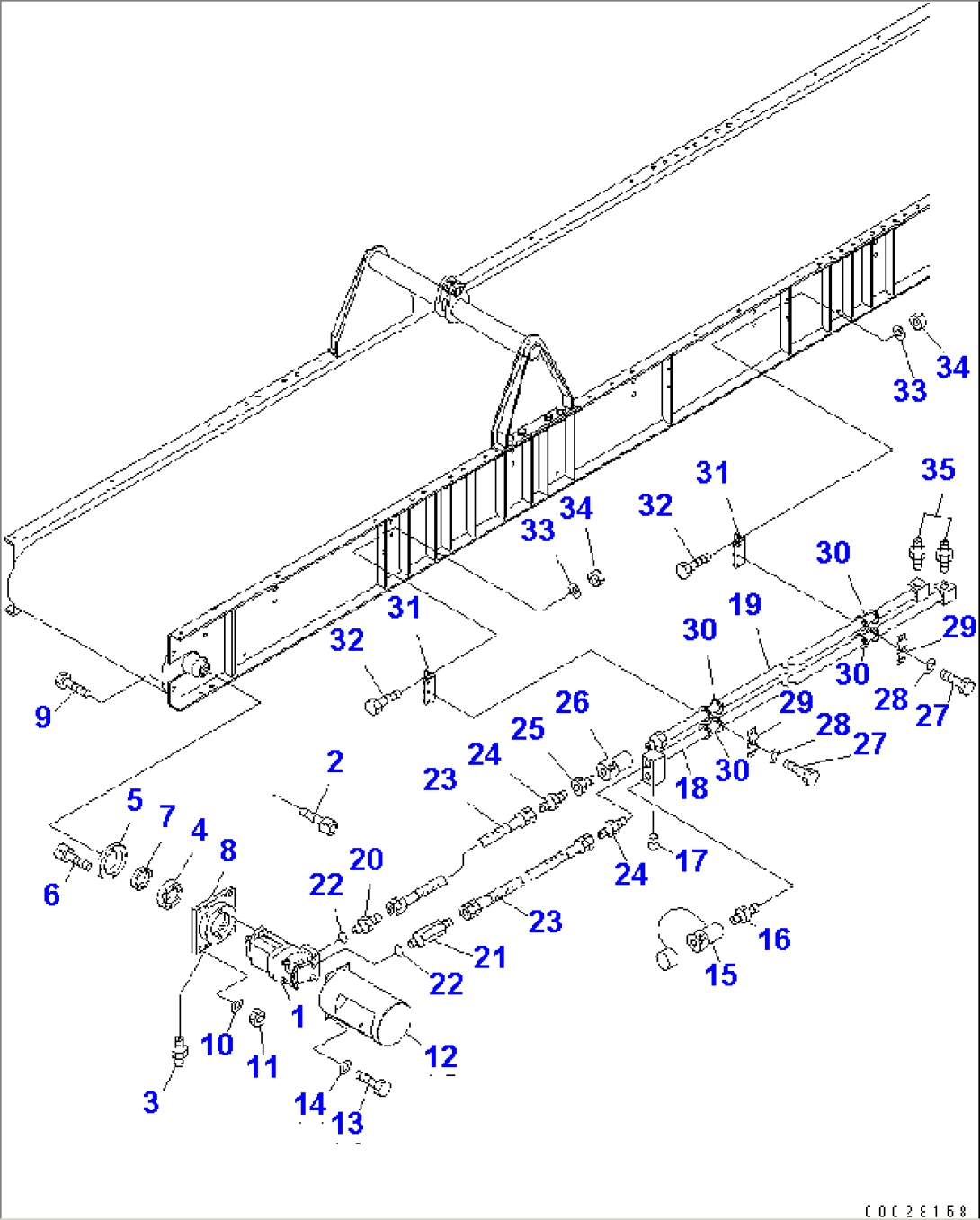

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.7511 TO 7517. | ||||
| 1 | KWKKS-75-71372 | MOTOR | 1002-@ | |
| 2 | 01252-41235 | BOLT | 1002-@ | |
| 3 | 07020-00000 | FITTING | 1002-1012 | |
| 4 | KWKKS-75-71380 | BEARING | 1002-@ | |
| 5 | KWKKS-75-71280 | HOUSING | 1002-@ | |
| 6 | 01252-40612 | BOLT | 1002-@ | |
| 7 | KWKKS-75-71390 | SEAL | 1002-@ | |
| 8 | KWKKS-75-71140 | HOUSING | 1002-1012 | |
| 9 | 01010-81240 | BOLT | 1002-1012 | |
| 10 | 01643-31232 | WASHER | 1002-@ | |
| 11 | 01580-11210 | NUT | 1002-1012 | |
| 12 | KWKKS-75-71290 | COVER | 1002-@ | |
| 13 | 01010-80816 | BOLT | 1002-@ | |
| 14 | 01643-30823 | WASHER | 1002-@ | |
| 15 | KWKKS-75-11870 | COUPLER | 1002-@ | |
| 16 | KWKKS-75-11990 | NIPPLE | 1002-@ | |
| 17 | 07043-70211 | PLUG | 1002-@ | |
| 18 | KWKKS-75-71320 | TUBE | 1002-1012 | |
| 19 | KWKKS-75-71330 | TUBE | 1002-1012 | |
| 20 | 209-38-12450 | NIPPLE | 1002-1012 | |
| 21 | KWKKS-75-71340 | NIPPLE | 1002-1012 | |
| 22 | 07000-12018 | O-RING | 1002-@ | |
| 23 | 07113-00306 | HOSE | 1002-1012 | |
| 24 | 07238-10315 | CONNECTOR | 1002-1012 | |
| 25 | KWKKS-75-11790 | COUPLER | 1002-1012 | |
| 26 | KWKKS-75-11810 | COUPLER | 1002-1012 | |
| 27 | 01010-80855 | BOLT | 1002-1012 | |
| 28 | 01643-30823 | WASHER | 1002-1012 | |
| 29 | KWKKS-75-11780 | CLAMP | 1002-1012 | |
| 30 | KWKKS-75-11770 | BUSHING | 1002-1012 | |
| 31 | KWKKS-75-11620 | BRACKET | 1002-1012 | |
| 32 | 01010-81025 | BOLT | 1002-1012 | |
| 33 | 01643-31032 | WASHER | 1002-1012 | |
| 34 | 01580-11008 | NUT | 1002-1012 | |
| 35 | 07238-10315 | CONNECTOR | 1002-1012 |
