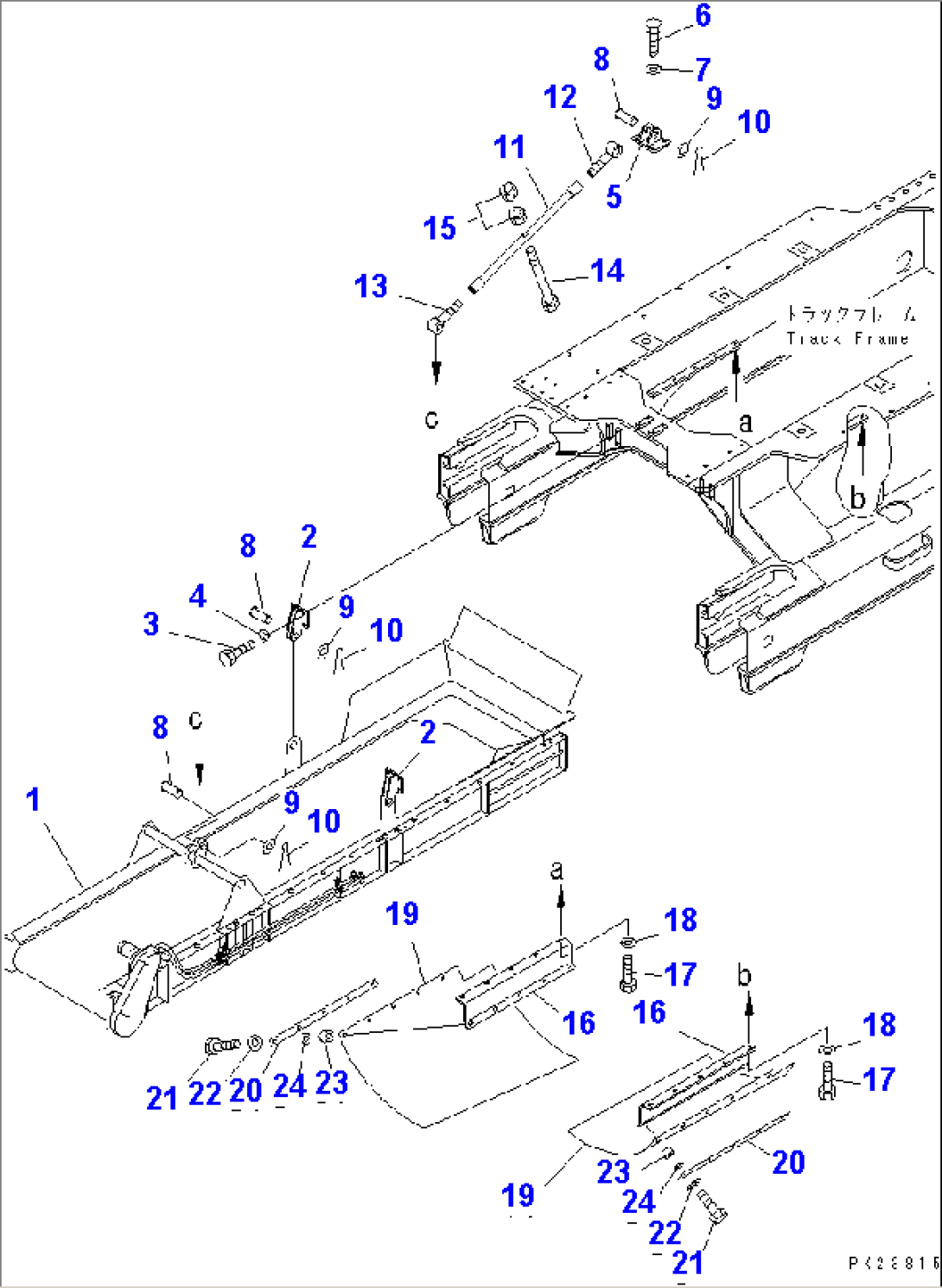

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8221-75-1113 | CONVEYOR ASS'Y | ..- | |
| 8221-75-1112 | CONVEYOR ASS'Y | .-.. | ||
| 8221-75-1111 | CONVEYOR ASS'Y | 1001-. | ||
| 2 | 8221-75-1120 | BRACKET | 1001- | |
| 3 | 01010-51230 | BOLT | 1001- | |
| 4 | 01643-31232 | WASHER | 1001- | |
| 5 | 8221-75-1130 | BRACKET | 1001- | |
| 6 | 01010-51230 | BOLT | 1001- | |
| 7 | 01643-31232 | WASHER | 1001- | |
| 8 | 22X-46-14170 | PIN | 1001- | |
| 9 | 01640-23045 | WASHER | 1001- | |
| 10 | 04050-15040 | PIN | 1001- | |
| 11 | 8221-75-1150 | JOINT | 1001- | |
| 12 | 8221-75-1140 | ROD | 1001- | |
| 13 | 8221-75-1190 | ROD | 1001- | |
| 14 | 01011-51490 | BOLT | 1001- | |
| 15 | 01580-11411 | NUT | 1001- | |
| 16 | 8221-75-1160 | BRACKET | 1001- | |
| 17 | 01010-51430 | BOLT | 1001- | |
| 18 | 01643-31445 | WASHER | 1001- | |
| 19 | 8221-75-1170 | PLATE | 1001- | |
| 20 | 8221-75-1180 | PLATE | 1001- | |
| 21 | 01010-51030 | BOLT | 1001- | |
| 22 | 01643-31032 | WASHER | 1001- | |
| 23 | 362-846-6770 | COLLAR | 1001- | |
| 24 | 567-54-11610 | SPACER | 1001- |
