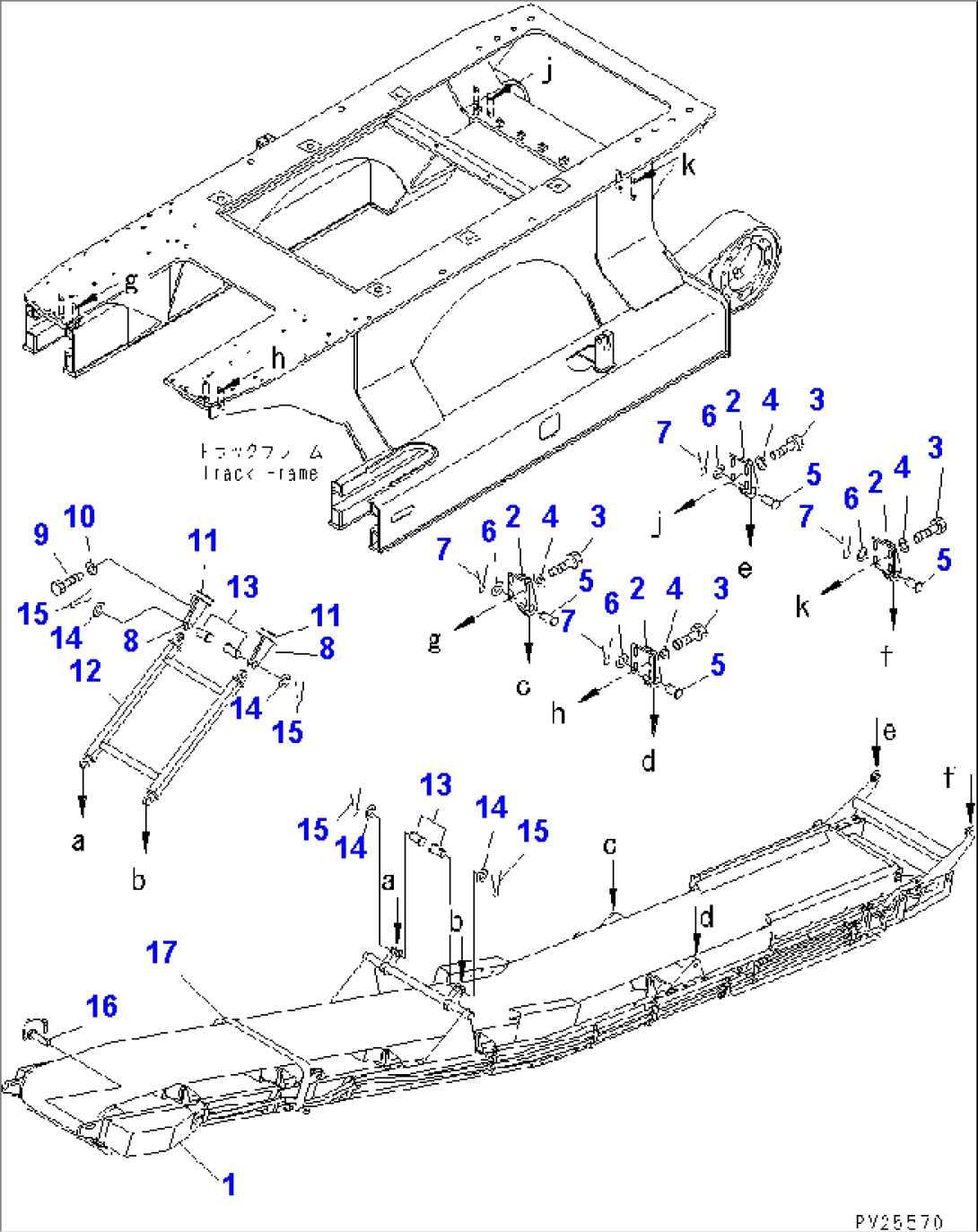

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (8206-75-6600) | CONVEYOR ASS'Y | 1101- | |
| 2 | 8221-75-1121 | BRACKET | 1002- | |
| 3 | 01010-81230 | BOLT | 1002- | |
| 4 | 01643-31232 | WASHER | 1002- | |
| 5 | 8233-75-1170 | PIN | 1002- | |
| 6 | 01640-23045 | WASHER | 1002- | |
| 7 | 04050-15040 | PIN,COTTER | 1002- | |
| 8 | 8232-75-1120 | BRACKET | 1002- | |
| 9 | 01010-81245 | BOLT | 1002- | |
| 10 | 01643-31232 | WASHER | 1002- | |
| 11 | 8206-75-4190 | SHIM | 1002- | |
| 12 | 8206-75-4160 | STAY | 1002- | |
| 13 | 8233-75-1170 | PIN | 1002- | |
| 14 | 01640-23045 | WASHER | 1002- | |
| 15 | 04050-15040 | PIN,COTTER | 1002- | |
| 16 | 8246-46-1250 | HOLDER | 1002- | |
| 17 | 8206-75-3820 | BELT,(FOR SHIPPING) | 1002- |
