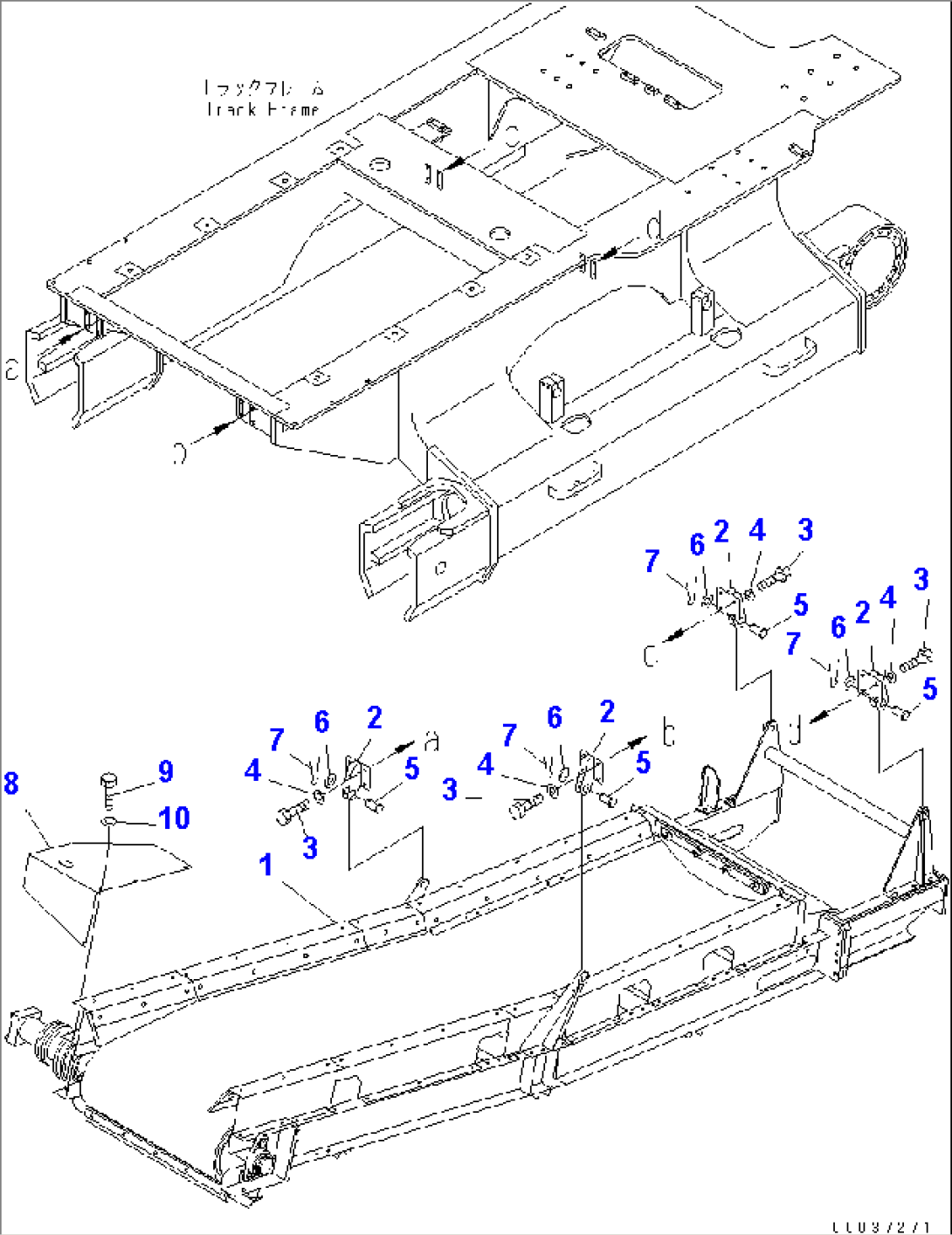

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (8261-75-1102) | CONVEYOR ASS'Y | 1101- | |
| 2 | 8221-75-1122 | BRACKET | 1001- | |
| 3 | 01010-81230 | BOLT | 1001- | |
| 4 | 01643-31232 | WASHER | 1001- | |
| 5 | 8233-75-1170 | PIN | 1001- | |
| 6 | 01640-23045 | WASHER | 1001- | |
| 7 | 04050-15040 | PIN | 1001- | |
| 8 | 8261-75-1480 | COVER | 1007- | |
| 9 | 01010-81225 | BOLT | 1122- | |
| 9 | 01010-81230 | BOLT | 1007-1121 | |
| 10 | 01643-31232 | WASHER | 1007- |
