| Item | Part No. | Part Name | Qty | Serial No. |
| (709-22-11801) | VALVE ASS'Y | 12314- | ||
| (709-22-11800) | VALVE ASS'Y | 12001-12313 | ||

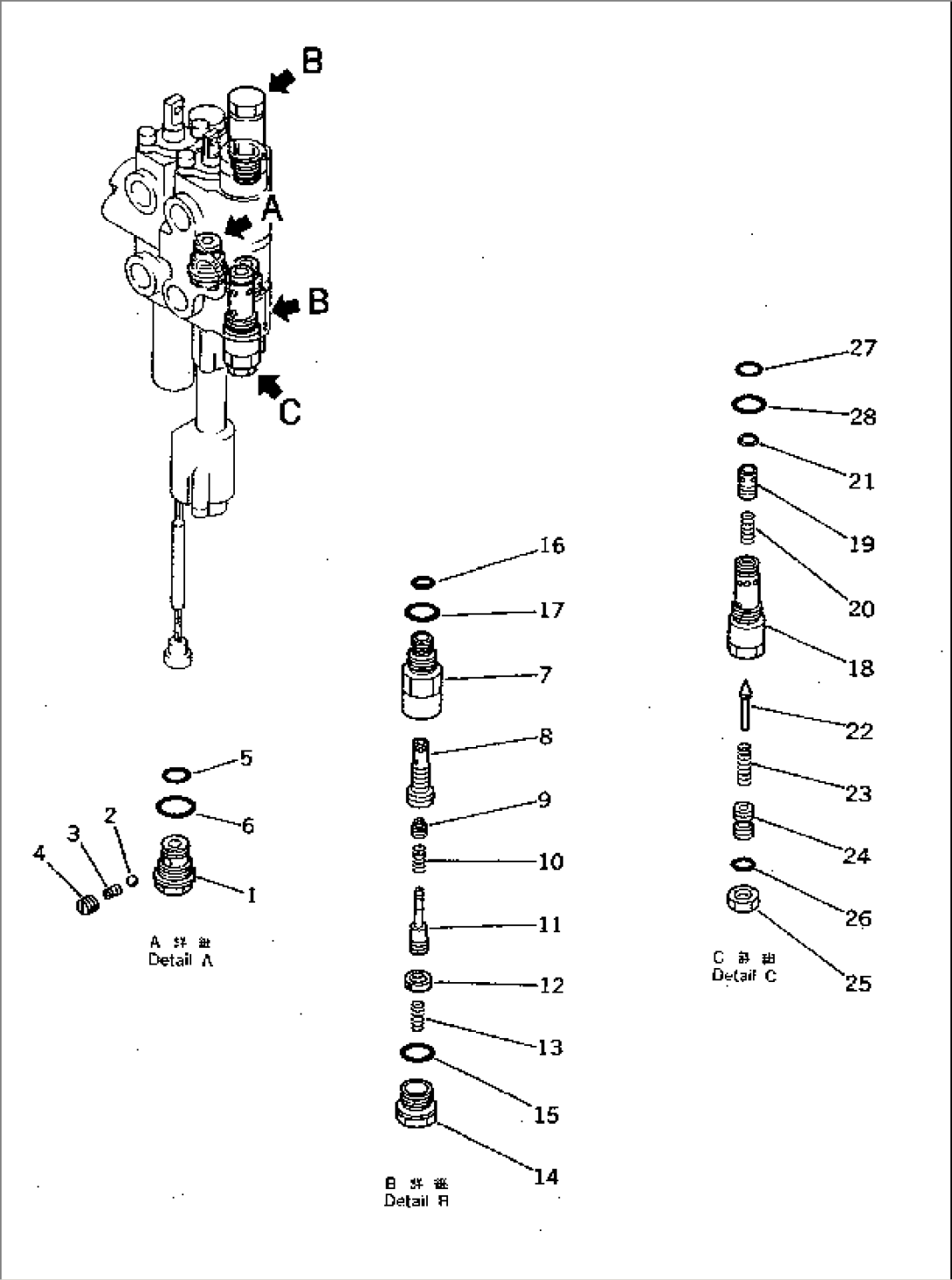

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6201A AND 6202A. | ||||
| 700-20-81000 | VALVE ASS'Y,SUCTION | 10001- | ||
| 1 | \6\ | SLEEVE | 10001- | |
| 2 | \6\ | BALL | 10001- | |
| 3 | \6\ | SPRING | 10001- | |
| 4 | \6\ | SCREW | 10001- | |
| 5 | 07000-12014 | O-RING | 10001- | |
| 6 | 07002-02434 | O-RING | 10001- | |
| 700-20-82000 | VALVE ASS'Y,SUCTION AND SAFETY | 10001- | ||
| 7 | 700-20-62110 | SLEEVE | 10001- | |
| 8 | \6\ | VALVE | 10001- | |
| 9 | \6\ | POPPET | 10001- | |
| 10 | \6\ | SPRING | 10001- | |
| 11 | \6\ | PISTON | 10001- | |
| 12 | \6\ | NUT | 10001- | |
| 13 | 700-20-62170 | SPRING | 10001- | |
| 14 | 700-20-62180 | PLUG | 10001- | |
| 15 | 07002-12434 | O-RING | 10001- | |
| 16 | 07000-12014 | O-RING | 10001- | |
| 17 | 07002-02434 | O-RING | 10001- | |
| 700-24-55000 | VALVE ASS'Y,RELIEF | 10001- | ||
| 18 | \6\ | SLEEVE | 10001- | |
| 19 | \6\ | VALVE | 10001- | |
| 20 | 700-20-51430 | SPRING | 10001- | |
| 21 | 700-20-51240 | RING,SNAP | 10001- | |
| 22 | 700-80-61190 | POPPET | 10001- | |
| 23 | 700-20-51350 | SPRING | 10001- | |
| 24 | 700-20-51340 | SCREW,ADJUST | 10001- | |
| 25 | 01583-11408 | NUT | 10001- | |
| 26 | 07000-02011 | O-RING | 10001- | |
| 27 | 700-22-11410 | O-RING | 10001- | |
| 28 | 07002-02434 | O-RING | 10001- |
