| Item | Part No. | Part Name | Qty | Serial No. |
| (700-82-83003) | CONTROL VALVE | 60171- | ||
| (\0\700-82-83002) | CONTROL VALVE | 60016-60170 | ||
| (700-82-83001) | CONTROL VALVE | 60001-60015 | ||

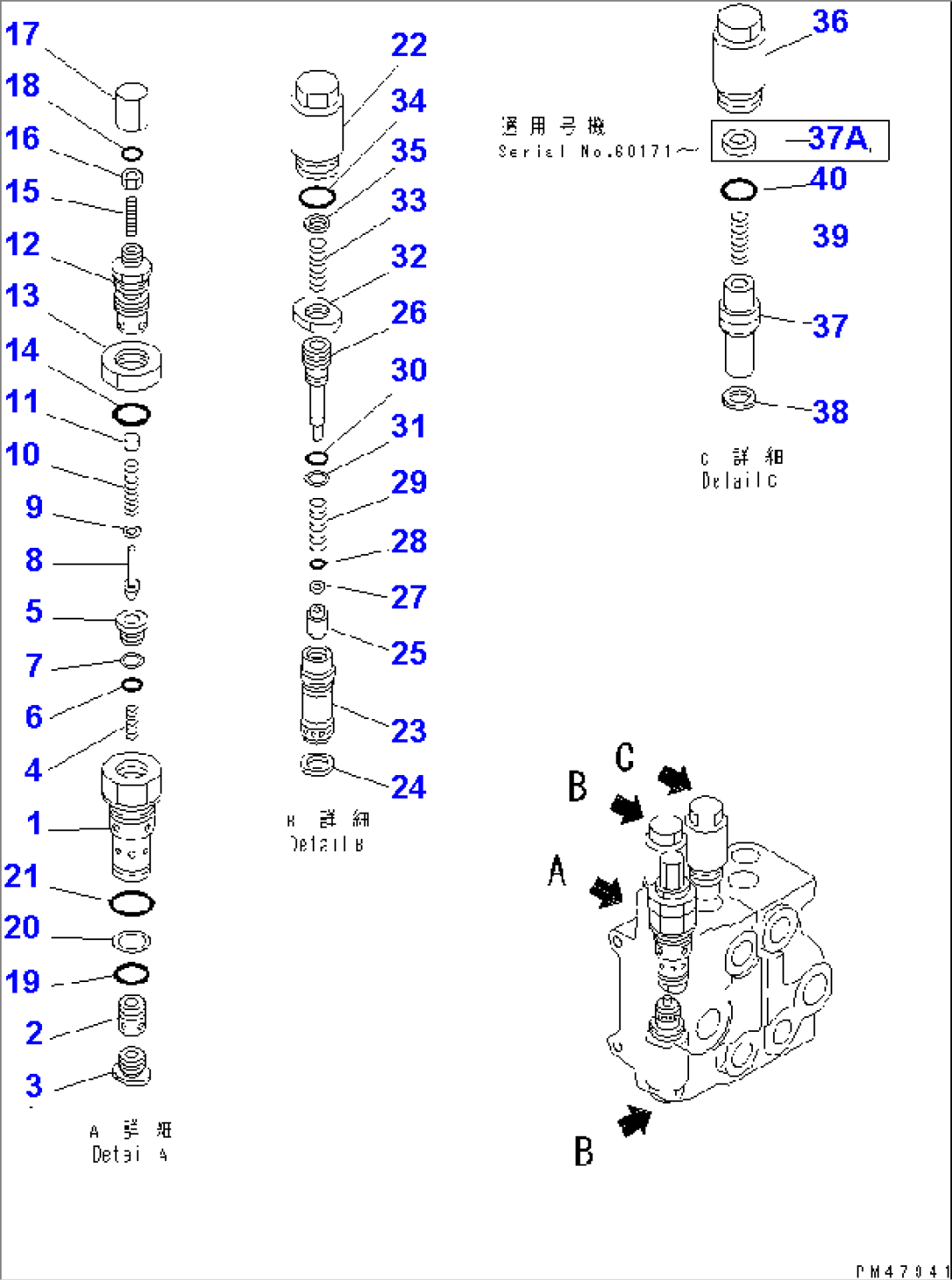

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6201 AND 6202. | ||||
| 700-89-54001 | VALVE ASS'Y,RELIEF | 60016- | ||
| 700-89-54000 | VALVE ASS'Y,RELIEF | 60001-60015 | ||
| 1 | \6\ | SLEEVE | 60001- | |
| 2 | \6\ | VALVE | 60016- | |
| \6\ | VALVE | 60001-60015 | ||
| 3 | \6\ | PLUG | 60001- | |
| 4 | 700-22-11540 | SPRING | 60001- | |
| 5 | 700-80-51170 | SEAT,VALVE | 60001- | |
| 6 | 07000-22012 | O-RING | 60001- | |
| 7 | 07001-02012 | RING,BACK-UP | 60001- | |
| 8 | 700-80-61190 | POPPET | 60001- | |
| 9 | 700-80-51240 | SPACER | 60001- | |
| 10 | 700-80-51130 | SPRING | 60001- | |
| 11 | 700-80-51230 | RETAINER | 60001- | |
| 12 | 700-80-51320 | HOLDER | 60001- | |
| 13 | 07239-12410 | NUT | 60001- | |
| 14 | 07002-02434 | O-RING | 60001- | |
| 15 | 700-10-51211 | SCREW | 60001- | |
| 16 | 01580-10605 | NUT | 60001- | |
| 17 | 700-10-51220 | COVER | 60001- | |
| 18 | 07002-01423 | O-RING | 60001- | |
| 19 | 700-13-31161 | O-RING | 60001- | |
| 20 | 700-80-51190 | RING,BACK-UP | 60001- | |
| 21 | 07002-03334 | O-RING | 60001- | |
| 700-82-63001 | VALVE ASS'Y,SUCTION AND SAFETY | 60001- | ||
| 22 | 700-80-62310 | SLEEVE | 60001- | |
| 23 | \6\ | VALVE | 60001- | |
| 24 | \6\ | SEAL | 60001- | |
| 25 | \6\ | POPPET | 60001- | |
| 26 | \6\ | PISTON | 60001- | |
| 27 | \6\ | SEAL | 60001- | |
| 28 | \6\ | O-RING | 60001- | |
| 29 | \6\ | SPRING | 60001- | |
| 30 | \6\ | O-RING | 60001- | |
| 31 | \6\ | RING,BACK-UP | 60001- | |
| 32 | \6\ | NUT | 60001- | |
| 33 | 700-80-62250 | SPRING | 60001- | |
| 34 | 07002-03034 | O-RING | 60001- | |
| 35 | 700-80-61330 | SPACER | 60001- | |
| 700-81-84000 | VALVE ASS'Y,SUCTION | 60171- | ||
| 700-81-81000 | VALVE ASS'Y,SUCTION | 60001-60170 | ||
| 36 | \6\ | SLEEVE | 60001- | |
| 37 | \6\ | VALVE | 60001- | |
| 37A | \6\ | SPACER | 60171- | |
| 38 | \6\ | SEAL | 60001- | |
| 39 | \6\ | SPRING | 60001- | |
| 40 | 07002-03034 | O-RING | 60001- |
