| Item | Part No. | Part Name | Qty | Serial No. |
| (709-12-11306) | VALVE ASS'Y | 10001-@ | ||
| (\2\709-12-11304) | VALVE ASS'Y | (10183-10343) | ||
| (\2\709-12-11303) | VALVE ASS'Y | (10001-10182) | ||

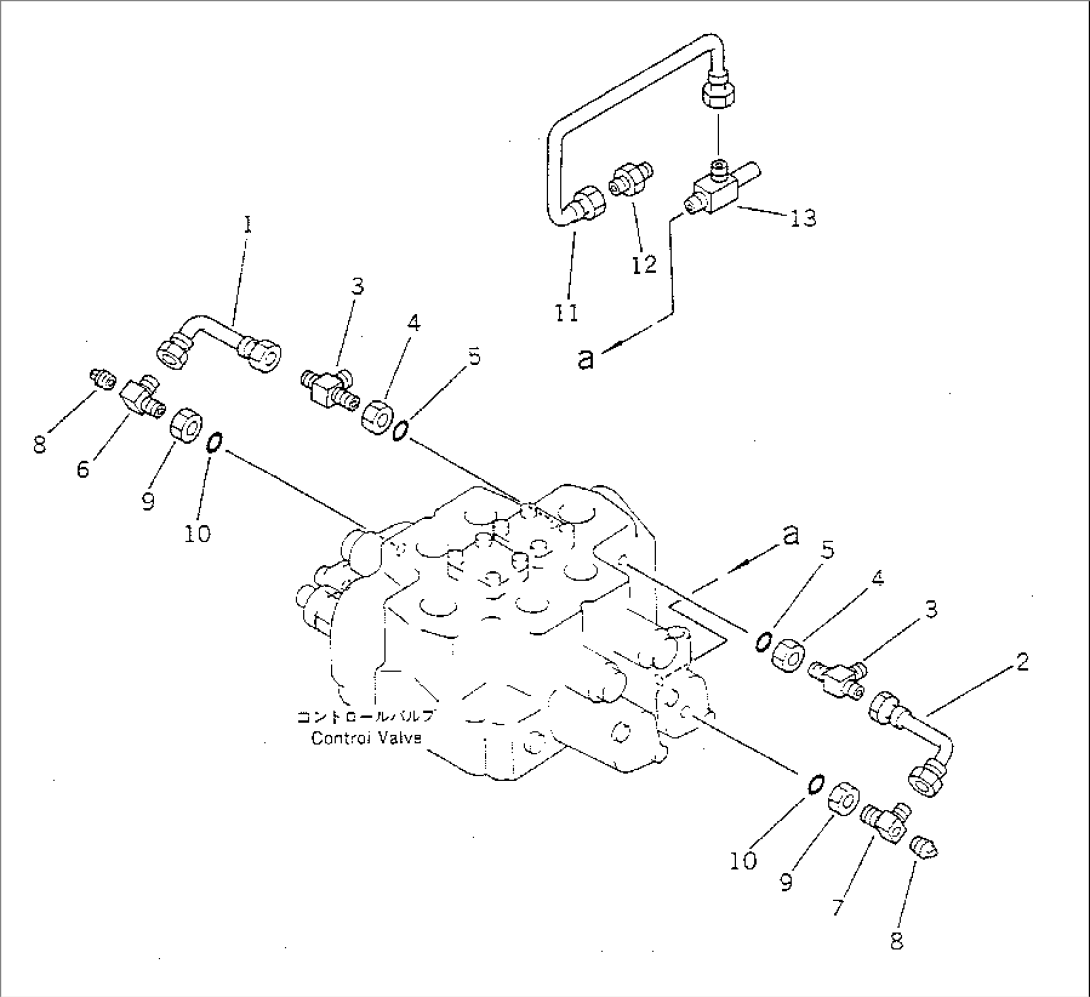

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6201 TO 6203. | ||||
| 1 | 421-62-17371 | TUBE | 10001-10343 | |
| 2 | 421-62-17381 | TUBE | 10001-10343 | |
| 3 | 207-62-16940 | TEE | 10001-10343 | |
| 4 | 07239-11408 | NUT | 10001-10343 | |
| 5 | 07002-01423 | O-RING | 10001-@ | |
| 6 | 709-12-12250 | ELBOW | 10183-10343 | |
| 6 | 709-12-11460 | ELBOW | 10001-10182 | |
| 7 | 709-12-11480 | ELBOW | 10001-10343 | |
| 8 | 07042-30108 | PLUG | 10001-@ | |
| 9 | 07239-11408 | NUT | 10001-10343 | |
| 10 | 07002-01423 | O-RING | 10001-@ | |
| 11 | 421-62-14630 | TUBE | 10001-@ | |
| 12 | 208-06-11220 | NIPPLE | 10001-@ | |
| 13 | 421-62-14620 | TEE | 10001-@ |
