| Item | Part No. | Part Name | Qty | Serial No. |
| (709-12-12500) | VALVE ASS'Y | 10881- | ||
| (709-12-11306) | VALVE ASS'Y | 10344-10880 | ||
| (\2\709-12-11305) | VALVE ASS'Y | (10344-10755) | ||

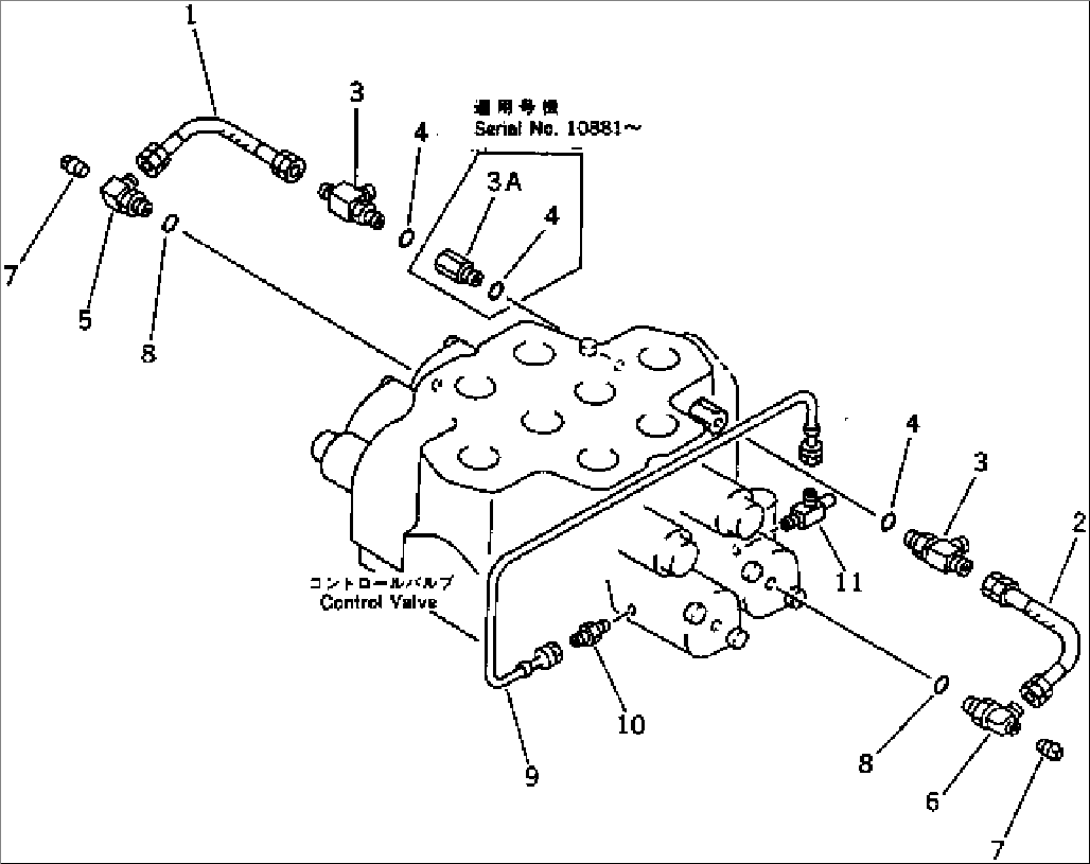

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6201A TO 6203A. | ||||
| 1 | 709-12-12720 | HOSE | 10881- | |
| 1 | 709-12-12220 | HOSE | 10001-10880 | |
| 2 | 709-12-12720 | HOSE | 10881- | |
| 2 | 709-12-12210 | HOSE | 10001-10880 | |
| 3 | 709-12-12740 | TEE | 10881- | |
| 3 | 709-12-12350 | TEE | 10344-10880 | |
| 3A | 709-12-12260 | NIPPLE | 10881- | |
| 4 | 07002-01423 | O-RING | 10881- | |
| 4 | 07002-01423 | O-RING | 10001-10880 | |
| 5 | 709-12-12760 | ELBOW | 10881- | |
| 5 | 709-12-12360 | ELBOW | 10344-10880 | |
| 6 | 07235-50315 | ELBOW | 10881- | |
| 6 | 709-12-12380 | ELBOW | 10344-10880 | |
| 7 | 07042-30108 | PLUG | 10001- | |
| 8 | 07002-02034 | O-RING | 10881- | |
| 8 | 07002-01423 | O-RING | 10001-10880 | |
| 9 | 421-62-14630 | TUBE | 10001- | |
| 10 | 208-06-11220 | NIPPLE | 10001- | |
| 11 | 421-62-14620 | TEE | 10001- |
