| Item | Part No. | Part Name | Qty | Serial No. |

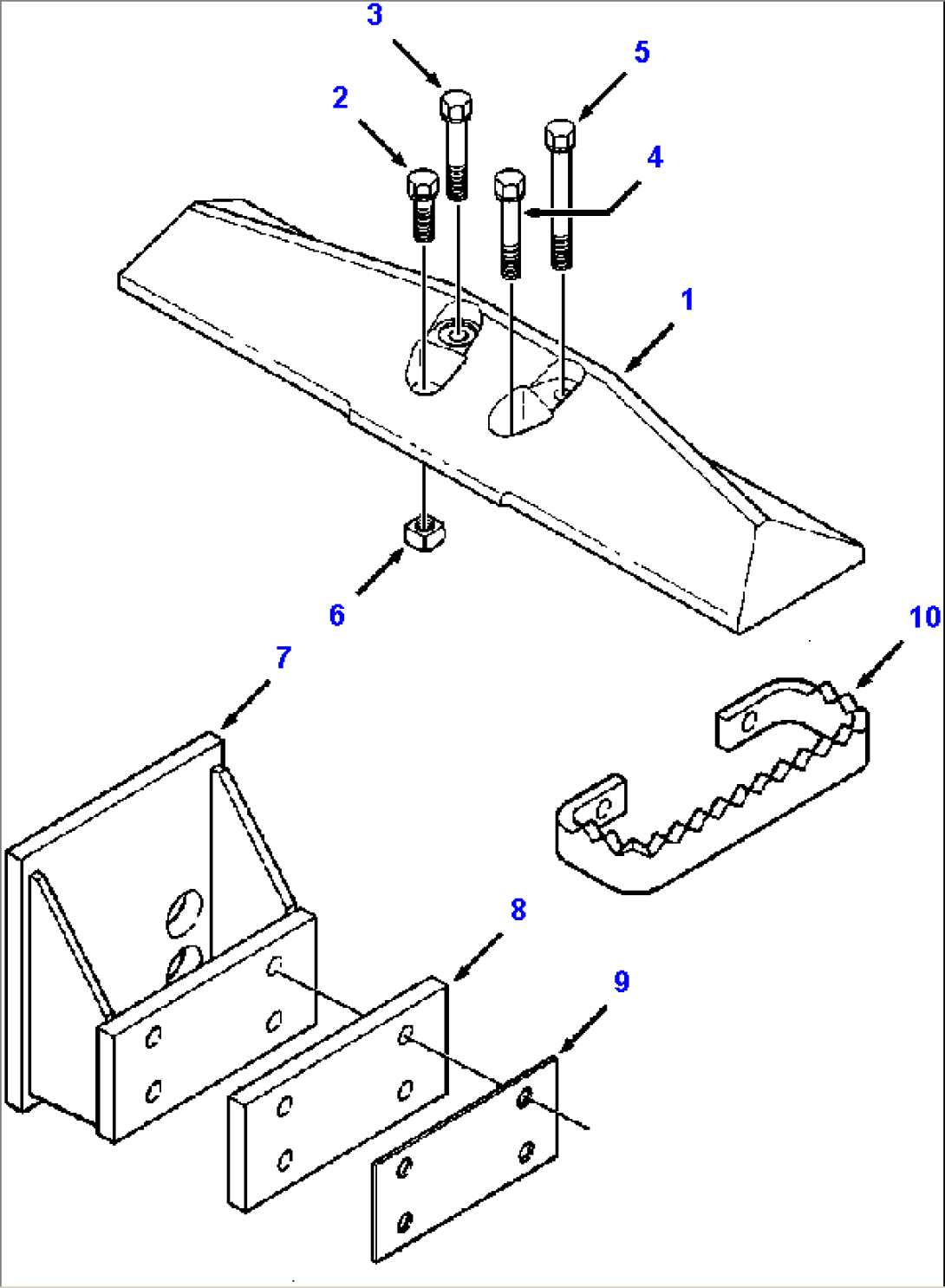

| (1283 180 H91) | SWAMP TRACK SHOES | |||
| 1 | 1243 442 H1 | SHOE, TRACK | ||
| 2 | 616 199 C4 | BOLT, CHAIN LINK - SHORT | ||
| 3 | 1236 990 H2 | BOLT, CHAIN LINK - LONG | ||
| 4 | 1236 990 H2 | BOLT, MASTER LINK - SHORT | ||
| 5 | 1245 074 H2 | BOLT, MASTER LINK - LONG | ||
| 6 | 616 200 C1 | NUT, TRACK SHOE | ||
| 7 | 1258 970 H91 | BAR, C-FRAME RUB | ||
| 24 876 R1 | BOLT, HEX - 5/8NCx2-1/4 | |||
| 25 547 R1 | WASHER, FLAT - 5/8 | |||
| 8 | 1271 387 H1 | PLATE, RUB BAR SPACER | ||
| 9 | 1258 997 H1 | SHIM, RUB BAR | ||
| 10 | 1281 017 H1 | STEP, FOOT | ||
| 24 874 R1 | BOLT, HEX - 5/8NCx1-3/4 | |||
| 25 537 R1 | WASHER, FLAT - 5/8 | |||
| 25 528 R1 | NUT, HEX - 5/8NC | |||
| F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY. | ||||
