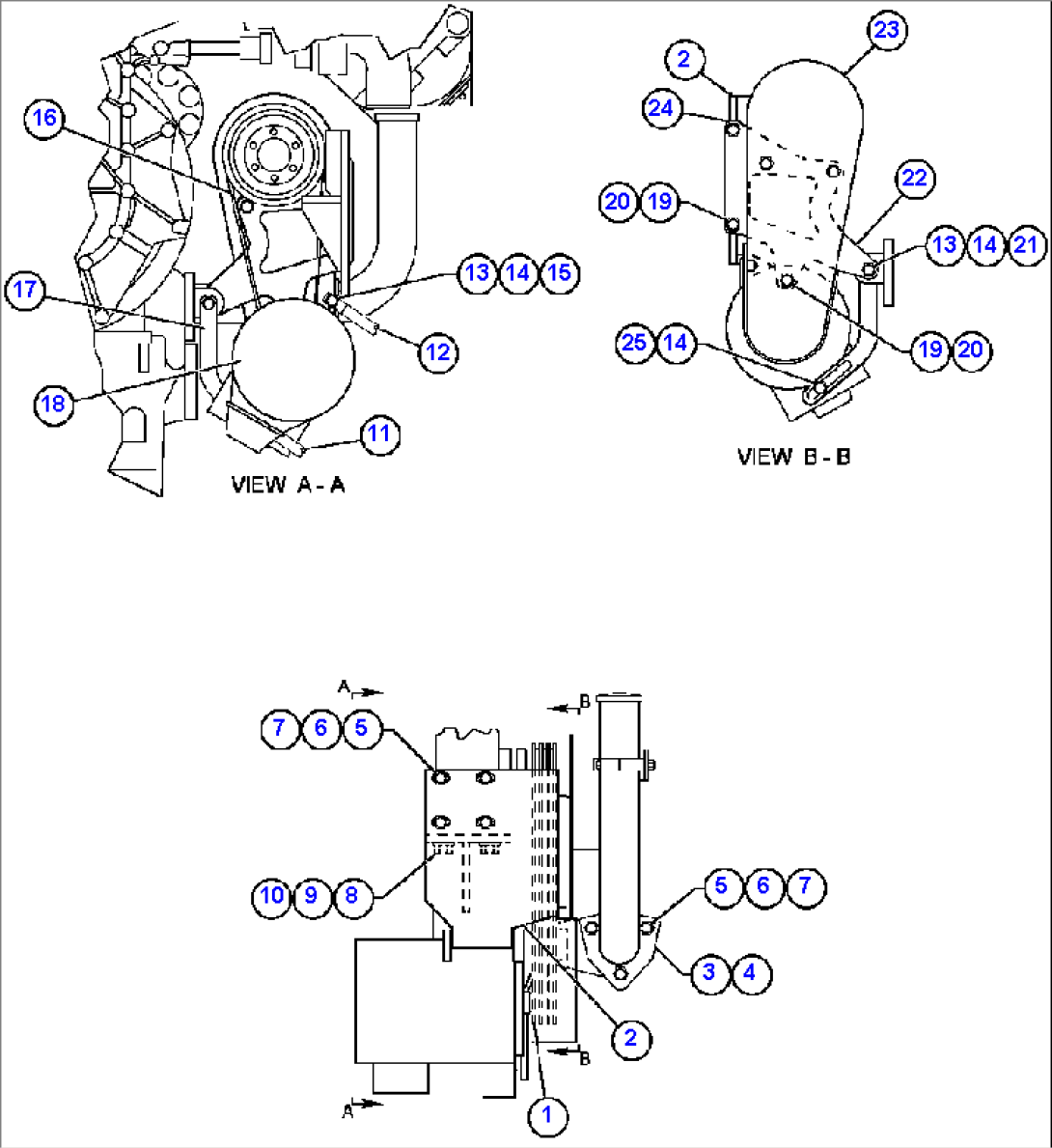

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EF5370 | PULLEY | ||
| 2 | EG3014 | MOUNTING, PLATE | ||
| 3 | EF5371 | BRACKET, ALT. MOUNTING | ||
| 4 | EF8701 | GASKET | ||
| 5 | MM0067 | CAPSCREW - M10 X 1.50 X .50 | ||
| 6 | MM0704 | FLAT WASHER - M10 (HARDENED) | ||
| 7 | MM0471 | LOCKWASHER - M10 | ||
| 8 | MM0071 | CAPSCREW - M16 X 2.00 X 45 | ||
| 9 | MM0706 | FLAT WASHER - M16 (HARDENED) | ||
| 10 | MM0474 | LOCKWASHER - M16 | ||
| 11 | CH2704 | CABLE | ||
| 12 | CH2707 | CABLE | ||
| 13 | VN9187 | CAPSCREW - 1/2" - 13NC X 6 1/2" - G8 | ||
| 14 | WA0360 | FLAT WASHER - 1/2" | ||
| 15 | VG7811 | NUT, LOCK - 1/2" | ||
| 16 | PB9702 | V-BELT | ||
| 17 | EF5374 | BRACKET, TENSIONER | ||
| 18 | EF2654 | ALTERNATOR (SEE INDEX) | ||
| 19 | DC7524 | CAPSCREW - 3/8" - 16NC X 7/8" | ||
| 20 | C0312 | LOCKWASHER - 3/8" | ||
| 21 | C1617 | CAPSCREW - 1/2" - 13NC X 2 1/4" | ||
| 22 | EF8447 | MOUNTING, BELT GUARD | ||
| 23 | EF8445 | GUARD, BELT | ||
| 24 | EF8443 | BLOCK, TAPPED | ||
| 25 | C1612 | CAPSCREW - 1/2" - 13NC X 1" |
