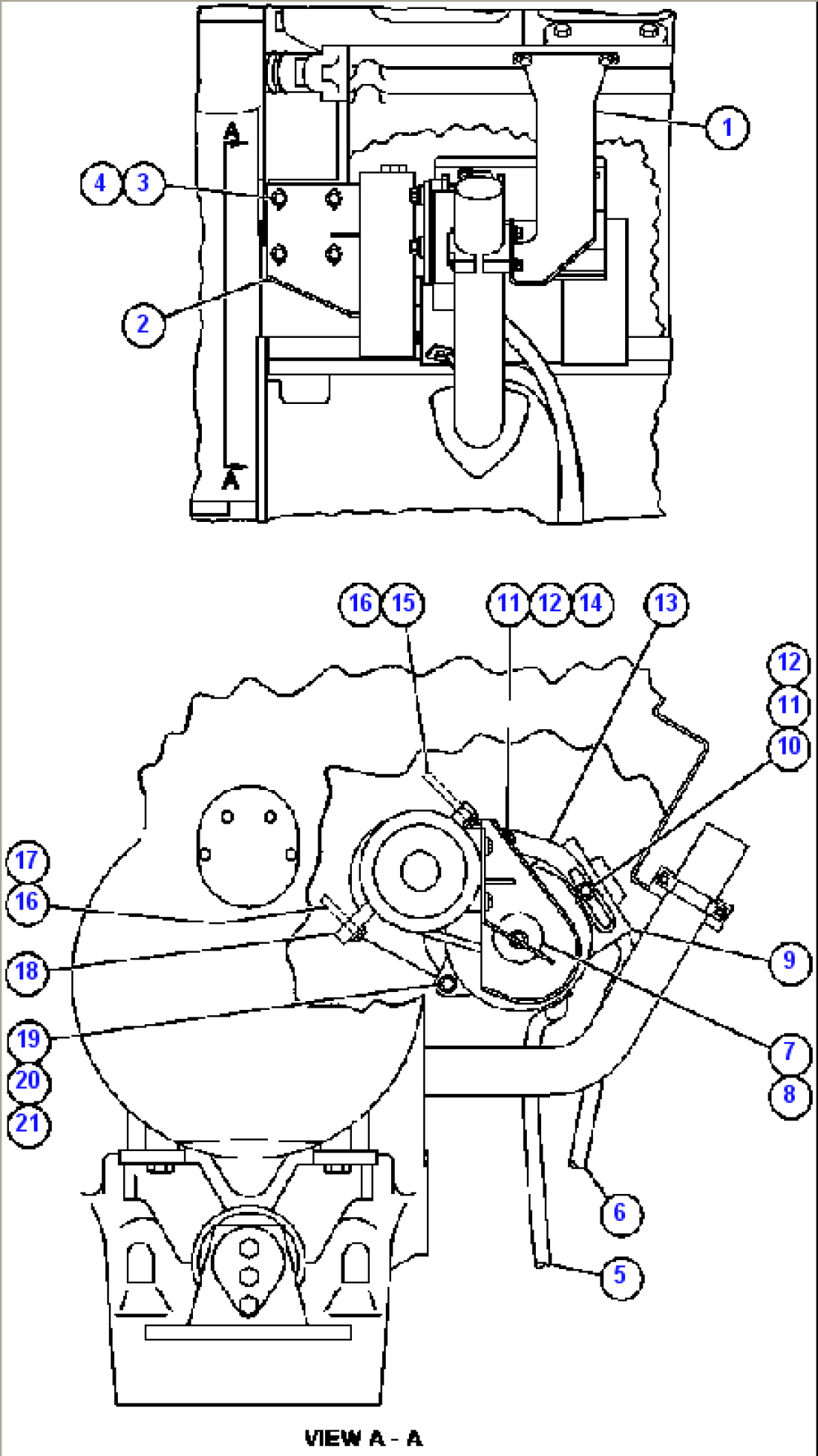

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EG6235 | BRACKET | ||
| 2 | EG4840 | GUARD, FAN | ||
| 3 | MM0604 | CAPSCREW - M10 X 1.50 X 20 | ||
| 4 | MM0461 | FLAT WASHER - M10 | ||
| 5 | CH2707 | CABLE, BATTERY | ||
| 6 | CH2704 | CABLE, BATTERY | ||
| 7 | PC0223 | BELT | ||
| 8 | EF5370 | PULLEY | ||
| 9 | EF2654 | ALTERNATOR, 24V (SEE INDEX) | ||
| 10 | C1613 | CAPSCREW - 1/2" - 13NC X 1 1/4" | ||
| 11 | DD5640 | FLAT WASHER - 1/2" | ||
| 12 | TR5445 | LOCKWASHER - 1/2" | ||
| 13 | EG4845 | BRACKET, TENSION | ||
| 14 | C1616 | CAPSCREW - 1/2" - 13NC X 2" | ||
| 15 | MM0626 | CAPSCREW - M12 X 1.75 X 90 | ||
| 16 | MM0705 | FLAT WASHER - M12 | ||
| 17 | MM0624 | CAPSCREW - M12 X 1.75 X 70 | ||
| 18 | EG4835 | PLATE, MOUNTING | ||
| 19 | VN9187 | CAPSCREW - 1/2" - 13NC X 6 1/2" | ||
| 20 | WA0360 | FLAT WASHER - 1/2" (HARDENED) | ||
| 21 | VG7811 | NUT, LOCK - 1/2" |
