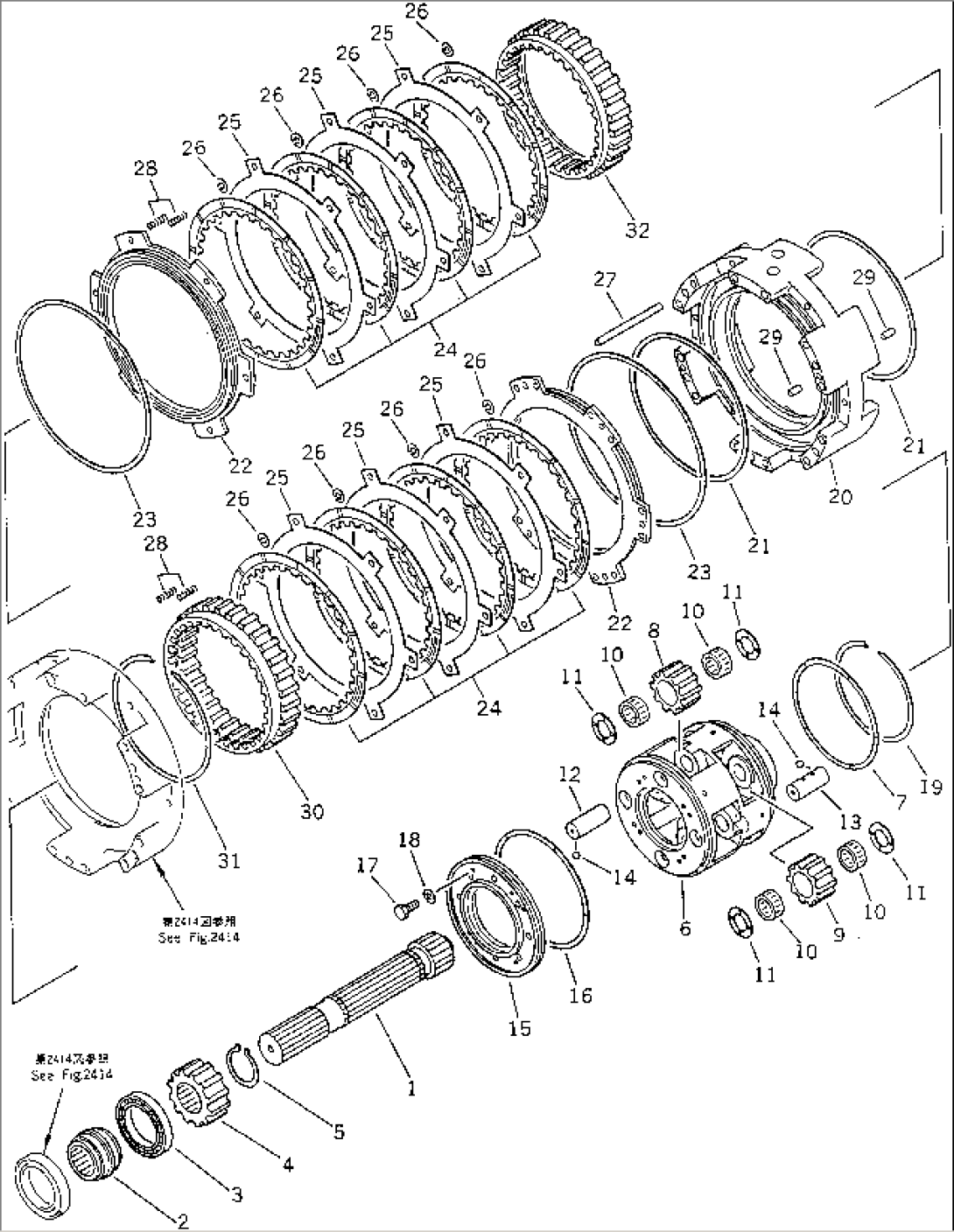

| Item | Part No. | Part Name | Qty | Serial No. |
| (566-15-00600) | TORQFLOW ASS'Y | 2001-2206 | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2231 TO 2424. | ||||
| (566-15-00019) | TRANSMISSION ASS'Y | (1579)- | ||
| (566-15-00018) | TRANSMISSION ASS'Y | 2001-(1578) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2401 TO 2424. | ||||
| (566-15-00630) | TRANSMISSION ASS'Y | 2001-(1578) | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2401 TO 2416. | ||||
| 1 | 566-15-62120 | SHAFT | 2001- | |
| 2 | 566-15-62191 | SPACER | 2001- | |
| 3 | 569-15-39630 | BEARING | 2001- | |
| 4 | 566-15-62250 | GEAR | 2001- | |
| 5 | 04064-07025 | RING,SNAP | 2001- | |
| 6 | 566-15-62351 | CARRIER | 2001- | |
| 7 | 566-15-69280 | RING,SEAL | 2001- | |
| 8 | 566-15-62440 | GEAR | 2001- | |
| 9 | 566-15-62450 | GEAR | 2001- | |
| 10 | 566-15-69420 | BEARING | 2001- | |
| 11 | 561-15-32570 | WASHER,THRUST | 2001- | |
| 12 | 566-15-62540 | SHAFT | 2001- | |
| 13 | 566-15-62550 | SHAFT | 2001- | |
| 14 | 04260-00635 | BALL | 2001- | |
| 15 | 566-15-62391 | COVER | 2001- | |
| 16 | 566-15-69290 | RING,SEAL | 2001- | |
| 17 | 01010-51030 | BOLT | 2001- | |
| 18 | 01643-31032 | WASHER | 2001- | |
| 19 | 232-15-19530 | RING,SNAP | 2001- | |
| 20 | 566-15-61130 | HOUSING,2ND AND 1ST | 2001- | |
| 21 | 562-15-19330 | RING,SEAL (K3) | 2001- | |
| 22 | 566-15-62761 | PISTON,2ND AND 1ST | 2001- | |
| 23 | 198-15-29230 | RING,SEAL (K3) | 2001- | |
| 24 | 569-15-32721 | DISC | (1338)- | |
| 569-15-32720 | DISC | 2001-(1337) | ||
| 25 | 566-15-62732 | PLATE | (1636)- | |
| \1\566-15-62731 | PLATE | .-(1635) | ||
| \0\566-15-62730 | PLATE | 2001-. | ||
| 26 | 175-15-42880 | SPRING | 2001- | |
| 27 | 281-15-11370 | PIN | 2001- | |
| 28 | 135-15-32920 | SPRING | 2001- | |
| 29 | 04020-01434 | PIN,DOWEL | 2001- | |
| 30 | 566-15-62620 | GEAR,RING | 2001- | |
| 31 | 566-15-69510 | RING | 2001- | |
| 32 | 566-15-62610 | GEAR | 2001- |
