| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (561-15-00503) | TRANSMISSION ASS'Y | (1850)- | ||
| (561-15-00502) | TRANSMISSION ASS'Y | (1322)-(1849) | ||
| (561-15-00501) | TRANSMISSION ASS'Y | (1191)-(1321) | ||
| (561-15-00500) | TRANSMISSION ASS'Y | 1501-(1190) | ||

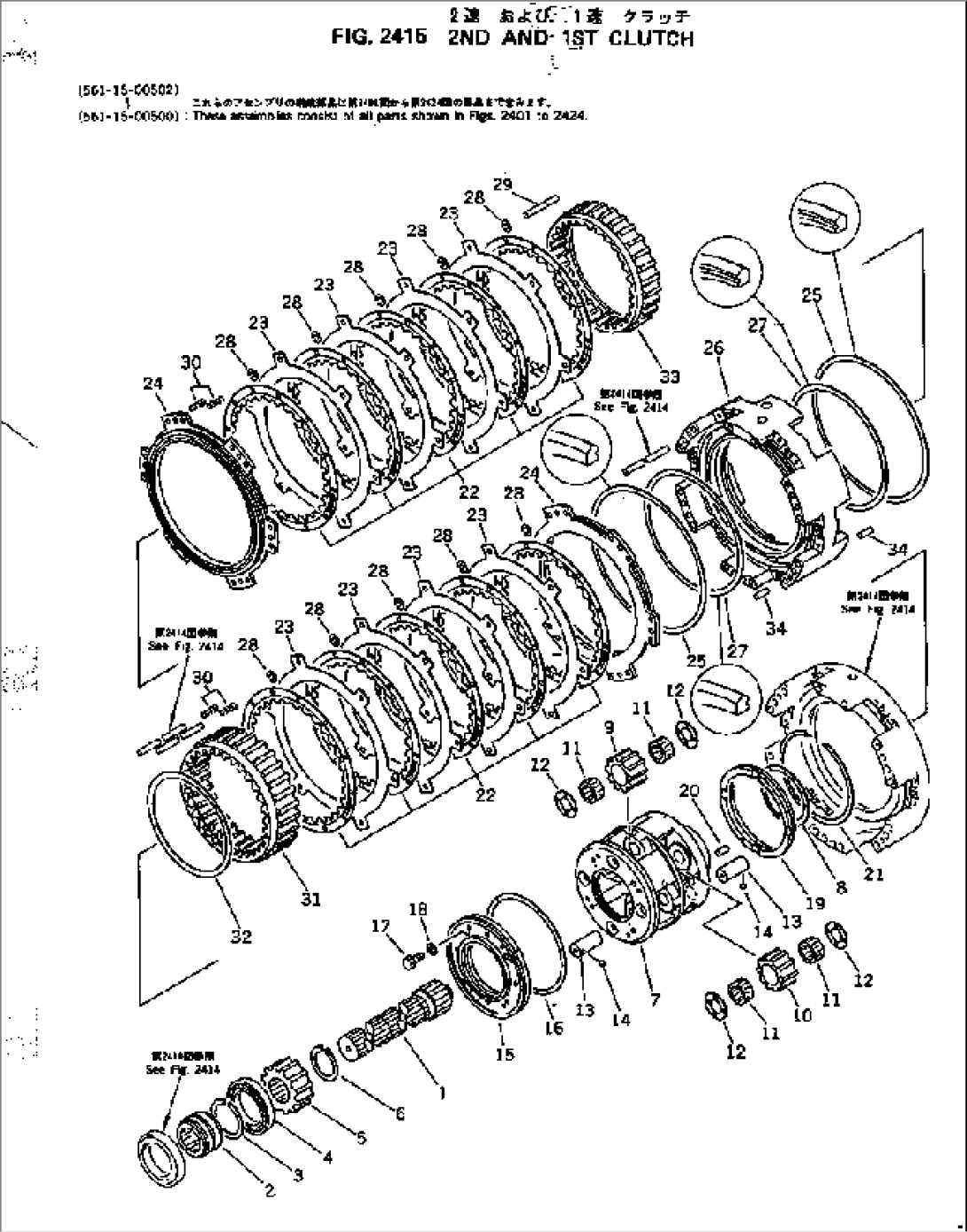

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2401 TO 2424. | ||||
| 1 | 561-15-42121 | SHAFT | (1197)- | |
| \0\561-15-42120 | SHAFT | 1501-(1196) | ||
| 2 | 569-15-32191 | SPACER | 1501- | |
| 3 | 569-15-39520 | RING,SNAP | 1501- | |
| 4 | 569-15-39620 | BEARING | 1501- | |
| 5 | 561-15-42250 | GEAR | 1501- | |
| 6 | 04064-07025 | RING,SNAP | 1501- | |
| 7 | 561-15-42350 | CARRIER | 1501- | |
| 8 | 195-15-49220 | RING,SEAL | 1501- | |
| 9 | 561-15-42440 | GEAR | 1501- | |
| 10 | 561-15-42450 | GEAR | 1501- | |
| 11 | 561-15-49420 | BEARING | 1501- | |
| 12 | 561-15-42560 | WASHER,THRUST | 1501- | |
| 13 | 561-15-42540 | SHAFT | 1501- | |
| 14 | 04260-00635 | BALL | 1501- | |
| 15 | 561-15-42390 | COVER | 1501- | |
| 16 | 198-15-29271 | RING,SEAL | 1501- | |
| 17 | 01010-51030 | BOLT | 1501- | |
| 18 | 01643-31032 | WASHER | 1501- | |
| 19 | 561-15-42360 | BUSHING | 1501- | |
| 20 | 04020-00820 | PIN,DOWEL | 1501- | |
| 21 | 561-15-49510 | RING,SNAP | 1501- | |
| 22 | 561-15-42711 | DISC | 1501- | |
| (\2\561-15-42710) | DISC | (1501-(1299)) | ||
| 23 | 561-15-52950 | PLATE | (1362)- | |
| \1\561-15-42730 | PLATE | 1501-(1361) | ||
| 24 | 561-15-42760 | PISTON,2ND AND 1ST | 1501- | |
| 25 | 175-15-59240 | RING,SEAL (KIT) | 1501- | |
| 26 | 561-15-41130 | HOUSING,2ND AND 1ST | 1501- | |
| 27 | 195-15-39220 | RING,SEAL (KIT) | 1501- | |
| 28 | 195-15-12880 | SPRING | 1501- | |
| 29 | 561-15-41280 | PIN | 1501- | |
| 30 | 425-15-12920 | SPRING¤ (L= 68.0) | 1501- | |
| 31 | 561-15-42621 | GEAR,RING | 1501- | |
| 32 | 561-15-49520 | RING | 1501- | |
| 33 | 561-15-42610 | GEAR | 1501- | |
| 34 | 04020-01842 | PIN,DOWEL | 1501- |
