| Item | Part No. | Part Name | Qty | Serial No. |

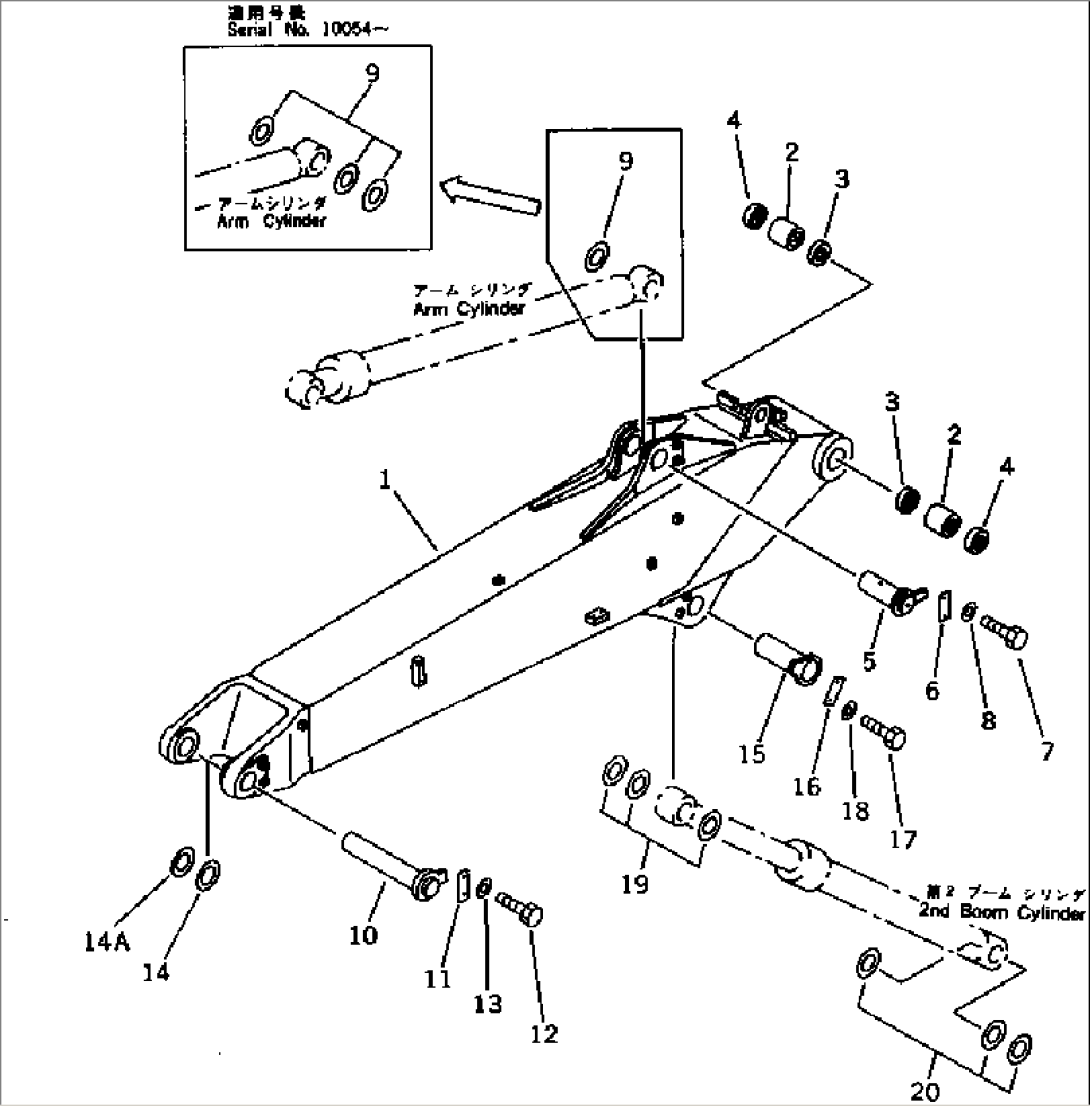

| G-1 | (\8\22B-70-X1000) | BOOM GROUP | 10001- | |
| ==================== | ||||
| 22B-70-00020 | BOOM ASS'Y | 10001- | ||
| 1 | \6\ | BOOM,SECOND | 10001- | |
| 2 | 21K-70-12161 | BUSHING | 10001- | |
| 3 | 07145-00080 | SEAL,DUST | 10001- | |
| 4 | 07145-00080 | SEAL,DUST | 10001- | |
| 5 | 203-70-41192 | PIN | 10001- | |
| 6 | 205-70-66580 | PLATE | 10001- | |
| 7 | 01010-51230 | BOLT | 10001- | |
| 8 | 01643-31232 | WASHER | 10001- | |
| 9 | 203-70-24170 | SPACER¤ 1.0MM | 10054- | |
| 203-70-24170 | SPACER¤ 1.0MM | 10001-10053 | ||
| 10 | 203-70-41311 | PIN | 10001- | |
| 11 | 205-70-66580 | PLATE | 10001- | |
| 12 | 01010-51230 | BOLT | 10001- | |
| 13 | 01643-31232 | WASHER | 10001- | |
| 14 | 203-70-11210 | SPACER¤ 1.0MM | 10001- | |
| 14A | 203-70-34270 | SPACER¤ 0.5MM | 10001- | |
| 15 | 205-70-71320 | PIN | 10001- | |
| 16 | 205-70-66580 | PLATE | 10001- | |
| 17 | 01010-51235 | BOLT | 10001- | |
| 18 | 01643-31232 | WASHER | 10001- | |
| 19 | 205-70-51520 | SPACER¤ 1.0MM | 10001- | |
| 20 | 203-70-24170 | SPACER¤ 1.0MM | 10001- | |
| ==================== |
