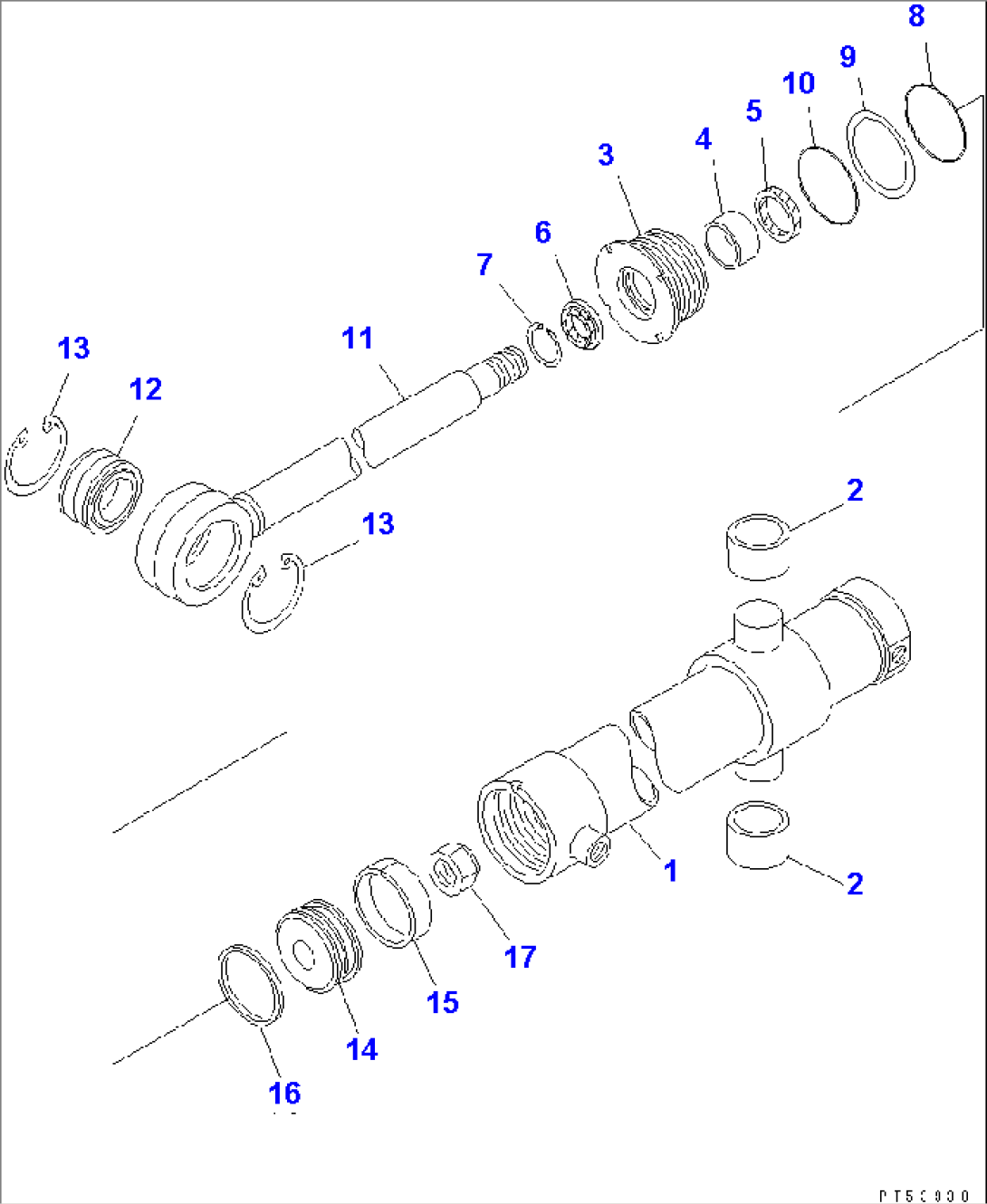

| Item | Part No. | Part Name | Qty | Serial No. |
| 234-63-28200 | CYLINDER ASS'Y,POWER TILT | 12001-@ | ||
| 1 | 23C-63-28140 | CYLINDER | 12001-@ | |
| 2 | 154-63-12340 | BUSHING | 12001-@ | |
| 3 | 707-29-10920 | HEAD,CYLINDER | 12001-@ | |
| 4 | 07177-05030 | BUSHING | 12001-@ | |
| 5 | 707-51-50210 | PACKING,ROD | 12001-@ | |
| 6 | 07016-20507 | SEAL,DUST | 12001-@ | |
| 7 | 07179-12062 | RING,SNAP | 12001-@ | |
| 8 | 07000-12095 | O-RING | 12001-@ | |
| 9 | 07001-02095 | RING,BACK-UP | 12001-@ | |
| 10 | 07000-02100 | O-RING | 12001-@ | |
| 11 | 23C-63-28120 | ROD,PISTON | 12001-@ | |
| 12 | 707-46-06010 | BUSHING | 12001-@ | |
| 13 | 04065-09030 | RING,SNAP | 12001-@ | |
| 14 | 707-36-10911 | PISTON | 12001-@ | |
| 15 | 07155-01025 | RING,WEAR | 12001-@ | |
| 16 | 707-44-10070 | RING,PISTON | 12001-@ | |
| 17 | 07165-13336 | NUT | 12001-@ |
