| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (144-15-00014) | TRANSMISSION ASS'Y | 31001-34000 | |
| 1 | (144-15-00015) | TRANSMISSION ASS'Y | 34001- | |

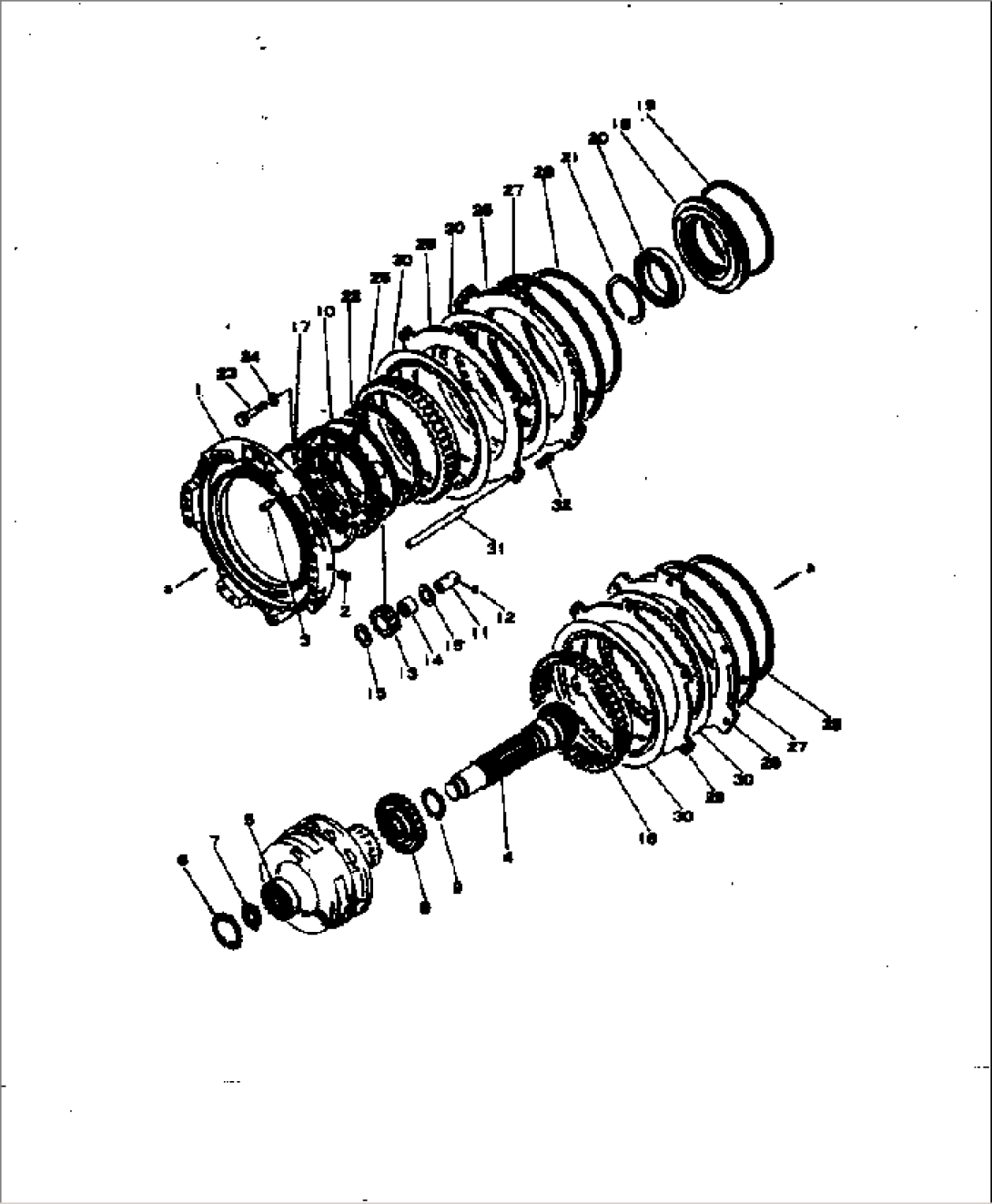

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.1251A TO 1265A. | ||||
| 1 | 145-15-00110 | HOUSING ASS'Y | 31001- | |
| 1 | \6\ | HOUSING | 31001- | |
| 2 | 145-14-11320 | PLUG | 31001- | |
| 3 | 04020-01228 | PIN | 31001- | |
| 4 | 144-15-22172 | SHAFT | 31001- | |
| 5 | 06042-02209 | BEARING | 31001- | |
| 6 | 04065-08530 | RING | 31001- | |
| 7 | 145-15-42280 | RING | 31001- | |
| 8 | 145-15-42160 | GEAR | 31001- | |
| 9 | 04064-06525 | RING | 31001- | |
| 10 | 145-15-42380 | CARRIER | 31001- | |
| 11 | 145-15-42540 | SHAFT | 31001- | |
| 12 | 04260-00635 | BALL | 31001- | |
| 13 | 145-15-42440 | GEAR | 31001- | |
| 14 | 09232-03225 | BEARING | 31001- | |
| 15 | 144-15-22571 | WASHER | 31001- | |
| 16 | 145-15-42630 | GEAR | 31001- | |
| 17 | 154-15-12670 | RING | 31001- | |
| 18 | 145-15-42290 | COVER | 31001- | |
| 19 | 07018-12455 | RING | 31001- | |
| 20 | 130-09-13770 | BEARING | 31001- | |
| 21 | 130-09-16890 | RING | 31001- | |
| 22 | 234-15-12350 | RING | 31001- | |
| 23 | 01010-31060 | BOLT | 31001- | |
| 24 | 01602-01030 | WASHER | 31001- | |
| 25 | 145-15-42640 | GEAR | 31001- | |
| 26 | 145-15-42740 | PISTON | 31001- | |
| 27 | 144-15-22871 | RING | 31001- | |
| 28 | 144-15-22881 | RING | 31001- | |
| 29 | 145-15-42760 | PLATE | 31001- | |
| 30 | 154-15-12715 | DISC | 31001- | |
| 31 | 144-15-22760 | PIN | 31001- | |
| 32 | 170-14-22330 | SPRING | 31001- |
