| Item | Part No. | Part Name | Qty | Serial No. |
| (417-15-11070) | TRANSMISSION ASS'Y | 10001- | ||

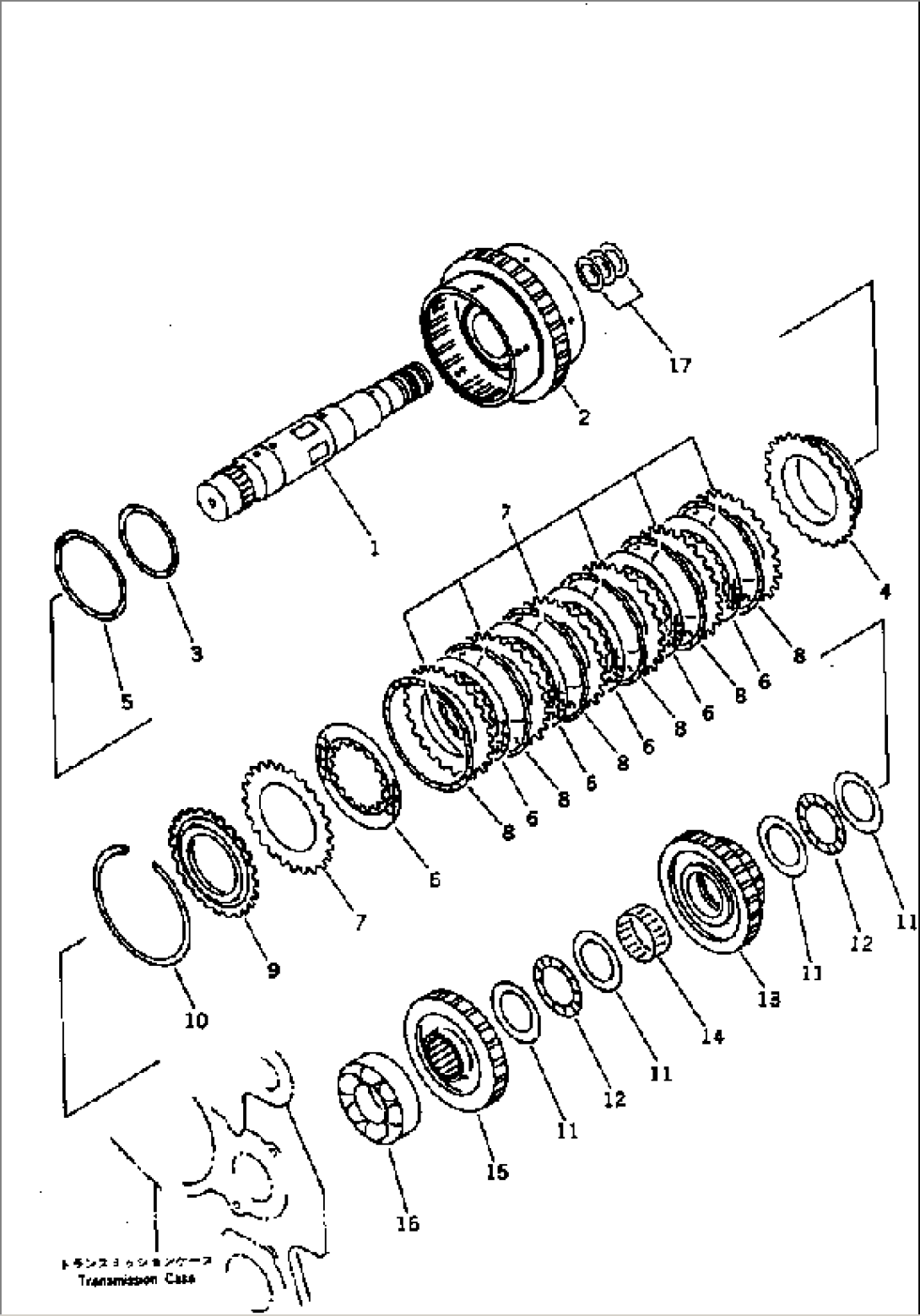

| 417-15-13301 | CLUTCH ASS'Y,2ND AND 3RD | 10001- | ||
| 417-15-13311 | HOUSING ASS'Y | 10001- | ||
| 1 | \6\ | SHAFT | 10001- | |
| 2 | \6\ | HOUSING | 10001- | |
| 3 | 419-15-12210 | RING,SEAL (KIT) | 10001- | |
| 4 | 419-15-13191 | PISTON | 10001- | |
| 5 | 419-15-12580 | RING,SEAL (KIT) | 10001- | |
| 6 | 419-15-12290 | DISC | 10001- | |
| 7 | 419-15-12310 | PLATE,SEPARATE | 10001- | |
| 8 | 56D-15-12710 | SPRING,WAVE | 75075- | |
| 8 | \0\419-15-12133 | SPRING,WAVE | 10001-75074 | |
| 9 | 419-15-12280 | PLATE,END | 10001- | |
| 10 | 419-15-12140 | RING,SNAP | 10001- | |
| 11 | 419-15-12680 | WASHER,THRUST | 10001- | |
| 12 | 419-15-12670 | BEARING,THRUST | 10001- | |
| 13 | 417-15-13222 | GEAR, 39 TEETH,2ND | 10001- | |
| 14 | 419-15-13150 | BEARING | 10001- | |
| 15 | 417-15-13242 | GEAR, 27 TEETH | 10001- | |
| 16 | 06030-06312 | BEARING | 10001- | |
| 17 | 419-15-12121 | RING,SEAL (KIT) | 10001- |
