| Item | Part No. | Part Name | Qty | Serial No. |
| (KWKKS-75-54002) | CONVEYOR ASS'Y,(7M) | 1001- | ||
| (KWKKS-75-55003) | CONVEYOR ASS'Y,(10M) | 1001- | ||

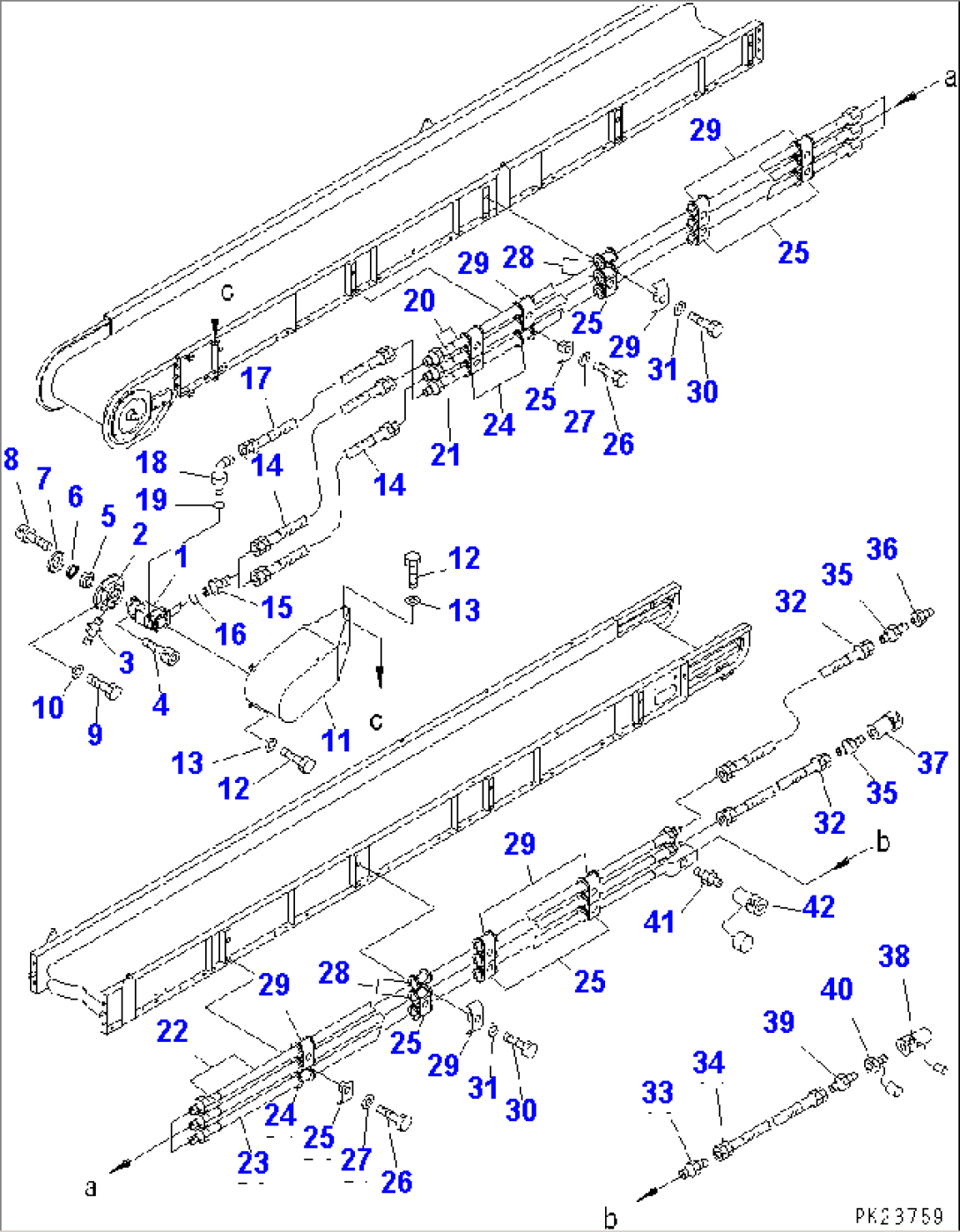

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.7555 TO 7557. | ||||
| 1 | KWKKS-75-71372 | MOTOR,(7M) | 1001- | |
| KWKKS-75-71373 | MOTOR,(10M) | 1001- | ||
| 2 | KWKKS-75-53140 | HOUSING | 1001- | |
| 3 | 07020-00000 | FITTING | 1001- | |
| 4 | 01252-41235 | BOLT | 1001- | |
| 5 | KWKKS-75-71380 | BEARING | 1001- | |
| 6 | KWKKS-75-71390 | SEAL | 1001- | |
| 7 | KWKKS-75-71280 | HOUSING | 1001- | |
| 8 | 01252-40612 | BOLT | 1001- | |
| 9 | 01010-51030 | BOLT | 1001- | |
| 10 | 01643-31032 | WASHER | 1001- | |
| 11 | KWKKS-75-55131 | COVER | 1001- | |
| 12 | 01010-51016 | BOLT | 1001- | |
| 13 | 01643-31032 | WASHER | 1001- | |
| 14 | 07113-00406 | HOSE | 1001- | |
| 15 | 101-965-5120 | NIPPLE | 1001- | |
| 16 | 07000-12018 | O-RING | 1001- | |
| 17 | 07113-00306 | HOSE | 1001- | |
| 18 | 209-62-54321 | ELBOW | 1001- | |
| 19 | 07000-12011 | O-RING | 1001- | |
| 20 | KWKKS-75-56160 | TUBE,(7M) | 1001- | |
| KWKKS-75-57430 | TUBE,(10M) | 1001- | ||
| 21 | KWKKS-75-54170 | TUBE,(7M) | 1001- | |
| KWKKS-75-55210 | TUBE,(10M) | 1001- | ||
| 22 | KWKKS-75-56170 | TUBE,(7M) | 1001- | |
| KWKKS-75-57440 | TUBE,(10M) | 1001- | ||
| 23 | KWKKS-75-54190 | TUBE,(7M) | 1001- | |
| KWKKS-75-55240 | TUBE,(10M) | 1001- | ||
| 24 | 07095-00317 | CUSHION,(7M) | 1001- | |
| 07095-00317 | CUSHION,(10M) | 1001- | ||
| 25 | 07094-00315 | CLAMP,(7M) | 1001- | |
| 07094-00315 | CLAMP,(10M) | 1001- | ||
| 26 | 01010-51230 | BOLT,(7M) | 1001- | |
| 01010-51230 | BOLT,(10M) | 1001- | ||
| 27 | 01643-31232 | WASHER,(7M) | 1001- | |
| 01643-31232 | WASHER,(10M) | 1001- | ||
| 28 | 07095-00421 | CUSHION,(7M) | 1001- | |
| 07095-00421 | CUSHION,(10M) | 1001- | ||
| 29 | 07094-20417 | CLAMP,(7M) | 1001- | |
| 07094-20417 | CLAMP,(10M) | 1001- | ||
| 30 | 01010-51240 | BOLT,(7M) | 1001- | |
| 01010-51240 | BOLT,(10M) | 1001- | ||
| 31 | 01643-31232 | WASHER,(7M) | 1001- | |
| 01643-31232 | WASHER,(10M) | 1001- | ||
| 32 | 07113-00455 | HOSE | 1001- | |
| 33 | 07238-10315 | CONNECTOR | 1001- | |
| 34 | 07113-00355 | HOSE | 1001- | |
| 35 | 07238-10422 | CONNECTOR | 1001- | |
| 36 | KWKKS-75-11790 | COUPLER | 1001- | |
| 37 | KWKKS-75-11810 | COUPLER | 1001- | |
| 38 | KWKKS-75-11870 | COUPLER | 1001- | |
| 39 | 176-62-15490 | NIPPLE | 1001- | |
| 40 | KWKKS-75-51430 | COUPLER | 1001- | |
| 41 | KWKKS-75-51460 | NIPPLE | 1001- | |
| 42 | KWKKS-75-11870 | COUPLER | 1001- |
