| Item | Part No. | Part Name | Qty | Serial No. |
| (8242-79-1100) | CONVEYOR ASS'Y,(10M) | 1002- | ||
| (8242-79-1200) | CONVEYOR ASS'Y,(7M) | 1002- | ||

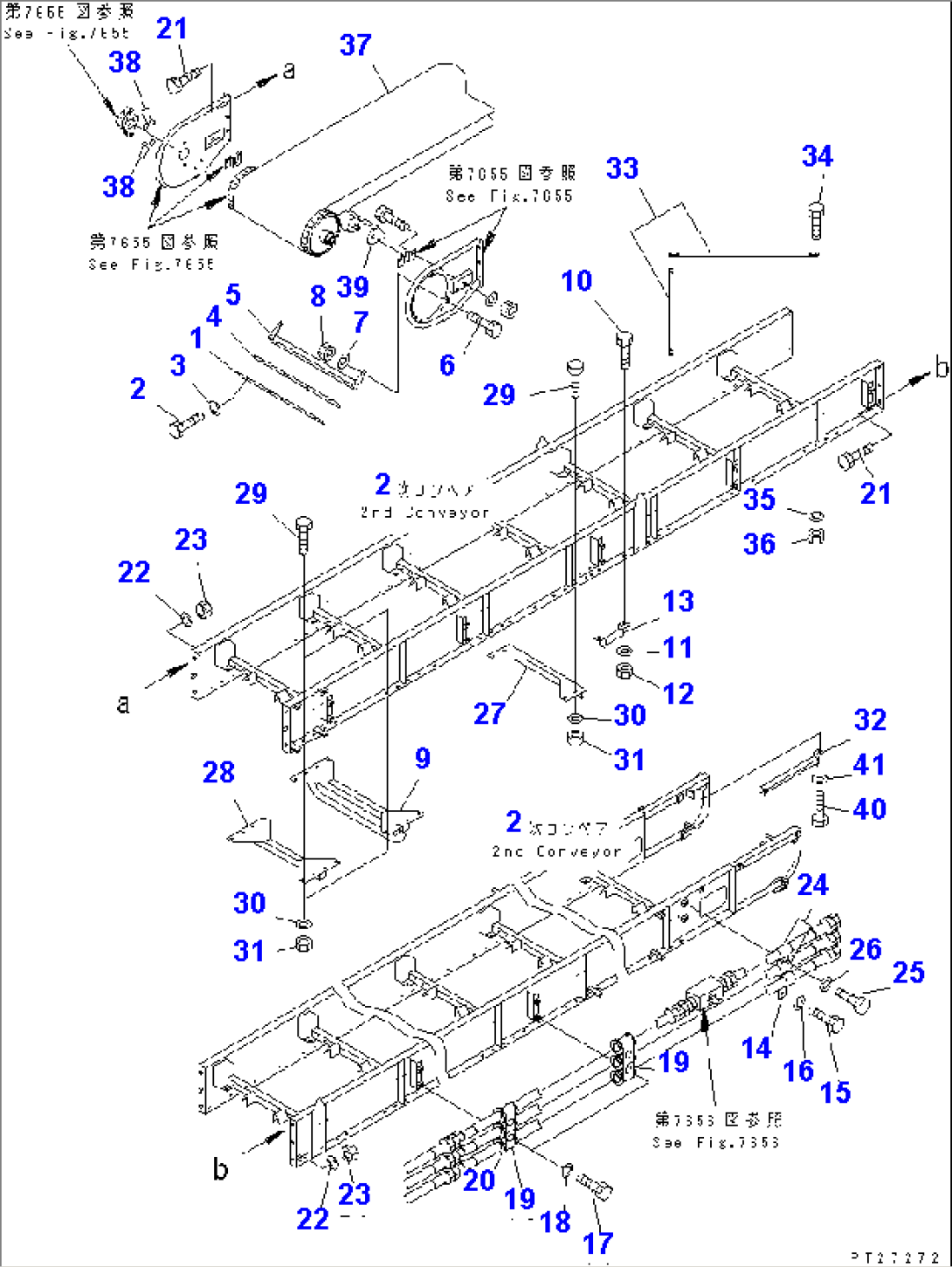

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.7651 TO 7660. | ||||
| 1 | KWKKS-75-57230 | PLATE | 1002- | |
| 2 | 01010-80825 | BOLT | 1002- | |
| 3 | 01643-30823 | WASHER | 1002- | |
| 4 | KWKKS-75-57220 | RUBBER | 1002- | |
| 5 | KWKKS-75-57210 | SCRAPER | 1002- | |
| 6 | 01010-81025 | BOLT | 1002- | |
| 7 | 01643-31032 | WASHER | 1002- | |
| 8 | 01580-11008 | NUT | 1002- | |
| 9 | KWKKS-75-57460 | BRACKET | 1002- | |
| 10 | 01010-81025 | BOLT | 1002- | |
| 11 | 01643-31032 | WASHER | 1002- | |
| 12 | 01580-11008 | NUT | 1002- | |
| 13 | KWKKS-75-55181 | BRACKET | 1002- | |
| 14 | 04434-51910 | CLIP | 1002- | |
| 15 | 01010-81020 | BOLT | 1002- | |
| 16 | 01643-31032 | WASHER | 1002- | |
| 17 | 01010-81230 | BOLT,(10M) | 1002- | |
| 17 | 01010-81230 | BOLT,(7M) | 1002- | |
| 18 | 01643-31232 | WASHER,(10M) | 1002- | |
| 18 | 01643-31232 | WASHER,(7M) | 1002- | |
| 19 | 07094-10315 | CLAMP,(10M) | 1002- | |
| 19 | 07094-10315 | CLAMP,(7M) | 1002- | |
| 20 | 07095-00317 | CUSHION,(10M) | 1002- | |
| 20 | 07095-00317 | CUSHION,(7M) | 1002- | |
| 21 | 01010-81640 | BOLT | 1002- | |
| 22 | 01643-31645 | WASHER | 1002- | |
| 23 | 01580-11613 | NUT | 1002- | |
| 24 | 04434-52510 | CLIP | 1002- | |
| 25 | 01010-81020 | BOLT | 1002- | |
| 26 | 01643-31032 | WASHER | 1002- | |
| 27 | 8242-79-1540 | BRACKET | 1002- | |
| 28 | KWKKS-75-55160 | BRACKET,(10M) | 1002- | |
| 28 | KWKKS-75-55160 | BRACKET,(7M) | 1002- | |
| 28 | 8242-79-1160 | BRACKET,(7M) | 1002- | |
| 29 | 01010-81025 | BOLT,(10M) | 1002- | |
| 29 | 01010-81025 | BOLT,(7M) | 1002- | |
| 30 | 01643-31032 | WASHER,(10M) | 1002- | |
| 30 | 01643-31032 | WASHER,(7M) | 1002- | |
| 31 | 01580-11008 | NUT,(10M) | 1002- | |
| 31 | 01580-11008 | NUT,(7M) | 1002- | |
| 32 | KWKKS-75-54250 | BRACKET | 1002- | |
| 33 | KWKKS-75-57380 | STAY,(10M) | 1002- | |
| 33 | KWKKS-75-56140 | STAY,(7M) | 1002- | |
| 34 | 01010-81025 | BOLT,(10M) | 1002- | |
| 34 | 01010-81025 | BOLT,(7M) | 1002- | |
| 35 | 01643-31032 | WASHER,(10M) | 1002- | |
| 35 | 01643-31032 | WASHER,(7M) | 1002- | |
| 36 | 01580-11008 | NUT,(10M) | 1002- | |
| 36 | 01580-11008 | NUT,(7M) | 1002- | |
| 37 | KWKKS-75-57371 | BELT,(10M) | 1002- | |
| 37 | KWKKS-75-56151 | BELT,(7M) | 1002- | |
| 38 | KWKKS-99-11360 | BAR | 1002- | |
| 39 | KWKKS-75-57240 | SCRAPER | 1002- | |
| 40 | 01010-81020 | BOLT | 1002- | |
| 41 | 01643-31032 | WASHER | 1002- |
