| Item | Part No. | Part Name | Qty | Serial No. |
| (8242-79-1100) | CONVEYOR ASS'Y | 1201- | ||
| (8242-79-1200) | CONVEYOR ASS'Y | 1201- | ||

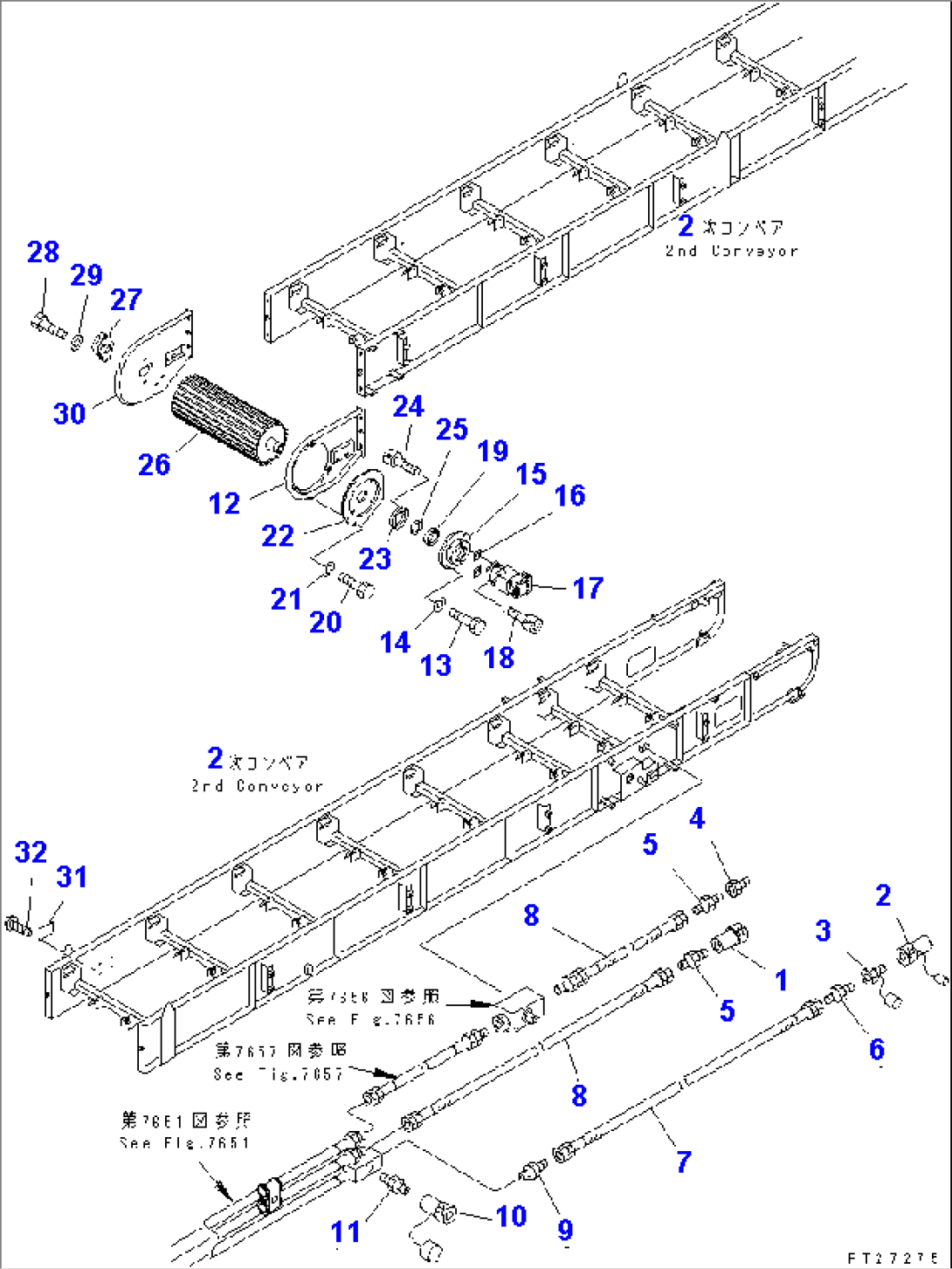

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.7651 TO 7660. | ||||
| 1 | 8221-75-2590 | COUPLER | 1201- | |
| 2 | KWKKS-75-11870 | COUPLER | 1201- | |
| 3 | KWKKS-75-51430 | COUPLER | 1201- | |
| 4 | 8221-75-2610 | COUPLER | 1201- | |
| 5 | 10E-60-16360 | NIPPLE | 1201- | |
| 6 | 176-62-15490 | NIPPLE | 1201- | |
| 7 | 07113-00355 | HOSE | 1201- | |
| 8 | 07113-00455 | HOSE | 1201- | |
| 9 | 07238-10315 | CONNECTOR | 1201- | |
| 10 | KWKKS-75-11870 | COUPLER | 1201- | |
| 11 | KWKKS-75-51460 | NIPPLE | 1201- | |
| 12 | 8242-79-1230 | FRAME,L.H. | 1201- | |
| 13 | 01010-81035 | BOLT | 1201- | |
| 14 | 01643-31032 | WASHER | 1201- | |
| 15 | KWKKS-75-53140 | HOUSING | 1201- | |
| 16 | KWKKS-99-31150 | SHIM ASS'Y | 1201- | |
| 17 | KWKKS-75-71373 | MOTOR | 1201- | |
| 18 | 01252-71235 | BOLT | 1201- | |
| 19 | KWKKS-75-71380 | BEARING | 1201- | |
| 20 | 01010-81025 | BOLT | 1201- | |
| 21 | 01643-31032 | WASHER | 1201- | |
| 22 | KWKKS-75-57410 | PLATE | 1201- | |
| 23 | KWKKS-75-71280 | HOUSING | 1201- | |
| 24 | 01252-40612 | BOLT | 1201- | |
| 25 | KWKKS-75-71390 | SEAL | 1201- | |
| 26 | KWKKS-75-57130 | HEAD | 1201- | |
| 27 | KWKKS-75-51290 | FLANGE | 1201- | |
| 28 | 01010-81440 | BOLT | 1201- | |
| 29 | 01643-31445 | WASHER | 1201- | |
| 30 | 8242-79-1240 | FRAME,R.H. | 1201- | |
| 31 | 09601-60000 | PLATE, NAME | 1201- | |
| 32 | 04418-13060 | SCREW | 1201- |
