| Item | Part No. | Part Name | Qty | Serial No. |
| (8242-79-1400) | CONVEYOR ASS'Y | 1101- | ||
| (8242-79-1500) | CONVEYOR ASS'Y | 1101- | ||

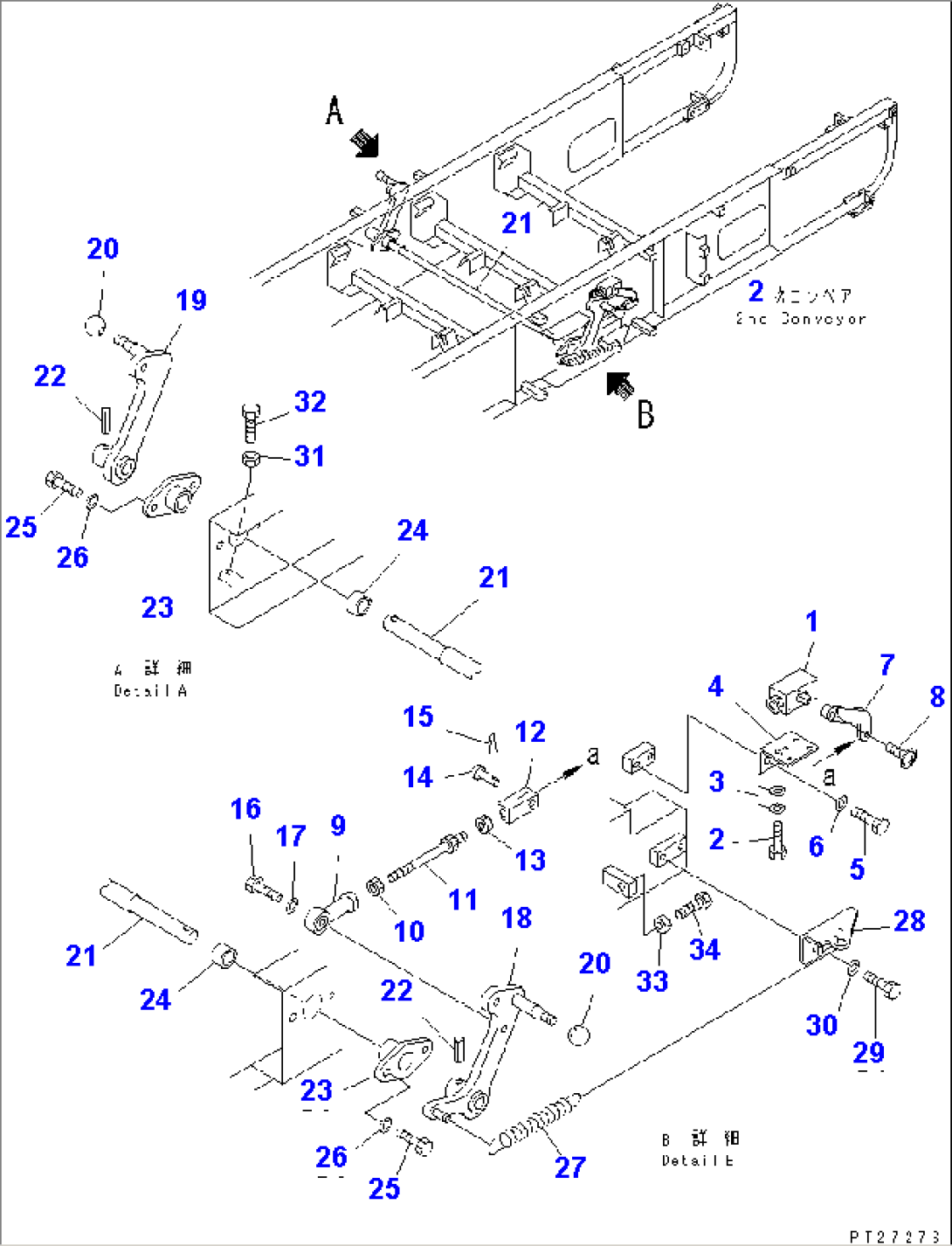

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.7671 TO 7680. | ||||
| 1 | 8242-79-1310 | VALVE | 1101- | |
| 2 | 01010-80616 | BOLT | 1101- | |
| 3 | 01643-30623 | WASHER | 1101- | |
| 4 | 8242-79-1360 | BRACKET | 1101- | |
| 5 | 01010-81020 | BOLT | 1101- | |
| 6 | 01643-31032 | WASHER | 1101- | |
| 7 | 8242-79-1350 | LEVER | 1101- | |
| 8 | 01023-10416 | SCREW | 1101- | |
| 9 | 04250-91056 | END | 1101- | |
| 10 | 01508-41006 | NUT | 1101- | |
| 11 | 04248-31011 | ROD | 1101- | |
| 12 | 04210-01040 | YOKE | 1101- | |
| 13 | 01580-11008 | NUT | 1101- | |
| 14 | 04205-11028 | PIN | 1101- | |
| 15 | 04050-13020 | PIN,COTTER | 1101- | |
| 16 | 01010-81035 | BOLT | 1101- | |
| 17 | 01643-31032 | WASHER | 1101- | |
| 18 | 8242-79-1330 | LEVER | 1101- | |
| 19 | 8242-79-1340 | LEVER | 1101- | |
| 20 | 09304-10835 | KNOB | 1101- | |
| 21 | 8242-79-1640 | SHAFT | 1101- | |
| 22 | 04025-00624 | PIN,SPRING | 1101- | |
| 23 | 8242-79-1380 | FRANGE | 1101- | |
| 24 | 09350-01620 | BUSHING | 1101- | |
| 25 | 01010-81030 | BOLT | 1101- | |
| 26 | 01643-31032 | WASHER | 1101- | |
| 27 | 566-43-17591 | SPRING | 1101- | |
| 28 | 8242-79-1370 | BRACKET | 1101- | |
| 29 | 01010-81020 | BOLT | 1101- | |
| 30 | 01643-31032 | WASHER | 1101- | |
| 31 | 01580-11008 | NUT | 1101- | |
| 32 | 01010-81045 | BOLT | 1101- | |
| 33 | 01580-11008 | NUT | 1101- | |
| 34 | 01010-81055 | BOLT | 1101- |
