| Item | Part No. | Part Name | Qty | Serial No. |
| (8242-79-1400) | CONVEYOR ASS'Y,(10M) | 1238- | ||
| (8242-79-1500) | CONVEYOR ASS'Y,(7M) | 1238- | ||

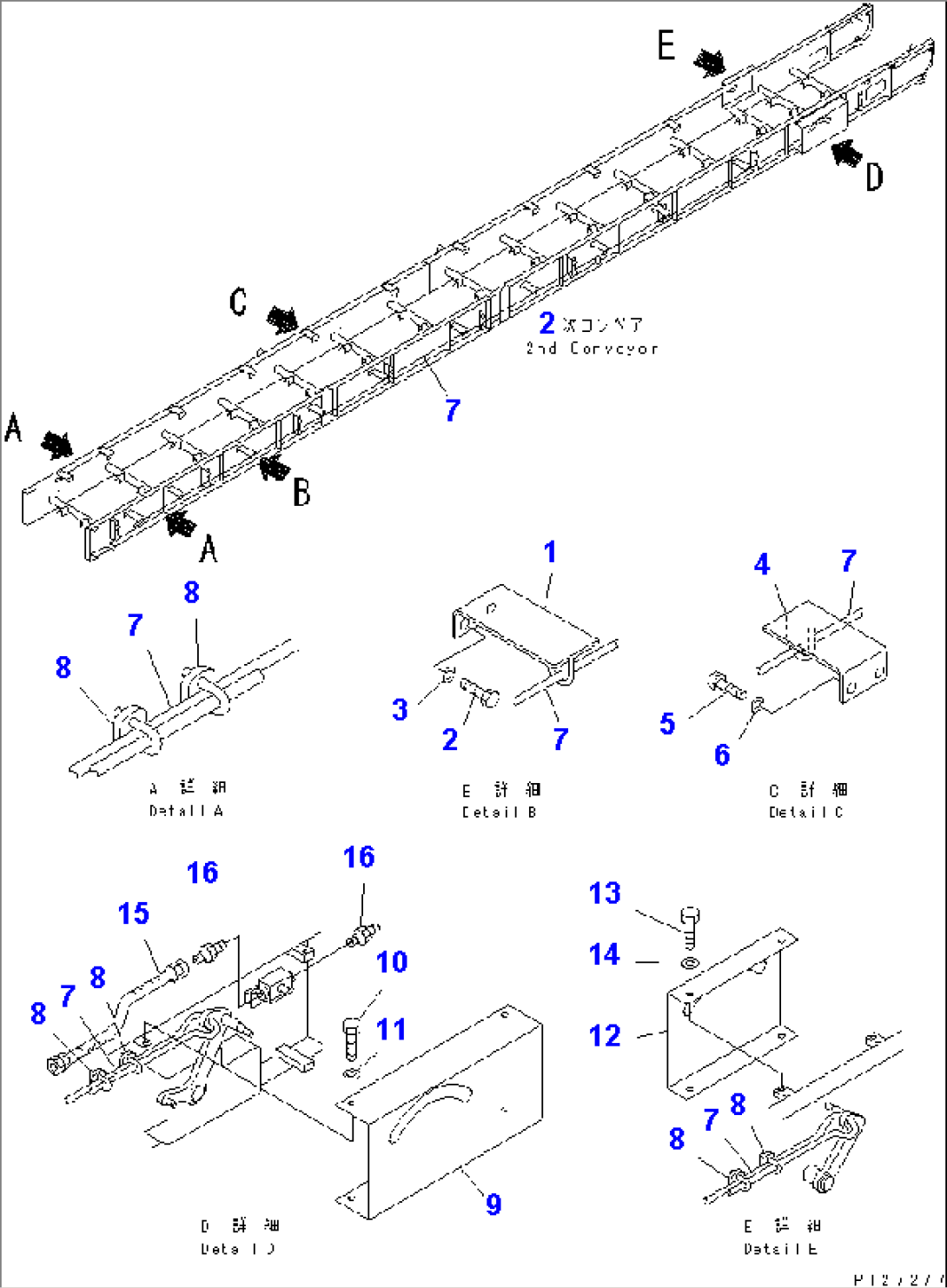

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.7671 TO 7680. | ||||
| 1 | 8242-79-1430 | BRACKET,(10M) | 1238- | |
| 8242-79-1430 | BRACKET,(7M) | 1238- | ||
| 2 | 01010-81020 | BOLT,(10M) | 1238- | |
| 01010-81020 | BOLT,(7M) | 1238- | ||
| 3 | 01643-31032 | WASHER,(10M) | 1238- | |
| 01643-31032 | WASHER,(7M) | 1238- | ||
| 4 | 8242-79-1460 | BRACKET,(10M) | 1238- | |
| 8242-79-1460 | BRACKET,(7M) | 1238- | ||
| 5 | 01010-81020 | BOLT,(10M) | 1238- | |
| 01010-81020 | BOLT,(7M) | 1238- | ||
| 6 | 01643-31032 | WASHER,(10M) | 1238- | |
| 01643-31032 | WASHER,(7M) | 1238- | ||
| 7 | 8242-79-1390 | WIRE,(10M) | 1238- | |
| 8262-06-1280 | WIRE,(7M) | 1238- | ||
| 8 | 8264-06-1290 | CLIP | 1238- | |
| 9 | 8242-79-1590 | COVER | 1238- | |
| 10 | 01010-81020 | BOLT | 1238- | |
| 11 | 01643-31032 | WASHER | 1238- | |
| 12 | 8242-79-1610 | COVER | 1238- | |
| 13 | 01010-81020 | BOLT | 1238- | |
| 14 | 01643-31032 | WASHER | 1238- | |
| 15 | 07113-00406 | HOSE | 1238- | |
| 16 | 07238-10422 | CONNECTOR | 1238- |
