| Item | Part No. | Part Name | Qty | Serial No. |
| (8242-79-1100) | CONVEYOR ASS'Y,(10M) | 1002- | ||
| (8242-79-1200) | CONVEYOR ASS'Y,(7M) | 1002- | ||

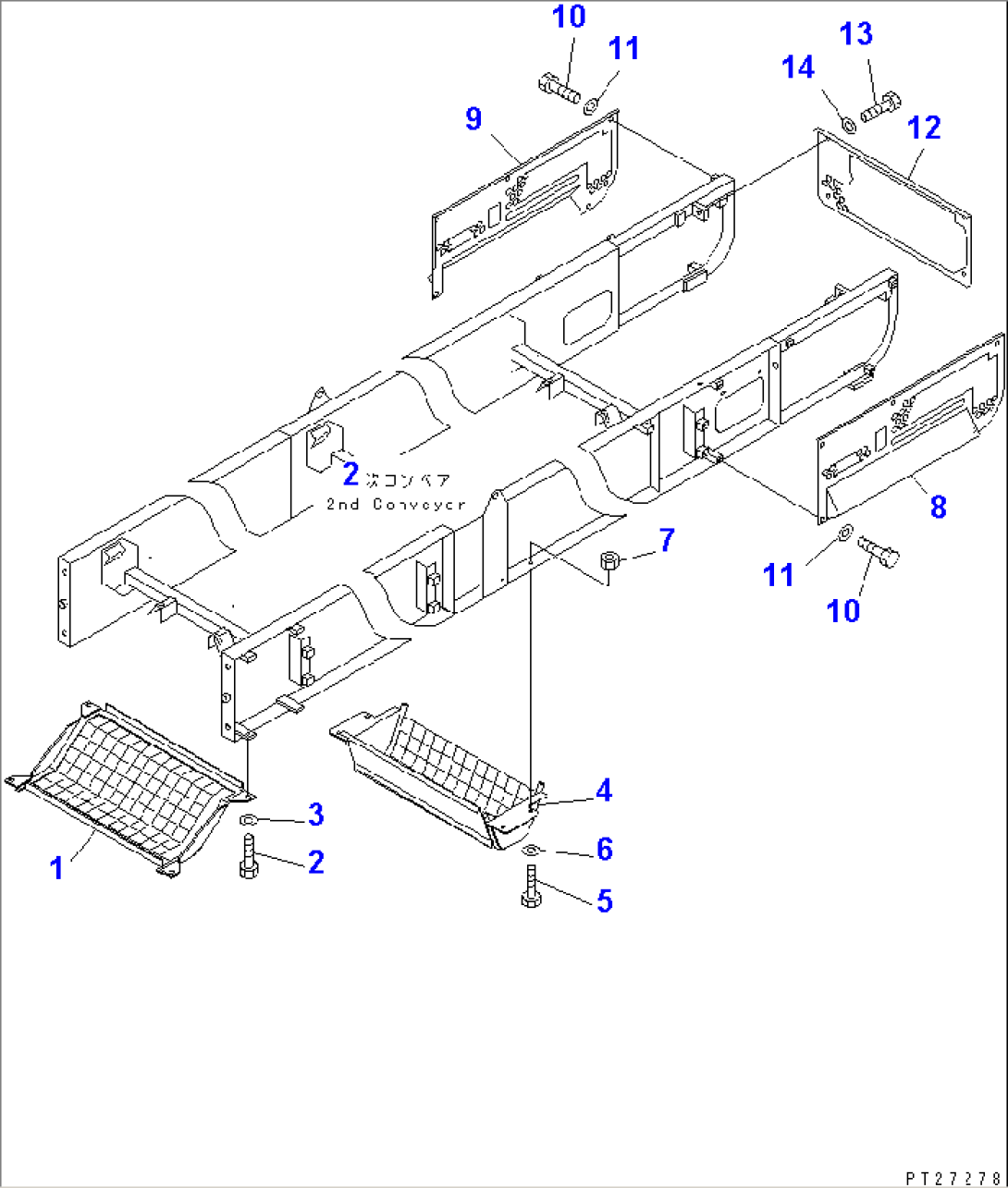

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.7651 TO 7660. | ||||
| 1 | 8242-79-1120 | GUARD | 1002- | |
| 2 | 01010-81020 | BOLT | 1002- | |
| 3 | 01643-31232 | WASHER | 1002- | |
| 4 | 8242-79-1110 | GUARD,(10M) | 1002- | |
| 8242-79-1110 | GUARD,(7M) | 1002- | ||
| 5 | 01010-81025 | BOLT,(10M) | 1002- | |
| 01010-81025 | BOLT,(7M) | 1002- | ||
| 6 | 01643-31232 | WASHER,(10M) | 1002- | |
| 01643-31232 | WASHER,(7M) | 1002- | ||
| 7 | 01580-11008 | NUT,(10M) | 1002- | |
| 01580-11008 | NUT,(7M) | 1002- | ||
| 8 | 8242-79-1140 | COVER,L.H. | 1002- | |
| 9 | 8242-79-1150 | COVER,R.H. | 1002- | |
| 10 | 01010-81020 | BOLT | 1002- | |
| 11 | 01643-31032 | WASHER | 1002- | |
| 12 | 8242-79-1130 | COVER | 1002- | |
| 13 | 01010-81020 | BOLT | 1002- | |
| 14 | 01643-31032 | WASHER | 1002- |
