| Item | Part No. | Part Name | Qty | Serial No. |
| (8242-79-1100) | CONVEYOR ASS'Y,(10M) | 1002- | ||
| (8242-79-1200) | CONVEYOR ASS'Y,(7M) | 1002- | ||

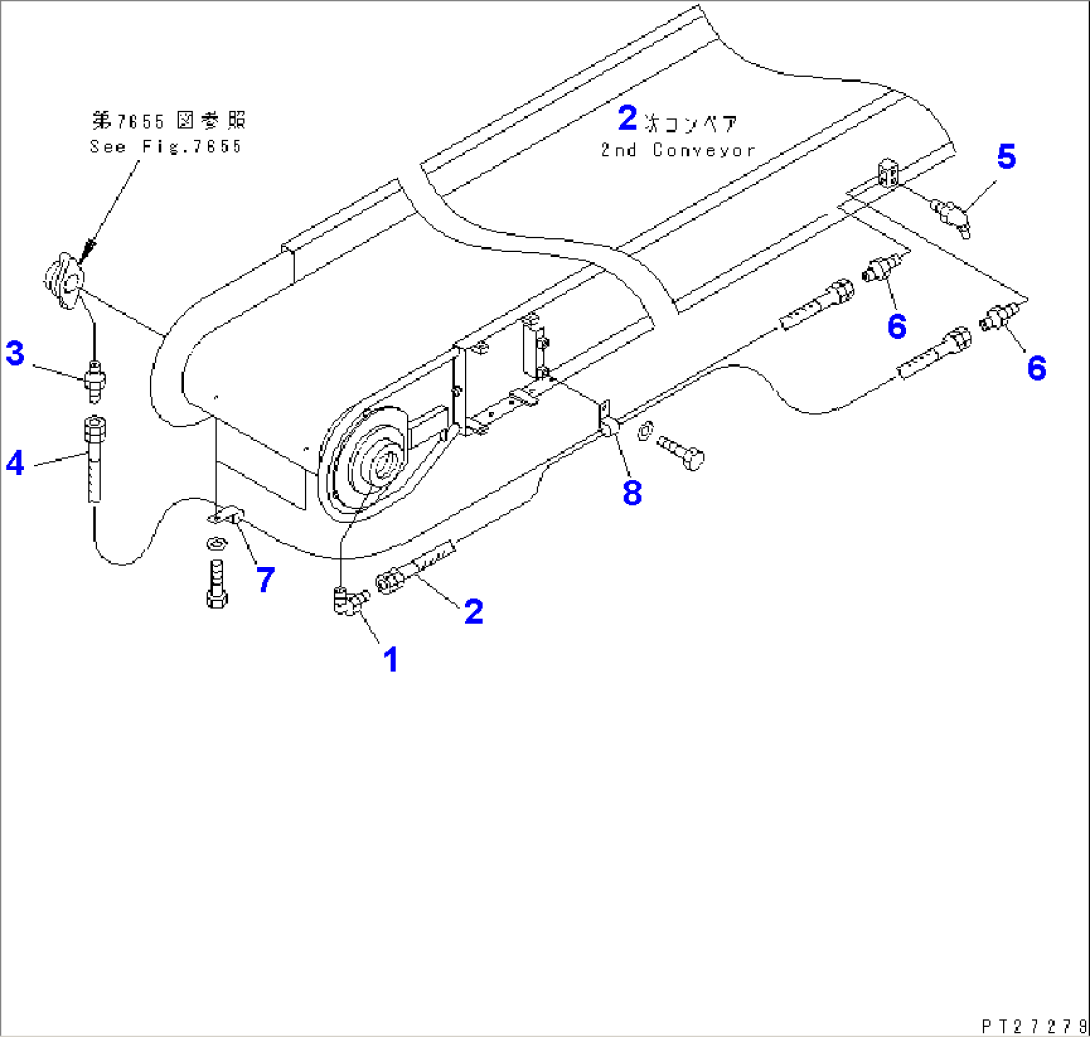

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.7651 TO 7660. | ||||
| 1 | 566-52-43390 | ELBOW | 1002- | |
| 2 | 8242-79-1170 | HOSE | 1002- | |
| 3 | 566-52-43290 | NIPPLE | 1002- | |
| 4 | 8242-79-1180 | HOSE | 1002- | |
| 5 | 07020-00675 | FITTING | 1002- | |
| 6 | 566-52-43290 | NIPPLE | 1002- | |
| 7 | 08036-00814 | CLIP | 1002- | |
| 8 | 08036-01414 | CLIP,(10M) | 1002- | |
| 08036-01414 | CLIP,(7M) | 1002- |
