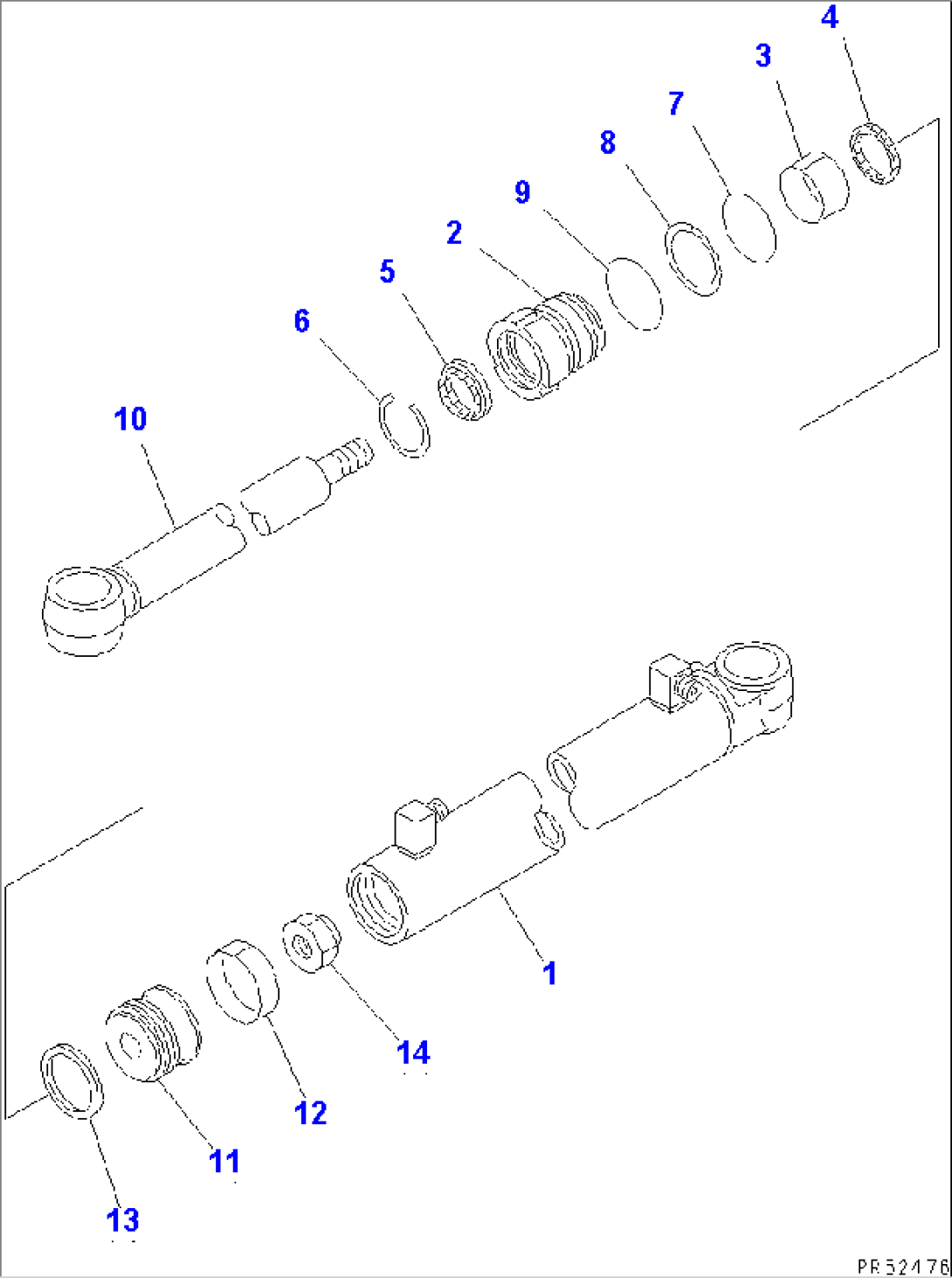

| Item | Part No. | Part Name | Qty | Serial No. |
| 26A-63-01020 | CYLINDER ASS'Y | 11009- | ||
| 1 | 26A-63-72040 | CYLINDER | 11009- | |
| 2 | 707-29-60830 | HEAD,CYLINDER | 11009- | |
| 3 | 07177-03025 | BUSHING | 11009- | |
| 4 | 707-51-30210 | PACKING,ROD (K10) | 11009- | |
| 5 | 707-56-30510 | SEAL,DUST (K10) | 11009- | |
| 6 | 07179-12042 | RING,SNAP | 11009- | |
| 7 | 07000-12055 | O-RING (K10) | 11009- | |
| 8 | 07146-02056 | RING,BACK-UP (K10) | 11009- | |
| 9 | 07000-02060 | O-RING (K10) | 11009- | |
| 10 | 26A-63-72020 | ROD,PISTON | 11009- | |
| 11 | 707-36-60970 | PISTON | 11009- | |
| 12 | 707-39-60190 | RING,WEAR (K10) | 11009- | |
| 13 | 707-44-60070 | RING,PISTON (K10) | 11009- | |
| 14 | 07165-12022 | NUT,NYLON | 11009- |
