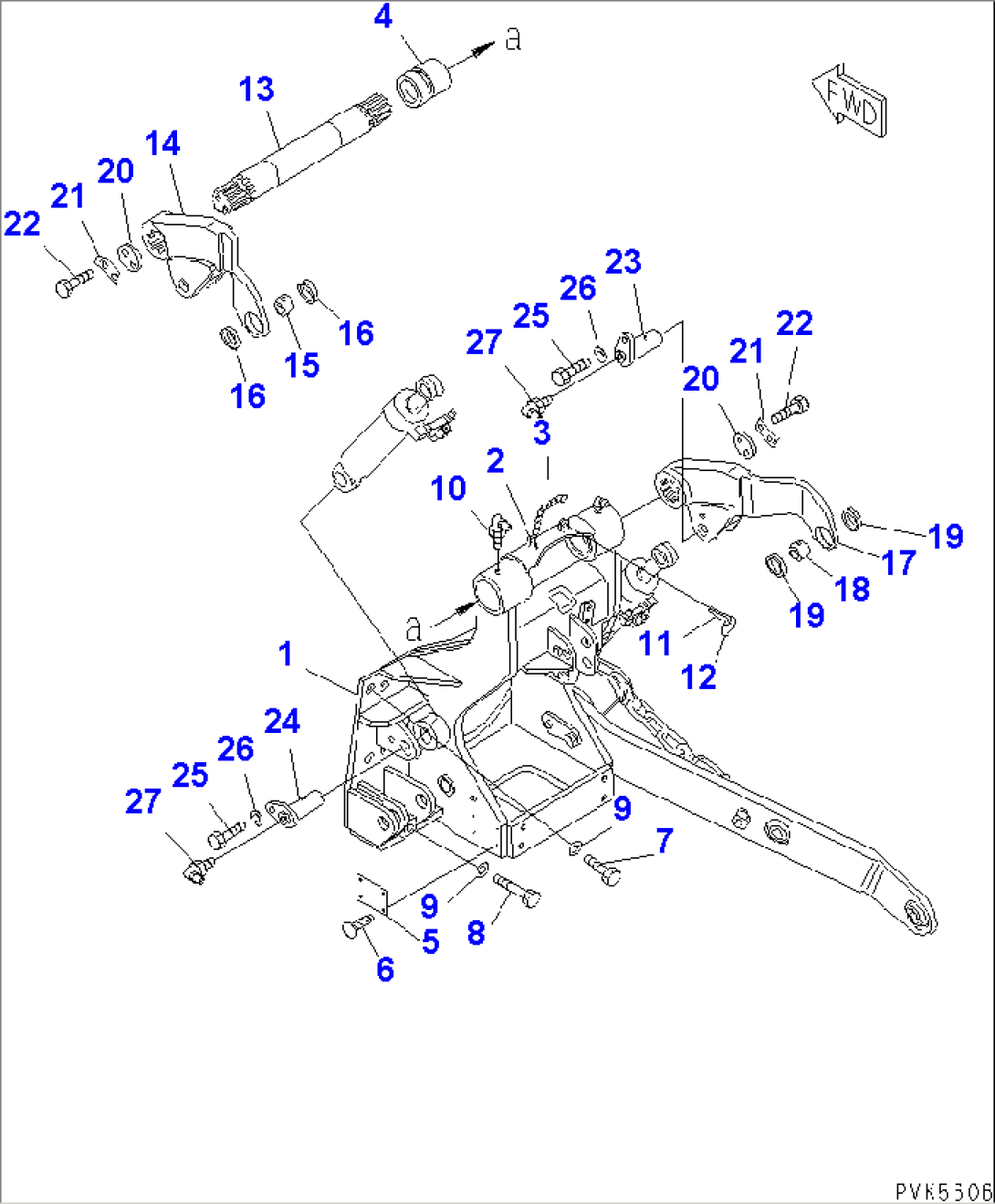

| Item | Part No. | Part Name | Qty | Serial No. |
| 101-Z54-0010 | BRACKET ASS'Y | 62454- | ||
| 1 | \6\ | BRACKET | 62454- | |
| 2 | 09245-50060 | HOOK (WELDED) | 62454- | |
| 3 | 09245-14821 | CHAIN | 62454- | |
| 4 | 101-901-1150 | BUSHING | 62454- | |
| 5 | 09601-00835 | PLATE, NAME,(LIMITED SUPPLY) | 62454- | |
| 6 | 04418-13060 | SCREW | 62454- | |
| 7 | 01010-81840 | BOLT | 62454- | |
| 8 | 01011-81875 | BOLT | 62454- | |
| 9 | 01643-31845 | WASHER | 62454- | |
| 10 | 07020-00900 | FITTING,GREASE | 62454- | |
| 11 | 409-70-11410 | PIN | 62454- | |
| 12 | 409-70-11420 | RING | 62454- | |
| 13 | 101-Z54-1120 | SHAFT | 62454- | |
| 14 | 101-Z54-1131 | ARM,L.H. | 62454- | |
| 101-Z54-0210 | SEAT ASS'Y (WELDED) | 62454- | ||
| 15 | \6\ | BUSHING | 62454- | |
| 16 | \6\ | SEAT | 62454- | |
| 17 | 101-Z54-1141 | ARM,R.H. | 62454- | |
| 101-Z54-0210 | SEAT ASS'Y (WELDED) | 62454- | ||
| 18 | \6\ | BUSHING | 62454- | |
| 19 | \6\ | SEAT | 62454- | |
| 20 | 04080-05010 | HOLDER | 62454- | |
| 21 | 04081-05012 | LOCK | 62454- | |
| 22 | 01010-81025 | BOLT | 62454- | |
| 23 | 101-Z54-1260 | PIN,R.H. | 62454- | |
| 24 | 101-Z54-1230 | PIN,L.H. | 62454- | |
| 25 | 01010-81020 | BOLT | 62454- | |
| 26 | 01602-21030 | WASHER,SPRING | 62454- | |
| 27 | 07020-00900 | FITTING,GREASE | 62454- |
