| Item | Part No. | Part Name | Qty | Serial No. |
| 709-23-11302 | VALVE ASS'Y | .-. | ||
| 709-23-11301 | VALVE ASS'Y | 10001-11999 | ||

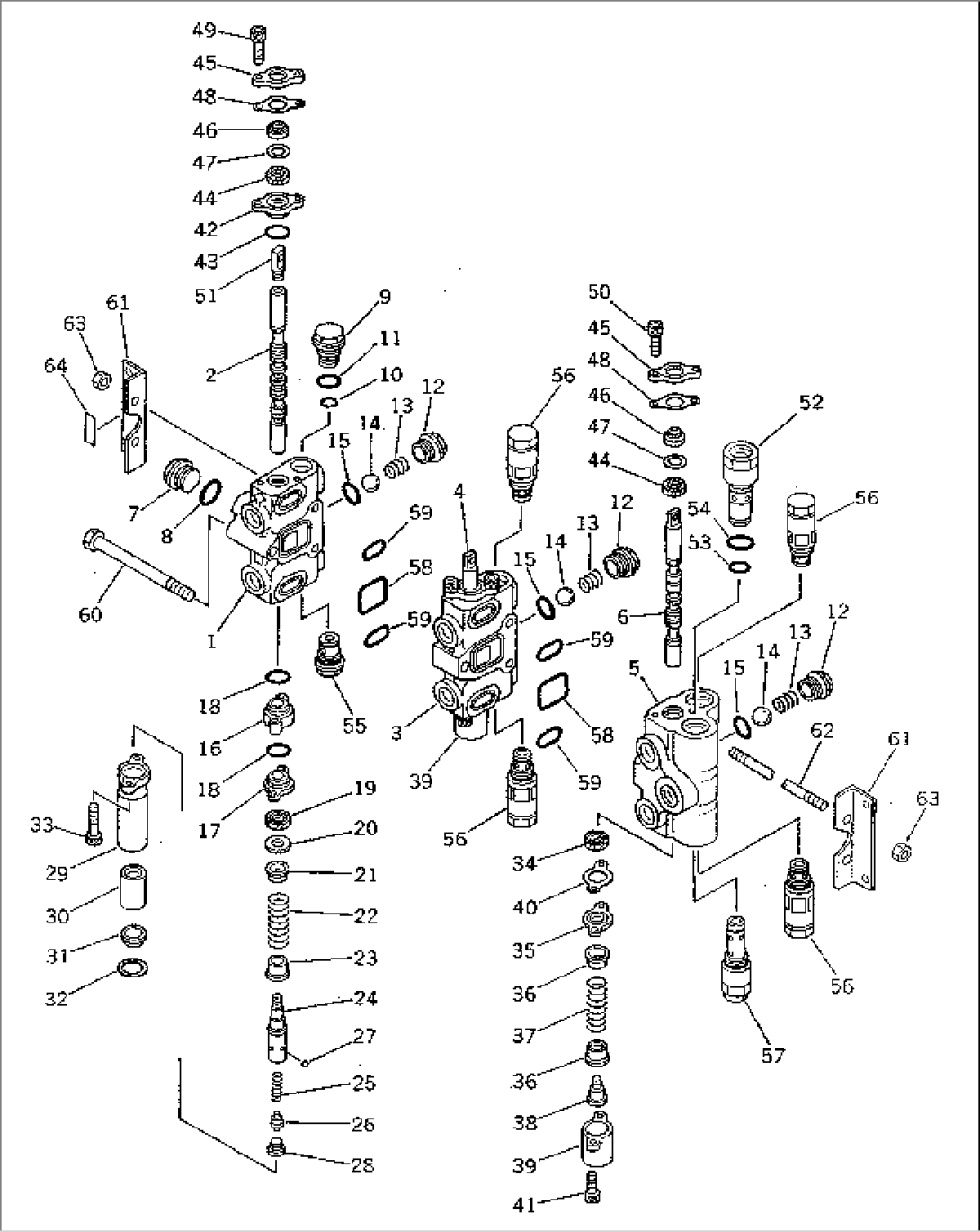

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6211 AND 6212. | ||||
| 1 | \6\ | COVER,VALVE | 10001-@ | |
| 2 | \6\ | SPOOL,LIFT | 10001-@ | |
| 3 | \6\ | BLOCK,VALVE | 10001-@ | |
| 4 | \6\ | SPOOL,DUMP | 10001-@ | |
| 5 | \6\ | BODY,VALVE | 10001-@ | |
| 6 | \6\ | SPOOL,ATTACHMENT | 10001-@ | |
| 7 | 700-22-11370 | PLUG | 10001-@ | |
| 8 | 07002-02434 | O-RING | 10001-@ | |
| 9 | 700-22-11360 | PLUG | 10001-@ | |
| 10 | 07000-12014 | O-RING | 10001-@ | |
| 11 | 07002-02434 | O-RING | 10001-@ | |
| 12 | 700-22-11351 | PLUG | 10001-@ | |
| 13 | 700-22-12350 | SPRING | 10001-@ | |
| 14 | 700-22-12340 | BALL | 10001-@ | |
| 15 | 07002-12434 | O-RING | 10001-@ | |
| 16 | 700-22-11630 | PLATE | 10001-@ | |
| 17 | 700-22-12280 | PLATE | 10001-@ | |
| 18 | 07000-02018 | O-RING | 10001-@ | |
| 19 | 700-22-11252 | U-PACKING | 10001-@ | |
| 20 | 700-21-11150 | PLATE | 10001-@ | |
| 21 | 700-22-11291 | RETAINER | 10001-@ | |
| 22 | 700-22-11510 | SPRING | 10001-@ | |
| 23 | 700-22-11520 | RETAINER | 10001-@ | |
| 24 | 700-22-12250 | PLUG | 10001-@ | |
| 25 | 700-21-11190 | SPRING | 10001-@ | |
| 26 | 700-22-12480 | GUIDE | 10001-@ | |
| 27 | 700-84-11730 | BALL | 10001-@ | |
| 28 | 700-21-11210 | PLUG | 10001-@ | |
| 29 | 700-22-12310 | CASE,DETENT | 10001-11999 | |
| 30 | 700-22-12263 | DETENT | .-. | |
| 30 | 700-22-12262 | DETENT | 10001-11999 | |
| 31 | 700-22-12270 | PLUG | 10001-@ | |
| 32 | 700-22-11610 | RING,SNAP | 10001-@ | |
| 33 | 01252-40640 | BOLT | 10001-@ | |
| 34 | 700-22-11252 | U-PACKING | 10001-@ | |
| 35 | 700-22-11281 | PLATE | 10001-11999 | |
| 36 | 700-22-11291 | RETAINER | 10001-11999 | |
| 37 | 700-22-11311 | SPRING | 10001-11999 | |
| 38 | 700-22-11321 | PLUG | 10001-11999 | |
| 39 | 700-22-11331 | COVER | 10001-11999 | |
| 40 | 700-22-11420 | GASKET | 10001-11999 | |
| 41 | 01252-40616 | BOLT | 10001-11999 | |
| 42 | 700-22-11620 | PLATE | 10001-@ | |
| 43 | 07000-02018 | O-RING | 10001-@ | |
| 44 | 700-22-11252 | U-PACKING | 10001-@ | |
| 45 | 700-22-11270 | PLATE | 10001-@ | |
| 46 | 700-22-11261 | SEAL,DUST | 10001-@ | |
| 47 | 700-22-11430 | COLLAR | 10001-@ | |
| 48 | 700-22-11420 | GASKET | 10001-@ | |
| 49 | 01252-40625 | BOLT | 10001-@ | |
| 50 | 01252-40616 | BOLT | 10001-@ | |
| 51 | 700-26-11160 | PLUG | 10001-@ | |
| 52 | 700-22-11380 | PLUG | 10001-@ | |
| 53 | 07000-12014 | O-RING | 10001-@ | |
| 54 | 07002-02434 | O-RING | 10001-@ | |
| 55 | (700-20-81000) | VALVE ASS'Y,SUCTION | 10001-@ | |
| 56 | (700-20-82000) | VALVE ASS'Y,SUCTION AND SAFETY | 10001-@ | |
| 57 | (700-24-55000) | VALVE ASS'Y,RELIEF | 10001-@ | |
| 58 | 07000-13040 | O-RING | 10001-@ | |
| 59 | 700-22-11450 | O-RING | 10001-@ | |
| 60 | 700-23-12120 | BOLT | 10001-@ | |
| 61 | 700-22-11220 | ANGLE | 10001-@ | |
| 62 | 700-23-12110 | STUD | 10001-@ | |
| 63 | 01580-10806 | NUT | 10001-@ | |
| 64 | 700-11-31980 | PLATE, NAME,(LIMITED SUPPLY) | 10001-@ |
