Item | Part No. | Part Name | Qty | Serial No. |

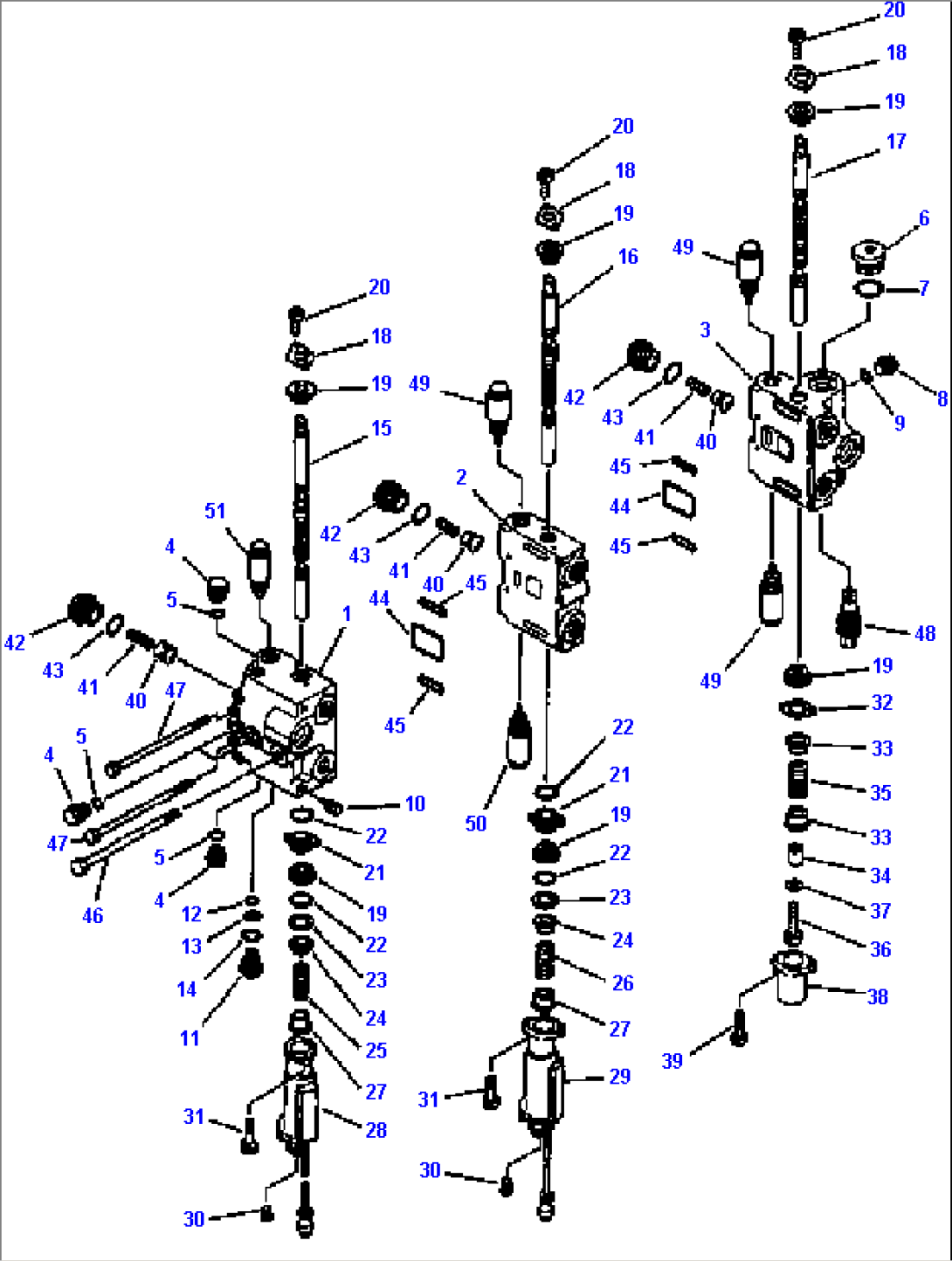

709-83-11102 | VALVE ASSEMBLY, 3-SPOOL | |||
709-83-00060 | BODY GROUP ASSEMBLY | |||
1 | (NSS) | COVER, VALVE | ||
2 | (NSS) | BLOCK, VALVE | ||
3 | (NSS) | BODY, VALVE | ||
4 | 709-30-62150 | PLUG | ||
5 | 07002-02034 | O-RING | ||
6 | 07040-13316 | PLUG | ||
7 | 07002-03334 | O-RING | ||
8 | 700-22-11370 | PLUG | ||
9 | 07002-12434 | O-RING | ||
10 | 07043-70108 | PLUG | ||
11 | 700-84-13960 | PLUG | ||
12 | 700-22-11410 | O-RING | ||
13 | 700-80-64220 | RING, BACK-UP | ||
14 | 07002-03034 | O-RING | ||
15 | (NSS) | SPOOL | ||
16 | (NSS) | SPOOL | ||
17 | (NSS) | SPOOL | ||
18 | 700-84-13891 | PLATE | ||
19 | 700-84-13910 | SEAL, OIL | ||
20 | 01252-30612 | BOLT | ||
21 | 700-82-11730 | PLATE | ||
22 | 700-84-11240 | O-RING | ||
23 | 700-82-11740 | PLATE | ||
24 | 700-82-11711 | RETAINER | ||
25 | 700-84-11650 | SPRING | ||
26 | 700-82-11770 | SPRING | ||
27 | 700-82-11721 | RETAINER | ||
28 | 700-82-94000 | DETENT ASSEMBLY | ||
29 | 700-82-93000 | DETENT ASSEMBLY | ||
30 | 07043-00312 | PLUG | ||
31 | 01252-30630 | BOLT | ||
32 | 700-84-13891 | PLATE | ||
33 | 700-84-11631 | RETAINER | ||
34 | 700-84-11641 | COLLAR | ||
35 | 700-82-11770 | SPRING | ||
36 | 01252-30830 | BOLT | ||
37 | 01643-30823 | WASHER | ||
38 | 700-84-11390 | COVER | ||
39 | 01252-30625 | BOLT | ||
40 | 700-42-31460 | VALVE | ||
41 | 700-90-51320 | SPRING | ||
42 | 700-84-11320 | PLUG | ||
43 | 07002-13034 | O-RING | ||
44 | 07000-13050 | O-RING | ||
45 | 07000-03038 | O-RING | ||
46 | 700-83-11510 | BOLT | ||
47 | 700-83-11212 | BOLT | ||
48 | RELIEF VALVE (SEE PG 06-028) | |||
49 | SUCTION AND OVERLOAD RELIEF VALVE (SEE PG 06-028) | |||
50 | SUCTION AND OVERLOAD RELIEF VALVE (SEE PG 06-028) | |||
51 | SUCTION VALVE (SEE PG 06-028) | |||
418-Z95-1140 | BRACKET | |||
01010-51020 | BOLT | |||
01010-51240 | BOLT |
