| Item | Part No. | Part Name | Qty | Serial No. |
| (569-15-01011) | TORQFLOW ASS'Y | 2001-2087 | ||
| (\2\569-15-01010) | TORQFLOW ASS'Y | (2001-2016) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2231 TO 2425. | ||||
| (569-15-00301) | TRANSMISSION ASS'Y | 2001- | ||
| (\2\569-15-00300) | TRANSMISSION ASS'Y | (2001-(1538)) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2401 TO 2425. | ||||

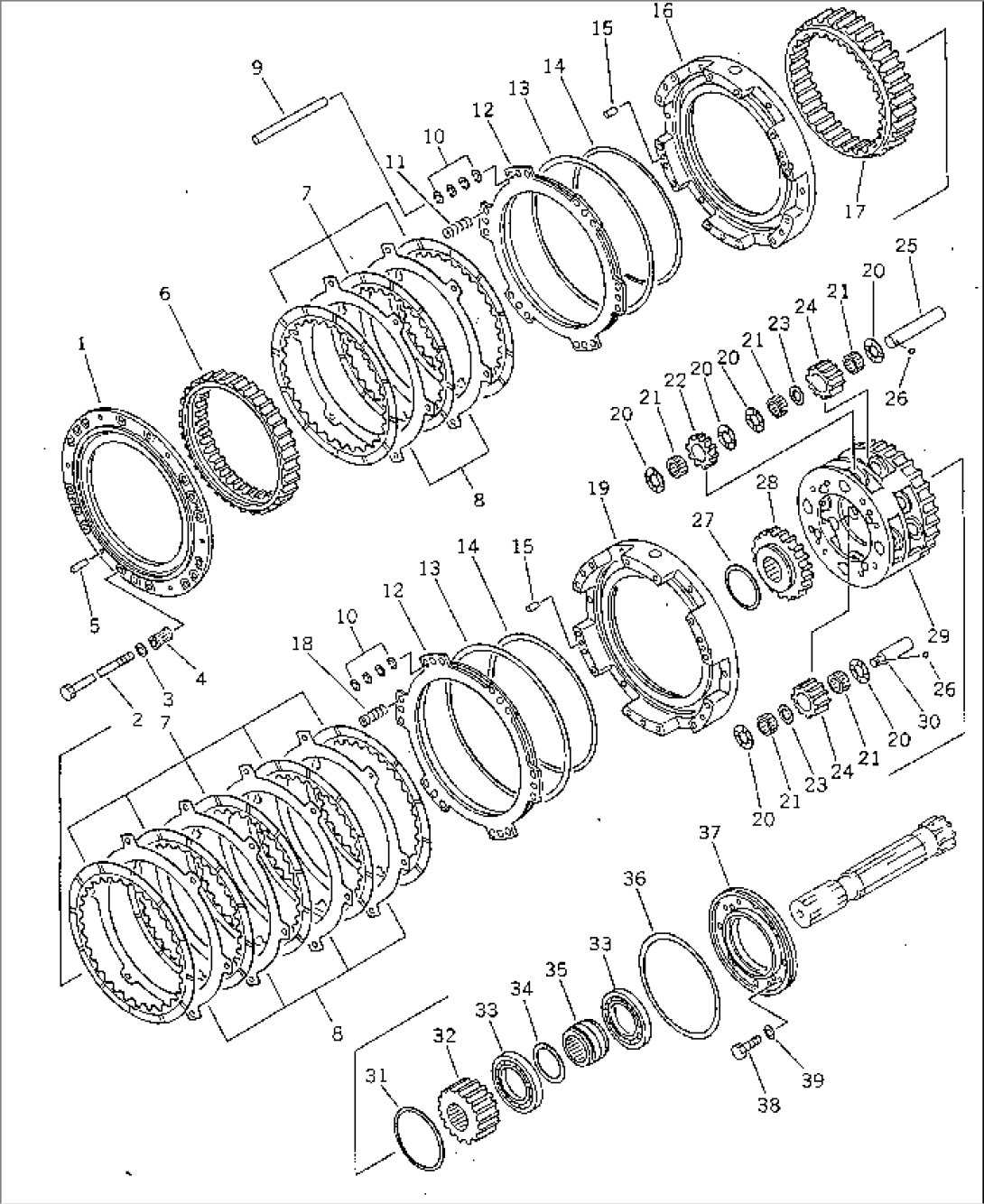

| 1 | 569-15-31161 | HOUSING | 2001- | |
| 2 | 175-15-41292 | BOLT | 2001- | |
| 3 | 01643-31445 | WASHER | 2001- | |
| 4 | 569-15-41310 | SLEEVE | (1431)- | |
| 4 | 09231-01430 | SLEEVE | 2001-(1430) | |
| 5 | 04020-01228 | PIN,DOWEL | 2001- | |
| 6 | 569-15-32641 | GEAR,RING | 2001- | |
| 7 | 569-15-32811 | DISK | (1402)- | |
| 7 | 569-15-32810 | DISK | 2001-(1401) | |
| 8 | 569-15-32821 | PLATE | (1605)- | |
| 8 | 569-15-32820 | PLATE | 2001-(1604) | |
| 9 | 232-15-11270 | PIN | 2001- | |
| 10 | 175-15-42880 | SPRING | 2001- | |
| 11 | 234-15-15230 | SPRING, (L= 52.0) | 2001- | |
| 12 | 569-15-32770 | PISTON | 2001- | |
| 13 | 562-15-19241 | RING,SEAL (K4) | 2001- | |
| 14 | 568-15-12840 | RING,SEAL (K4) | 2001- | |
| 15 | 04020-01434 | PIN,DOWEL | 2001- | |
| 16 | 569-15-31151 | HOUSING | 2001- | |
| 17 | 569-15-32631 | GEAR,RING | 2001- | |
| 18 | 195-15-12850 | SPRING | 2001- | |
| 19 | 569-15-31141 | HOUSING | 2001- | |
| 20 | 569-15-32580 | WASHER | 2001- | |
| 21 | 569-15-39410 | BEARING | 2001- | |
| 22 | 569-15-32421 | GEAR | 2001- | |
| 23 | 569-15-32490 | COLLAR | 2001- | |
| 24 | 569-15-32431 | GEAR | 2001- | |
| 25 | 569-15-32521 | SHAFT | 2001- | |
| 26 | 04260-00635 | BALL | 2001- | |
| 27 | 07018-11205 | RING,SEAL | 2001- | |
| 28 | 569-15-32232 | GEAR | 2001- | |
| 29 | 569-15-32331 | CARRIER | 2001- | |
| 30 | 569-15-32531 | SHAFT | 2001- | |
| 31 | 569-15-39270 | RING,SEAL | 2001- | |
| 32 | 569-15-32241 | GEAR | 2001- | |
| 33 | 569-15-39620 | BEARING | 2001- | |
| 34 | 569-15-39520 | RING,SNAP | 2001- | |
| 35 | 569-15-32191 | SPACER | 2001- | |
| 36 | 569-15-39210 | RING,SEAL | 2001- | |
| 37 | 569-15-32392 | COVER | 2001- | |
| 38 | 01010-51030 | BOLT | 2001- | |
| 39 | 01643-31032 | WASHER | 2001- |
