| Item | Part No. | Part Name | Qty | Serial No. |
| (567-15-00023) | TORQFLOW ASS'Y | (1842)- | ||
| \0\567-15-00022 | TORQFLOW ASS'Y | 1505-(1841) | ||
| \0\567-15-00021 | TORQFLOW ASS'Y | 1483-1504 | ||
| (567-15-00022) | TORQFLOW ASS'Y | 1480-1482 | ||
| \0\567-15-00021 | TORQFLOW ASS'Y | 1003-1479 | ||

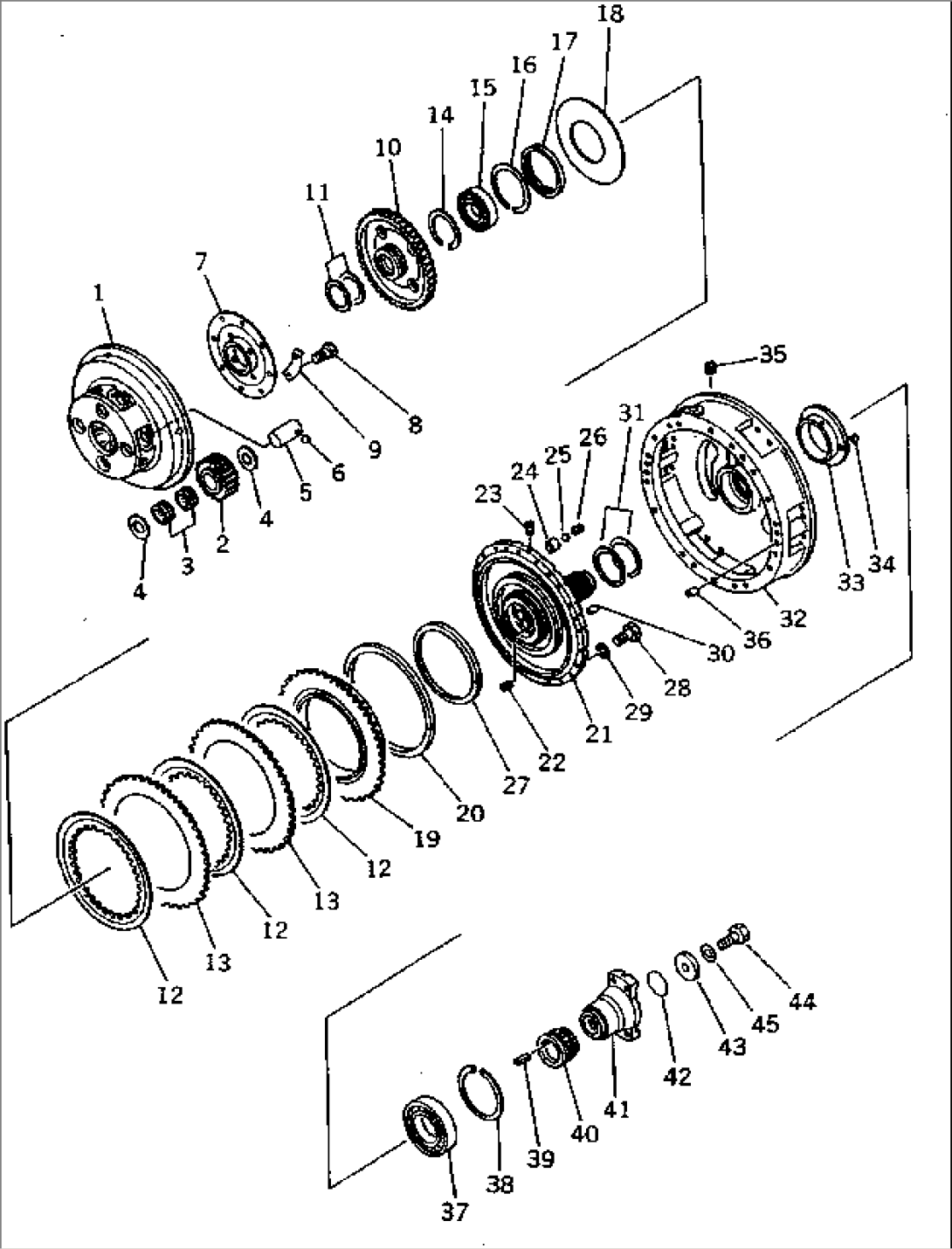

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2401 TO 2431 | ||||
| (567-15-00103) | TRANSMISSION ASS'Y | 1505-(1550) | ||
| (567-15-00102) | TRANSMISSION ASS'Y | 1483-1504 | ||
| (567-15-00103) | TRANSMISSION ASS'Y | 1480-1482 | ||
| (567-15-00102) | TRANSMISSION ASS'Y | 1003-1479 | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2401 TO 2415 | ||||
| 1 | 281-15-12362 | CARRIER | 1003- | |
| 2 | 281-15-12451 | GEAR | 1003- | |
| 3 | 566-15-19120 | BEARING | 1003- | |
| 4 | 09233-14520 | WASHER,THRUST | (1536)- | |
| 4 | \0\566-15-12554 | WASHER,THRUST | 1003-(1535) | |
| 5 | 281-15-12542 | SHAFT | 1003- | |
| 6 | 04260-00635 | BALL,STEEL | 1003- | |
| 7 | 281-15-12371 | COVER | 1003- | |
| 8 | 01010-50816 | BOLT | 1003- | |
| 9 | 281-15-12290 | LOCK (K28) | 1003- | |
| 10 | 281-15-12270 | GEAR | 1003- | |
| 11 | 281-15-12830 | RING,SEAL | 1003- | |
| 12 | 582-15-12811 | DISC,CLUTCH | 1003- | |
| 13 | 234-15-12720 | PLATE | 1003- | |
| 14 | 130-09-15740 | RING,SNAP | 1003- | |
| 15 | 06000-06014 | BEARING | 1003- | |
| 16 | 281-15-12940 | RING,SNAP | 1003- | |
| 17 | 281-15-12950 | RING | 1003- | |
| 18 | 281-15-12880 | SPRING | 1003- | |
| 19 | 567-15-12740 | PISTON | 1003- | |
| 20 | 144-15-22881 | RING | 1003- | |
| 567-15-00182 | SHAFT ASS'Y | 1003- | ||
| 21 | \6\ | SHAFT | (2138)- | |
| 21 | \6\ | SHAFT | 1003-(2137) | |
| 22 | \6\ | PLUG | (2138)- | |
| 22 | \6\ | PLUG | 1003-(2137) | |
| 23 | \6\ | SCREW | (2138)- | |
| 23 | \6\ | SCREW | 1003-(2137) | |
| 281-15-12930 | CHECK VALVE ASS'Y | 1003- | ||
| 24 | \6\ | PLUG | 1003- | |
| 25 | \6\ | BALL | 1003- | |
| 26 | \6\ | SCREW | 1003- | |
| 27 | 567-15-12830 | RING,SEAL | 1003- | |
| 28 | 01010-51030 | BOLT | 1003- | |
| 29 | 01602-21030 | WASHER,SPRING | 1003- | |
| 30 | 04020-01228 | PIN,DOWEL | 1003- | |
| 31 | 07018-21054 | RING,SEAL | .- | |
| 31 | \0\567-15-12810 | RING,SEAL | 1003-. | |
| 567-15-00121 | HOUSING ASS'Y | 1003- | ||
| 32 | \6\ | HOUSING | 1003- | |
| 33 | 567-15-11240 | BUSHING | 1003- | |
| 34 | 234-15-12810 | PIN | .- | |
| 34 | \0\281-15-11250 | PIN | 1003-. | |
| 35 | 234-15-12780 | SCREW | 1003- | |
| 36 | 04020-01434 | PIN,DOWEL | 1003- | |
| 37 | 06002-00217 | BEARING | 1003- | |
| 38 | 130-09-15820 | RING,SNAP | 1003- | |
| 39 | 04000-00420 | KEY | 1003- | |
| 40 | 567-15-13413 | WORM,GEAR | 1505- | |
| 40 | 567-15-13412 | WORM,GEAR | 1483-1504 | |
| 40 | 567-15-13413 | WORM,GEAR | 1480-1482 | |
| 40 | 567-15-13412 | WORM,GEAR | 1003-1479 | |
| 41 | 567-15-13351 | COUPLING | 1003- | |
| 42 | 07000-75065 | O-RING (K28) | 1003- | |
| 43 | 567-15-13622 | HOLDER | 1003- | |
| 44 | 01051-52010 | BOLT | 1003- | |
| 45 | 01643-32060 | WASHER | 1003- |
