| Item | Part No. | Part Name | Qty | Serial No. |

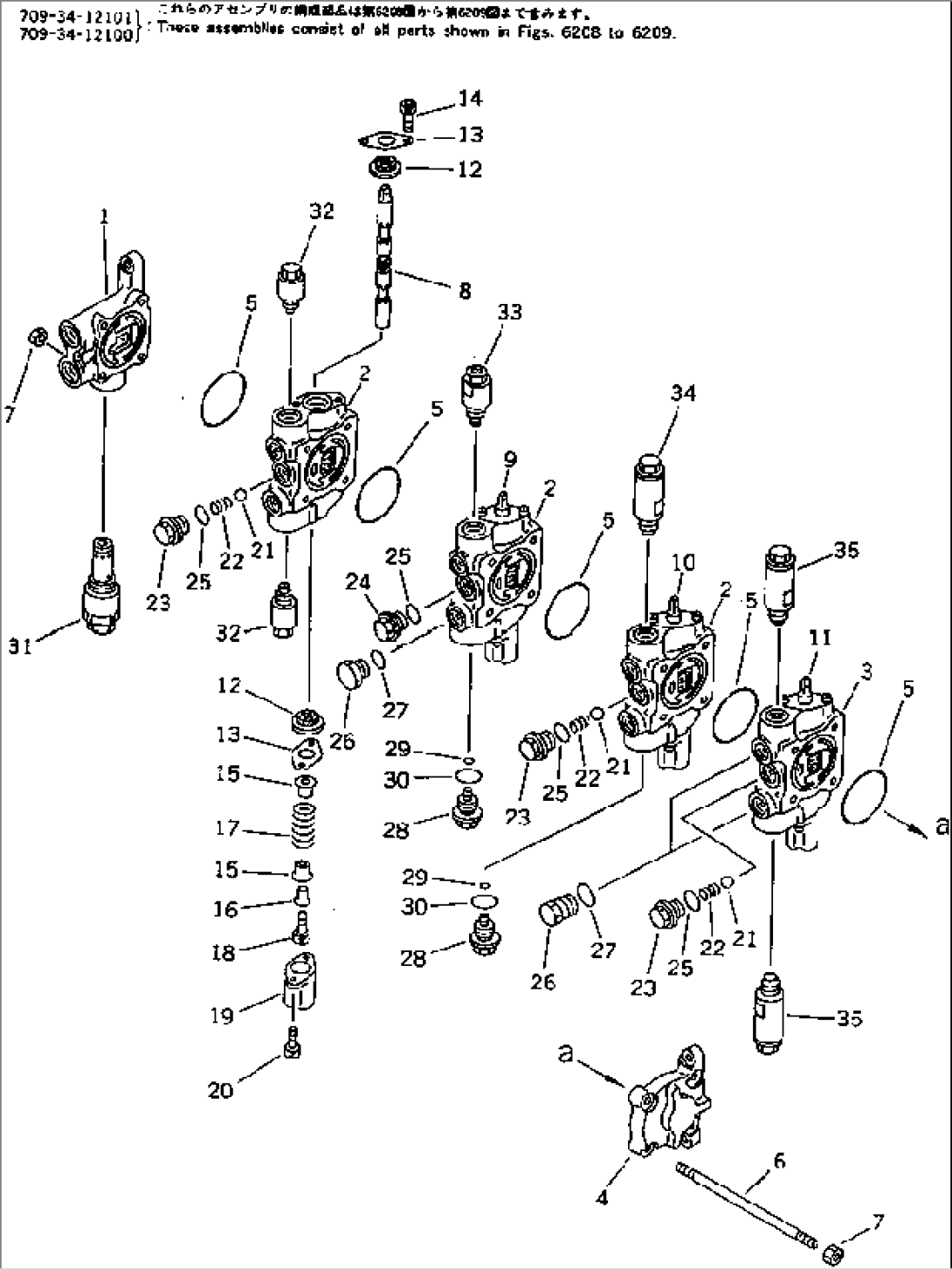

| 709-34-12101 | VALVE ASS'Y | 24001- | ||
| (\2\709-34-12100) | VALVE ASS'Y | (24001-28487) | ||
| 1 | \6\ | BLOCK | 24001- | |
| 2 | \6\ | BLOCK | 24001- | |
| 3 | \6\ | BLOCK | 24001- | |
| 4 | \6\ | COVER | 24001- | |
| 5 | 07000-12055 | O-RING | 24001- | |
| 6 | 700-25-11210 | STUD | 24001- | |
| 7 | 01580-10806 | NUT | 24001- | |
| 8 | \6\ | SPOOL,SWING | 24001- | |
| 9 | \6\ | SPOOL,TRAVEL SPEED | 24001- | |
| 10 | \6\ | SPOOL,BLADE | 24001- | |
| 11 | \6\ | SPOOL,ATTACHMENT | 24001- | |
| 12 | 709-32-11530 | SEAL,DUST | 24001- | |
| 13 | 709-32-11540 | PLATE | 24001- | |
| 14 | 01252-30610 | BOLT | 24001- | |
| 15 | 709-32-11550 | RETAINER | 24001- | |
| 16 | 709-32-11560 | COLLAR | 24001- | |
| 17 | 709-32-11580 | SPRING | 24001- | |
| 18 | 01252-30620 | BOLT | 24001- | |
| 19 | 709-32-11570 | COVER | 24001- | |
| 20 | 01252-30616 | BOLT | 24001- | |
| 21 | 04260-01270 | BALL | 24001- | |
| 22 | 709-32-11820 | SPRING | 24001- | |
| 23 | 709-32-11810 | PLUG | 24001- | |
| 24 | 709-32-11930 | PLUG | 24001- | |
| 25 | 07002-11823 | O-RING | 24001- | |
| 26 | 07040-11812 | PLUG | 24001- | |
| 27 | 07002-11823 | O-RING | 24001- | |
| 28 | 709-32-11830 | PLUG | 24001- | |
| 29 | 709-32-11840 | O-RING | 24001- | |
| 30 | 07002-02034 | O-RING | 24001- | |
| 31 | 700-28-56000 | RELIEF VALVE ASS'Y | 24001- | |
| 32 | 709-30-61100 | VALVE ASS'Y | 24001- | |
| 33 | 709-30-65703 | VALVE ASS'Y | .- | |
| 709-30-65702 | VALVE ASS'Y | 24001-. | ||
| 34 | 709-30-64101 | VALVE ASS'Y | 24001- | |
| (\2\709-30-63800) | VALVE ASS'Y | (24001-28487) | ||
| 35 | 709-30-64500 | VALVE ASS'Y | 24001- | |
| (\2\709-30-62400) | VALVE ASS'Y | (24001-28487) |
