| Item | Part No. | Part Name | Qty | Serial No. |
| SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO. | ||||
| (561-15-00503) | TRANSMISSION ASS'Y | (1850)- | ||
| (561-15-00502) | TRANSMISSION ASS'Y | (1322)-(1849) | ||
| (561-15-00501) | TRANSMISSION ASS'Y | (1191)-(1321) | ||
| (561-15-00500) | TRANSMISSION ASS'Y | 1501-(1190) | ||

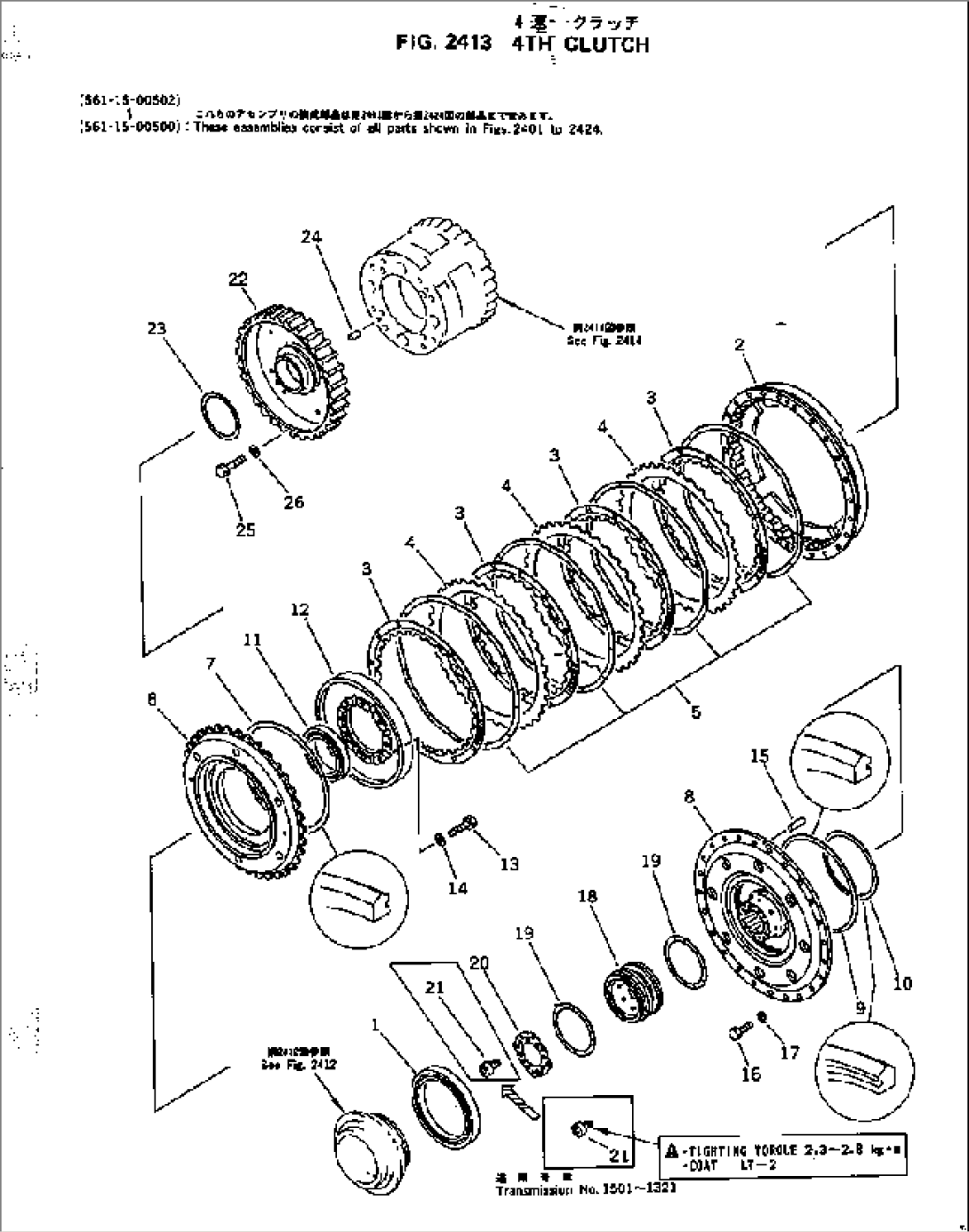

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2401 TO 2424. | ||||
| 1 | 569-15-39610 | BEARING | 1501- | |
| 2 | 561-15-42670 | DRUM | 1501- | |
| 3 | 561-15-42721 | DISC | 1501- | |
| (\2\561-15-42720) | DISC | (1501-(1299)) | ||
| 4 | 561-15-52960 | PLATE | (1362)- | |
| \1\561-15-42740 | PLATE | 1501-(1361) | ||
| 5 | 561-15-49810 | SPRING | 1501- | |
| 6 | 561-15-42780 | PISTON,4TH | 1501- | |
| 7 | 232-15-19210 | RING,SEAL (KIT) | 1501- | |
| 8 | 561-15-41190 | HOUSING,4TH | 1501- | |
| 9 | 232-15-19270 | RING,SEAL (KIT) | 1501- | |
| 10 | 232-15-19220 | RING,SEAL (KIT) | 1501- | |
| 11 | 569-15-39630 | BEARING | 1501- | |
| 12 | 561-15-42370 | COVER | 1501- | |
| 13 | 01010-51030 | BOLT | 1501- | |
| 14 | 01643-31032 | WASHER | 1501- | |
| 15 | 04020-01228 | PIN,DOWEL | 1501- | |
| 16 | 01010-51230 | BOLT | 1501- | |
| 17 | 01643-31232 | WASHER | 1501- | |
| 18 | 569-15-31220 | COLLAR | 1501- | |
| 19 | 423-15-19210 | RING,SEAL | 1501- | |
| 20 | 569-15-31240 | PLATE | 1501- | |
| 21 | 569-15-31251 | BOLT | 1501- | |
| (\2\569-15-31250) | BOLT | (1501-(1321)) | ||
| 22 | 561-15-42270 | HUB | 1501- | |
| 23 | 07018-11205 | RING,SEAL | 1501- | |
| 24 | 04020-01228 | PIN,DOWEL | 1501- | |
| 25 | 01010-51440 | BOLT | 1501- | |
| 26 | 01643-31445 | WASHER | 1501- |
