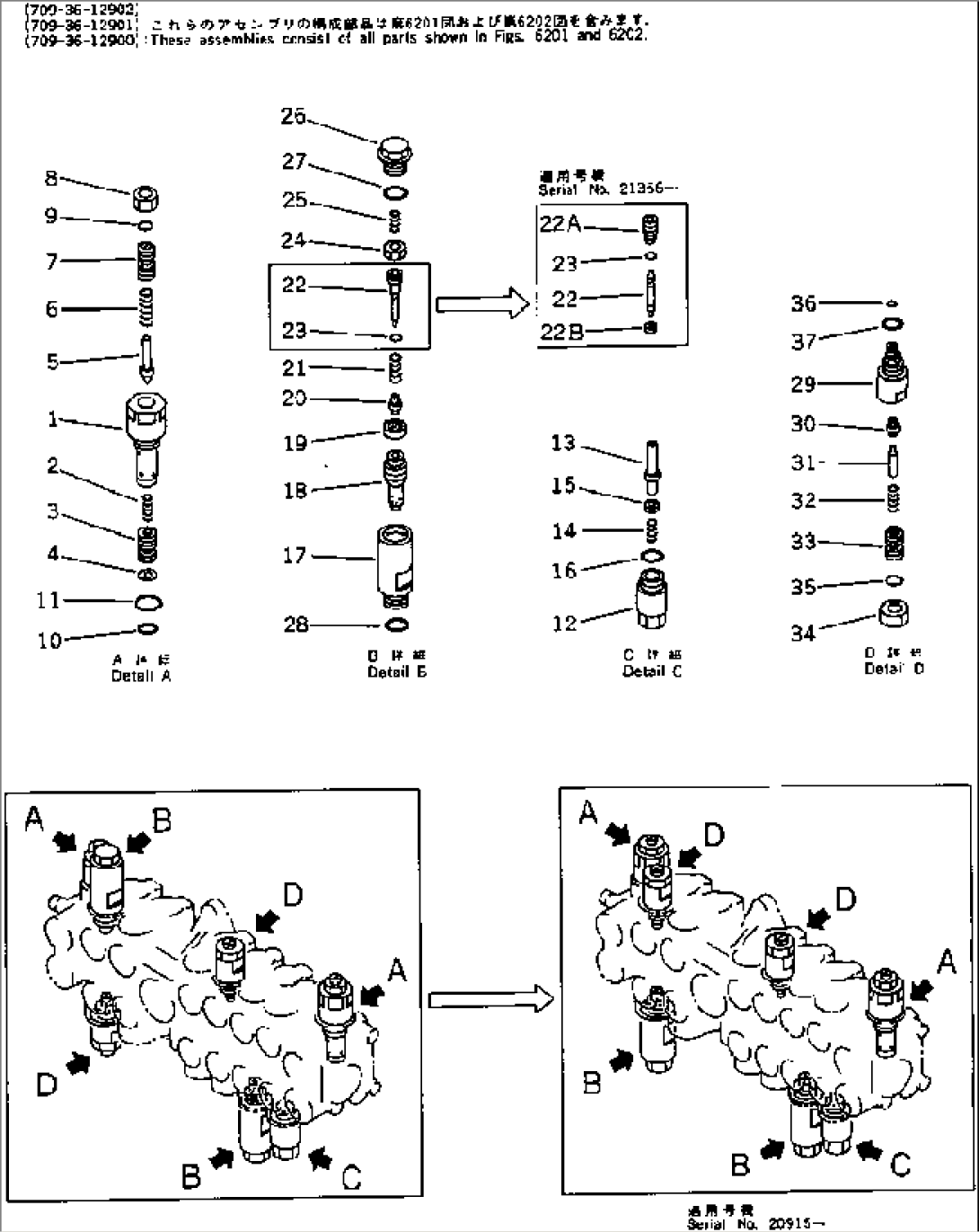

6-SPOOL CONTROL VALVE (2/2)

Item	Part No.	Part Name	Qty	Serial No.
	(709-36-12902)	VALVE ASS'Y		20001-
	(\2\709-36-12901)	VALVE ASS'Y		(20915-21355)
	(\2\709-36-12900)	VALVE ASS'Y		(20001-20914)
	700-22-51001	VALVE ASS'Y,MAIN RELIEF		20001-
1	\6\	SLEEVE		20001-
2	700-20-51430	SPRING		20001-
3	\6\	VALVE		20001-
4	700-20-51240	RING		20001-
5	700-80-61190	POPPET		20001-
6	700-20-51350	SPRING		20001-
7	700-20-51340	SCREW		20001-
8	01583-11408	NUT		20001-
9	07000-02011	O-RING		20001-
10	700-22-11410	O-RING		20001-
11	07002-02434	O-RING		20001-
	709-30-61100	VALVE ASS'Y,SUCTION		20001-
12	709-30-61110	SLEEVE		20001-
13	\6\	VALVE		20001-
14	700-20-62170	SPRING		20001-
15	\6\	SEAL		20001-
16	07002-02034	O-RING		20001-
	709-30-62301	VALVE ASS'Y,SUCTION AND SAFETY		20001-
	(\2\709-30-62300)	VALVE ASS'Y,SUCTION AND SAFETY		(20001-21355)
17	709-30-62110	SLEEVE		20001-
18	\6\	VALVE		21356-
18	\6\	VALVE		20001-21355
19	\6\	SEAL		20001-
20	\6\	POPPET		21356-
20	\6\	POPPET		20001-21355
21	\6\	SPRING		20001-
22	\6\	PISTON		21356-
22	\6\	PISTON		20001-21355
22A	\6\	SCREW		21356-
22B	\6\	SEAL		21356-
23	\6\	O-RING		20001-
24	\6\	NUT		20001-
25	700-20-62170	SPRING		20001-
26	709-30-62150	PLUG		20001-
27	07002-12034	O-RING		20001-
28	07002-02034	O-RING		20001-
	709-30-65300	VALVE ASS'Y,SAFETY		20001-
29	\6\	SLEEVE		20001-
30	\6\	POPPET		21356-
30	\6\	POPPET		20001-21355
31	\6\	PISTON		20001-
32	\6\	SPRING		20001-
33	\6\	SCREW		20001-
34	\6\	NUT		20001-
35	\6\	O-RING		20001-
36	709-32-11840	O-RING		20001-
37	07002-02034	O-RING		20001-
