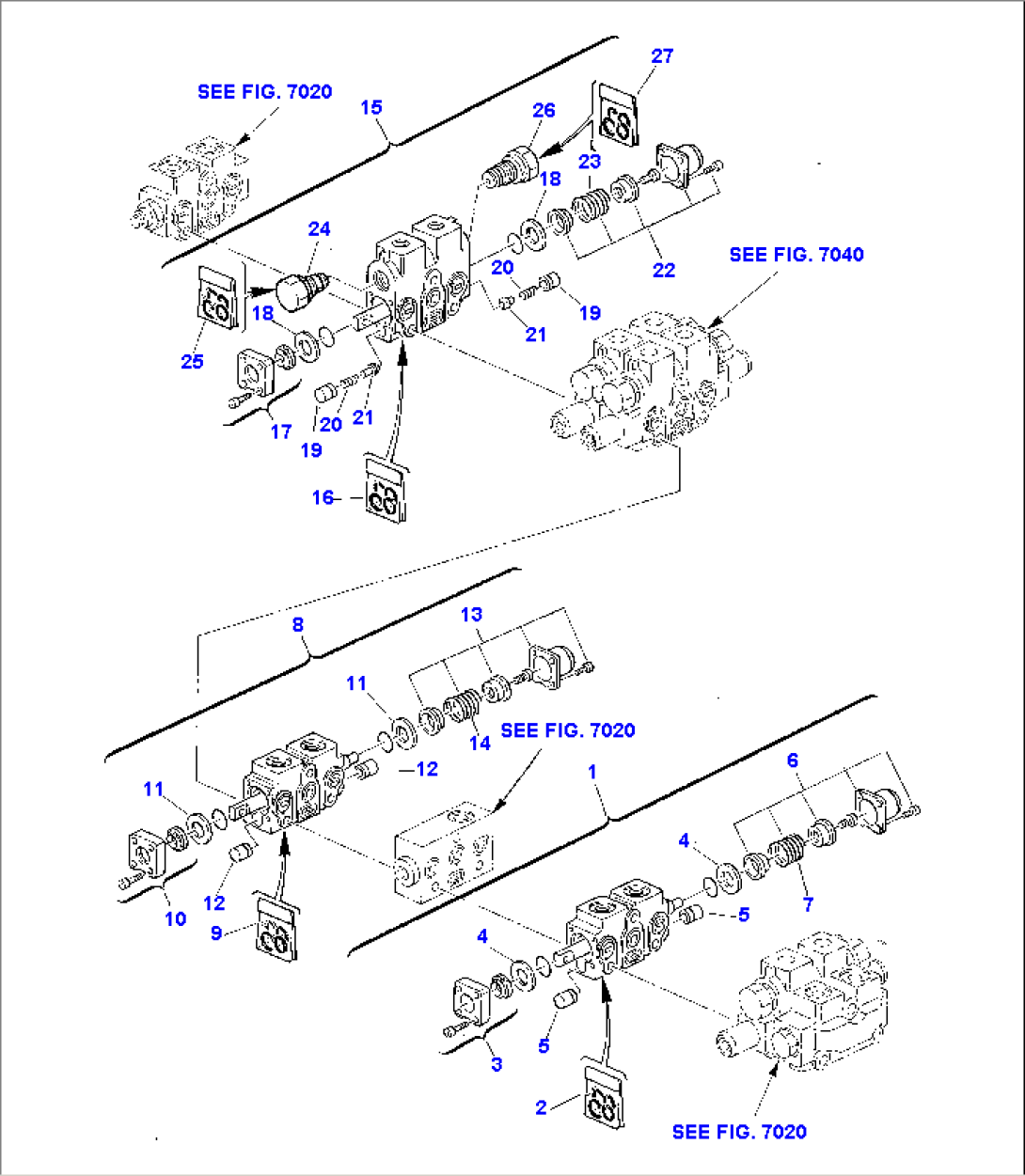

Item | Part No. | Part Name | Qty | Serial No. |
\0 | 844230008 | CONTROL VALVE, ASSY. | ||
1 | 844120219 | LEFT TRAVELING SECTION, ASSY. | ||
2 | 844120220 | KIT, GASKET | ||
3 | 844120222 | PLATE, ASSY. | ||
4 | 844120221 | WASHER | ||
5 | 844120212 | PLUG | ||
6 | 844120223 | SPOOL RETURN UNIT | ||
7 | 844120224 | SPRING | ||
8 | 844120225 | RIGHT TRAVELING SECTION, ASSY. | ||
9 | 844120220 | KIT, GASKET | ||
10 | 844120222 | PLATE, ASSY. | ||
11 | 844120221 | WASHER | ||
12 | 844120212 | PLUG | ||
13 | 844120223 | SPOOL RETURN UNIT | ||
14 | 844120224 | SPRING | ||
15 | 844120230 | ELEMENT, SWING | ||
16 | 844120220 | KIT, GASKET | ||
17 | 844120222 | PLATE, ASSY. | ||
18 | 844120221 | WASHER | ||
19 | 844120212 | PLUG | ||
20 | 844120213 | SPRING | ||
21 | 844120211 | VALVE | ||
22 | 844120231 | SPOOL RETURN UNIT | ||
23 | 844120224 | SPRING | ||
24 | 844120233 | A/C VALVE, ASSY. | ||
25 | 844120218 | KIT, GASKET | ||
26 | 844120217 | SAFETY AND SUCTION VALVE, ASSY. | ||
27 | 844120218 | KIT, GASKET | ||
SEE FIG. 7020 | ||||
SEE FIG. 7040 |
