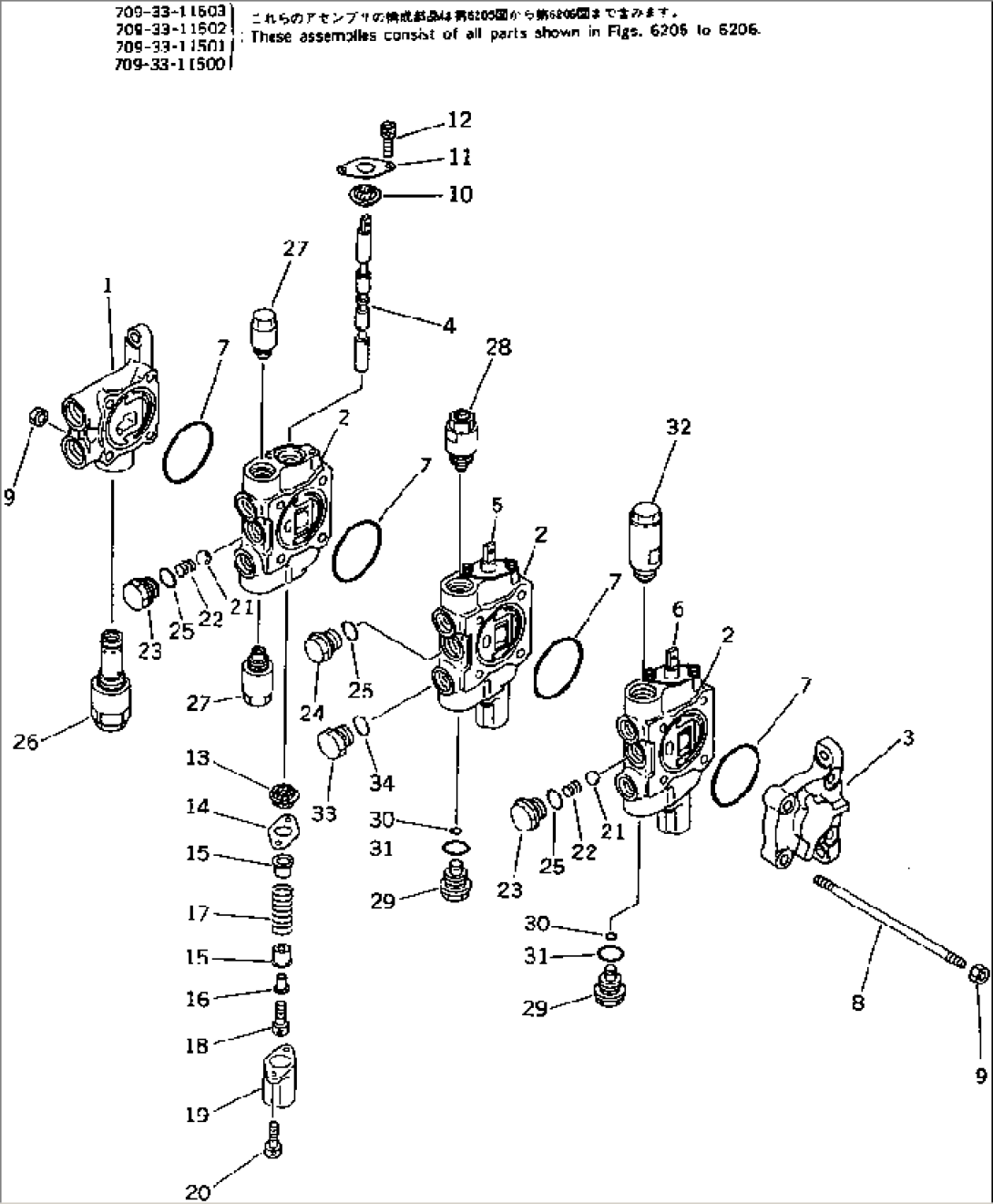

| Item | Part No. | Part Name | Qty | Serial No. |
| (709-36-12203) | VALVE ASS'Y | 24001- | ||
| (\2\709-36-12202) | VALVE ASS'Y | (26891-28487) | ||
| (\2\709-36-12201) | VALVE ASS'Y | (24229-26890) | ||
| (\2\709-36-12200) | VALVE ASS'Y | (24001-24228) | ||
| 709-30-63702 | VALVE ASS'Y | 24001- | ||
| (\2\709-30-63701) | VALVE ASS'Y | (26891-28487) | ||
| (\2\709-30-63700) | VALVE ASS'Y | (24001-26890) | ||
| 1 | 709-30-62110 | SLEEVE | 24001- | |
| 2 | \6\ | VALVE | 26891- | |
| \6\ | VALVE | 24001-26890 | ||
| 3 | \6\ | SEAL | 24001- | |
| 4 | \6\ | POPPET | 26891- | |
| \6\ | POPPET | 24001-26890 | ||
| 5 | \6\ | SPRING | 24001- | |
| \6\ | SPRING | 24001-28487 | ||
| 6 | \6\ | SEAL | 24001- | |
| 7 | \6\ | O-RING | 24001- | |
| 8 | \6\ | SCREW | 24001- | |
| 9 | \6\ | PISTON | 24001- | |
| 10 | \6\ | PISTON | 26891-28487 | |
| \6\ | PISTON | 24001-26890 | ||
| 11 | \6\ | NUT | 24001- | |
| 12 | 700-20-62170 | SPRING | 24001- | |
| 13 | 709-30-62150 | PLUG | 24001- | |
| 14 | 07002-12034 | O-RING | 24001- | |
| 15 | 07002-02034 | O-RING | 24001- | |
| 709-30-64500 | VALVE ASS'Y | 24001- | ||
| (\2\709-30-62400) | VALVE ASS'Y | (24001-28487) | ||
| 16 | 709-30-62110 | SLEEVE | 24001- | |
| 17 | \6\ | VALVE | 24001- | |
| \6\ | VALVE | 24001-28487 | ||
| 18 | \6\ | SEAL | 24001- | |
| 19 | \6\ | POPPET | 24001- | |
| \6\ | POPPET | 24001-28487 | ||
| 20 | \6\ | SPRING | 24001- | |
| 21 | \6\ | SCREW | 24001- | |
| 22 | \6\ | PISTON | 24001- | |
| 23 | \6\ | SEAL | 24001- | |
| 24 | \6\ | PISTON | .-.. | |
| \6\ | PISTON | 24001-. | ||
| 25 | \6\ | O-RING | 24001- | |
| 26 | \6\ | NUT | 24001- | |
| 27 | 700-20-62170 | SPRING | 24001- | |
| 28 | 709-30-62150 | PLUG | 24001- | |
| 29 | 07002-12034 | O-RING | 24001- | |
| 30 | 07002-02034 | O-RING | 24001- | |
| 709-30-61100 | VALVE ASS'Y,SUCTION | 24001- | ||
| 31 | 709-30-61110 | SLEEVE | 24001- | |
| 32 | \6\ | VALVE | 24001- | |
| 33 | 700-20-62170 | SPRING | 24001- | |
| 34 | \6\ | SEAL | 24001- | |
| 35 | 07002-02034 | O-RING | 24001- |
